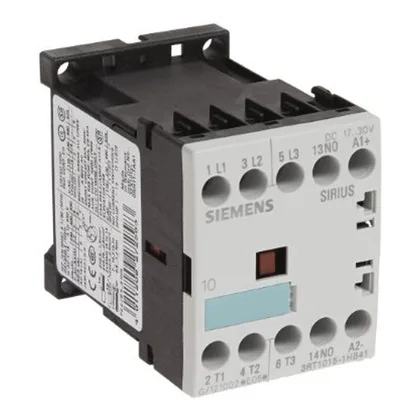

Siemens SIRIUS 3RT1016-1JB42 power contactor, size S00, 24 V DC coil with diode suppression, screw terminals, 45 mm width.
| Parameter | Value |
|---|---|
| Contactor frame size | S00 |
| Parameter | Value |
|---|---|
| Rated operational current, AC-12, max. | 10 A |
| Rated operational current, AC-4 @ 400 V | 8.5 A |
| Rated value @ 400 V | 3 A |
| Rated value @ 500 V | 4.5 kW |
| Rated value @ 690 V | 5.5 kW |
| Rated value @ 230 V | 6 A |
| Rated value @ 24 V | 10 A |
| Rated value @ 60 V | 2 A |
| Rated value @ 110 V | 1 A |
| Rated value @ 220 V | 0.3 A |
| Parameter | Value |
|---|---|
| Control supply voltage type | DC |
| Parameter | Value |
|---|---|
| Main poles | 3 |
| Main NO contacts | 3 |
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
| Parameter | Value |
|---|---|
| Short-circuit coordination type 1, fuse | fuse gL/gG: 35 A |
| Short-circuit coordination type 2, fuse | fuse gL/gG: 20 A |
| Aux. switch short-circuit protection, fuse | fuse gL/gG: 10 A |
| Parameter | Value |
|---|---|
| Main circuit connection | screw-type terminals |
| Aux. / control circuit connection | screw-type terminals |
| Conductor cross-section, solid | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²) |
| Conductor cross-section, solid or stranded | 2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), max. 2x (0,75 ... 4 mm²) |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Mounting method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| Side-by-side mounting | Yes |
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 30 000 000 |
| Parameter | Value |
|---|---|
| Installation altitude, max. | 2 000 m |
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 57.5 mm |
| Depth | 72 mm |
The 3RT1016-1JB42: Wire range covers AWG 20–14 for main and auxiliary contacts, with a single 12 AWG possible on each connection. Screw terminals are the same on both power and control sides; no extra adapter needed for the coil circuit.
Auxiliary contact assignment is not factory-fixed — the contactor accepts field-installed side-mount blocks (not included). Pollution degree 3 for industrial environments; operating ambient -25 to +60 °C.
72 mm. The width is 45 mm and height is 57.5 mm, matching the S00 frame footprint.
The screw terminals accept 2x (0.5...1.5 mm²) solid, 2x (0.75...2.5 mm²) stranded, and up to 2x (0.75...4 mm²) maximum. For AWG, that is 2x (20...16) and 2x (18...14), plus a single 12 AWG.
