Siemens 3RT1016-2BB41 — Contactors

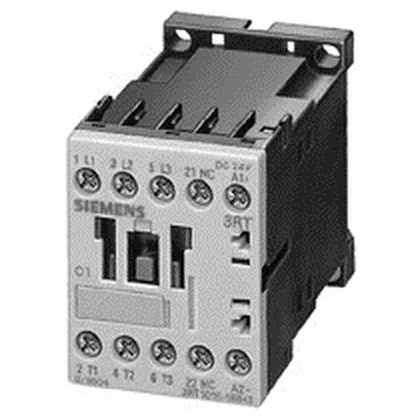

Siemens 3RT1016-2BB41 SIRIUS Power Contactor, 24 VDC Coil, 1

MPN3RT1016-2BB41

Siemens SIRIUS power contactor, 3RT1016-2BB41, size S00, 24 VDC coil, 10 A rated operational current, spring-loaded terminals.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT1016-2BB41 — Identification
ParameterValue
Contactor frame sizeS00
3RT1016-2BB41 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V8.5 A
Rated value @ 400 V3 A
Rated value @ 500 V4.5 kW
Rated value @ 690 V5.5 kW
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT1016-2BB41 — Control & Coil
ParameterValue
Control supply voltage typeDC
3RT1016-2BB41 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT1016-2BB41 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusefuse gL/gG: 35 A
Short-circuit coordination type 2, fusefuse gL/gG: 20 A
Aux. switch short-circuit protection, fusefuse gL/gG: 10 A
3RT1016-2BB41 — Connection & Mounting
ParameterValue
Main circuit connectionspring-loaded terminals
Aux. / control circuit connectionspring-loaded terminals
Conductor cross-section, solid2x (0.25 ... 2.5 mm²)
Conductor cross-section, solid or stranded2x (0,25 ... 2,5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.25 ... 1.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
Side-by-side mountingYes
3RT1016-2BB41 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT1016-2BB41 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Installation altitude, max.2 000 m
3RT1016-2BB41 — Mechanical
ParameterValue
Width45 mm
Height60 mm
Depth73 mm

Product details

Its rated operational current at AC-12 is 10 A, and it delivers 4 kW at AC-2 / 400 V. The contactor uses spring-loaded terminals for both the main current circuit and the auxiliary/control circuit, which speeds wiring and reduces the risk of loose connections under vibration. The coil pickup voltage is 0.85 x rated value (20.4 V), and dropout is 1.1 x rated value (26.4 V). Holding power at DC is 3.3 W, so the coil stays cool in continuous duty.

Its footprint is 45 mm wide, 60 mm high, and 73 mm deep.

Switching capacity and coordination

At AC-4 (inching/plugging duty) at 400 V, the rated operational current is 8.5 A. For type of coordination 2 (no welding after a short circuit), the required backup fuse is gL/gG 20 A; for type 1 (welding permitted), use a 35 A gL/gG fuse.

Frequently asked questions

What is the closest functional second-source to the 3RT1016-2BB41?

The 3RT1015-1BB42 is a close functional peer within the same SIRIUS S00 family. Both share the 24 V DC coil and spring-loaded terminal design, but the 3RT1016-2BB41 carries a higher AC-12 rated current of 10 A versus the 3RT1015-1BB42's lower rating. Verify the motor current and duty cycle before substituting — the 3RT1016-2BB41 is the higher-rated unit and will drop into the same DIN-rail footprint without rewiring.

What is the depth of the 3RT1016-2BB41?

The depth is 73 mm, with a width of 45 mm and a height of 60 mm. This fits the standard S00 footprint for DIN-rail mounting.

What compliance documentation does Siemens provide for the 3RT1016-2BB41?

The part has a substance prohibitance date of 01.07.2006, indicating RoHS compliance per EU directive 2002/95/EC. Siemens typically provides RoHS, REACH, UL, and IEC declarations with the shipment. The IEC 81346-2 reference code is Q, which classifies it as a power switching device.

MPN
3RT1016-2BB41
