Siemens 3RT1026-1AK60 — Contactors

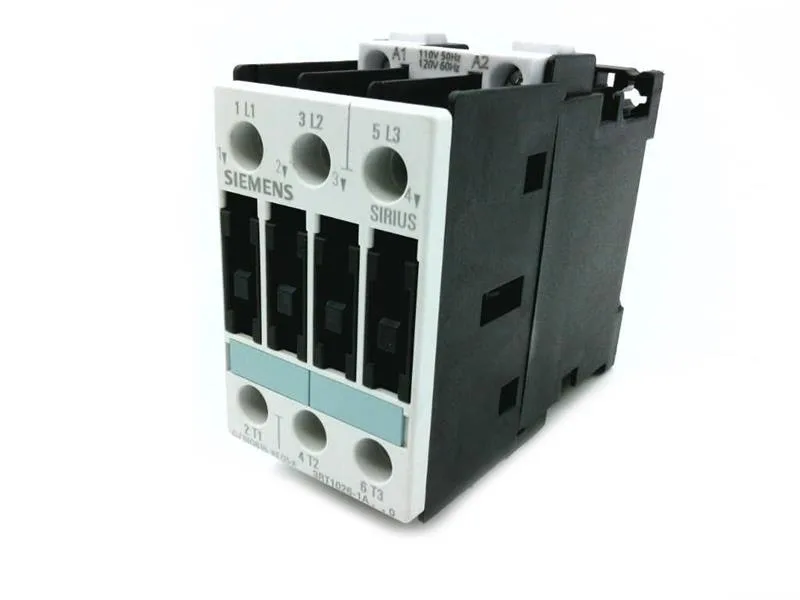

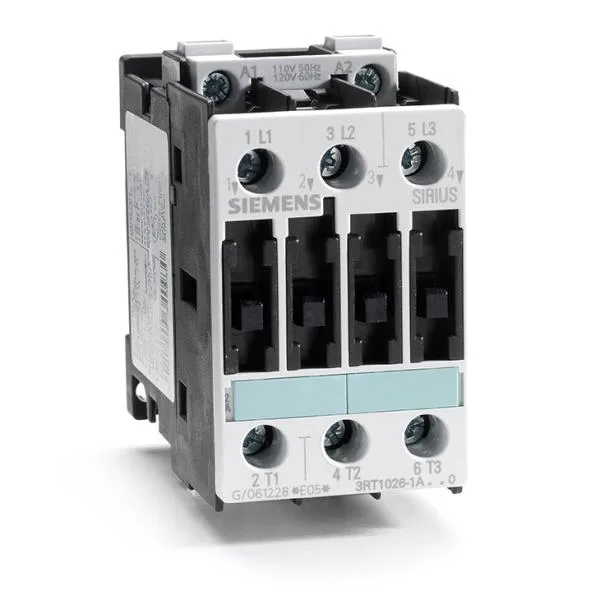

Siemens 3RT1026-1AK60 SIRIUS Power Contactor, S0, 11 kW at 5

MPN3RT1026-1AK60

Siemens SIRIUS, power contactor, S0 size, 3RT1026-1AK60, 11 kW at 500 V AC-3, screw terminals, DIN rail mount, IP20 front.

$781.32Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT1026-1AK60 — Identification
ParameterValue
Contactor frame sizeS0
3RT1026-1AK60 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V15.5 A
Rated value @ 400 V3 A
Rated value @ 500 V11 kW
Rated value @ 690 V11 kW
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT1026-1AK60 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.8 ... 1.1
Rated value @ 50 Hz110 V
3RT1026-1AK60 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT1026-1AK60 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusefuse gL/gG: 100 A
Short-circuit coordination type 2, fusefuse gL/gG: 35 A
Aux. switch short-circuit protection, fusefuse gL/gG: 10 A
3RT1026-1AK60 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²)
Conductor cross-section, solid or stranded2x (1 ... 2,5 mm²), 2x (2,5 ... 6 mm²), max. 2x 10 mm²
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
Side-by-side mountingYes
3RT1026-1AK60 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT1026-1AK60 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Installation altitude, max.2 000 m
3RT1026-1AK60 — Mechanical
ParameterValue
Width45 mm
Height85 mm
Depth91 mm

Product details

It's rated for 11 kW at 500 V and 11 kW at 690 V in AC-3 duty, and handles 15.5 A in AC-4 (reversing/inching) service. Screw terminals on both the main and auxiliary/control circuits — field-serviceable, no special crimp tool required.

RoHS compliance date is 01.07.2006, so it meets the EU substance restrictions that matter for CE-marked panels.

For type 1 coordination (no downstream damage on a short), the upstream fuse can be 100 A gL/gG; for type 2 (contactor must still function after clearing), it's 35 A gL/gG. That's the selectivity headroom you need for a coordinated panel.

Frequently asked questions

What is the 3RT1026-1AK60 used for?

It's a power contactor for switching three-phase induction motors in industrial control panels — conveyors, pumps, fans, compressors — up to 11 kW at 500 V or 690 V AC-3.

Where can I buy the 3RT1026-1AK60?

Sourced and quoted to order through independent industrial-automation distribution. Submit an RFQ for current availability and pricing.

Will the 3RT1026-1AK60 drop into a panel wired for the 3RT1026-1AB00?

Both are S0 frame, same footprint and screw-terminal layout, so the mechanical fit and wiring pattern are identical. The difference is in the coil voltage — the -1AK60 uses a different control voltage than the -1AB00. Verify your control circuit voltage before swapping.

What compliance documentation does this contactor carry?

RoHS compliant as of 01.07.2006, pollution degree 3 per IEC 60947, and designed to IEC 60947-4-1 for contactors and motor starters.
