Siemens 3RT1026-1BB40-0UA0 — Contactors

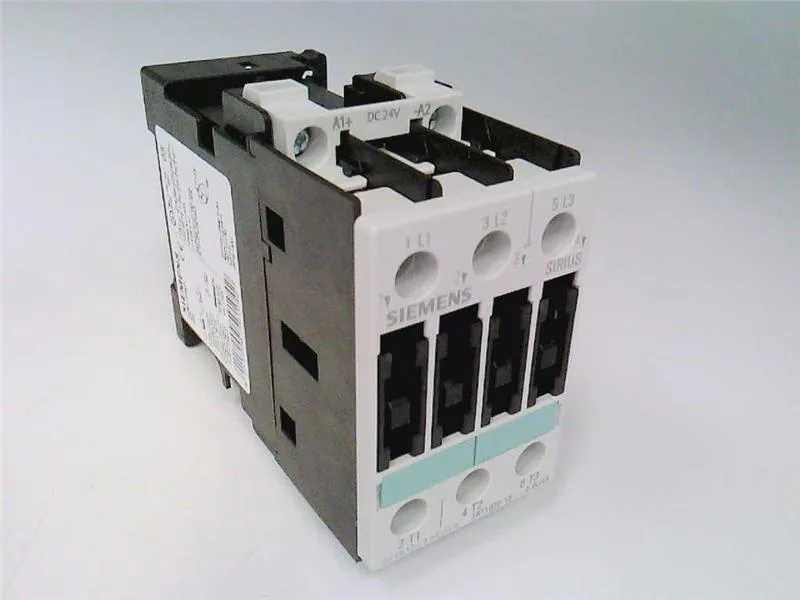

Siemens 3RT1026-1BB40-0UA0 SIRIUS S0 Power Contactor, 24 VDC

MPN3RT1026-1BB40-0UA0

Siemens SIRIUS S0 power contactor, 3RT1026-1BB40-0UA0, 24 VDC coil, 11 kW at 400 V AC-2, 15.5 A at 400 V AC-4, screw terminals, IP20 front, DIN rail mount.

$172.82Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT1026-1BB40-0UA0 — Identification
ParameterValue
Contactor frame sizeS0
3RT1026-1BB40-0UA0 — Ratings & Performance
ParameterValue
Rated operational current, AC-4 @ 400 V15.5 A
Rated value @ 400 V3 A
Rated value @ 500 V11 kW
Rated value @ 690 V11 kW
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT1026-1BB40-0UA0 — Control & Coil
ParameterValue
Control supply voltage typeDC
3RT1026-1BB40-0UA0 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT1026-1BB40-0UA0 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusefuse gL/gG: 100 A
Short-circuit coordination type 2, fusefuse gL/gG: 35 A
Aux. switch short-circuit protection, fusefuse gL/gG: 10 A
3RT1026-1BB40-0UA0 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Conductor cross-section, solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Side-by-side mountingYes
3RT1026-1BB40-0UA0 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT1026-1BB40-0UA0 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
3RT1026-1BB40-0UA0 — Mechanical
ParameterValue
Width45 mm
Height85 mm
Depth101 mm

Product details

The Siemens 3RT1026-1BB40-0UA0 is a SIRIUS S0-frame power contactor rated for 11 kW at 400 V in AC-2 duty — the category for slip-ring motor starting and reversing. That 11 kW at 400 V is the rating that governs the motor load it can handle; the AC-4 rating of 15.5 A at 400 V covers plugging and inching duty where the contactor makes and breaks the motor current at full load.

Integration notes

Screw-type terminals on the main circuit accept 2x (0.75... 4 mm²) solid or 2x (1... 2.5 mm²) stranded, with a maximum of 2x 10 mm². The auxiliary contact block at the front carries 10 A at 24 V, 6 A at 230 V, and 3 A at 400 V — enough for a PLC input or a pilot light. That gives the panel builder flexibility — a 35 A fuse keeps the contactor reusable after a fault; a 100 A fuse saves panel space but accepts a sacrificial contactor.

Environmental limits

Frequently asked questions

What is the listed depth of this contactor?

The depth is 101 mm. Combined with the 45 mm width and 85 mm height, it fits the standard S0 panel cutout.

What wire sizes does the main circuit accept?

Solid: 2x (0.5... 1.5 mm²), 2x (0.75... 2.5 mm²), max. 2x (0.75... 4 mm²). Stranded: 2x (1... 2.5 mm²), 2x (2.5... 6 mm²), max. 2x 10 mm². AWG equivalents are 2x (16... 12), 2x (14... 10), 1x 8.

Will 3RT1026-1BB40-0UA0 drop into a panel specified around 3RT1015-1BB42 without rewiring?

No. The 3RT1026-1BB40-0UA0 is an S0 frame (45 mm wide) while the 3RT1015-1BB42 is an S00 frame (22.5 mm wide). The wider footprint means the DIN rail position and terminal locations differ, and the terminal wire ranges are not identical. Panel rework is required.

What compliance documentation is available for this part?

The reference code per DIN EN 81346-2 is Q, which is the standard designation for switching devices. The part carries the SIRIUS brand and is designed for IEC/EN 60947-4-1 compliance as a power contactor. Specific RoHS/REACH/UL declarations should be requested with the RFQ, as they are not listed in the base spec.
