Siemens 3RT1036-1AG60 — Contactors

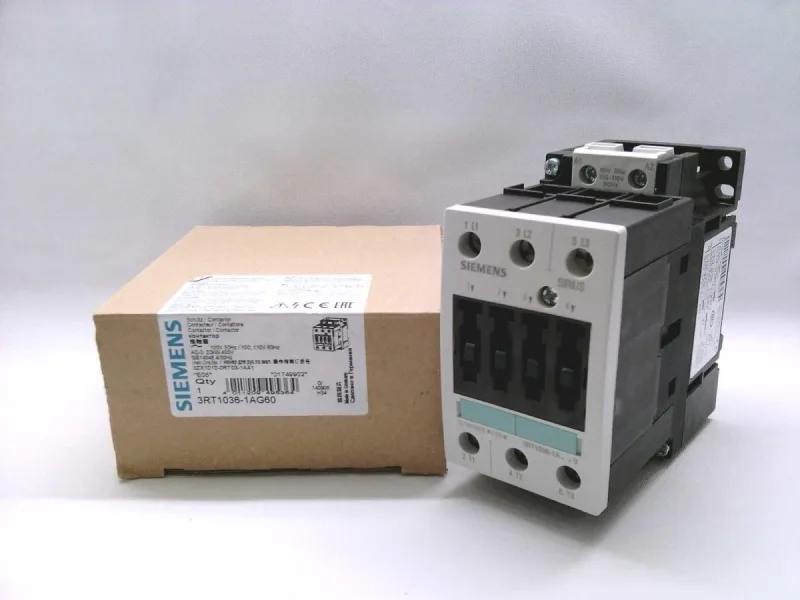

Siemens 3RT1036-1AG60 SIRIUS Power Contactor, S2, 22 kW AC-2

MPN3RT1036-1AG60

Siemens SIRIUS power contactor, size S2, order code 3RT1036-1AG60, 22 kW at AC-2 400 V, screw-type terminals, IP20 front, snap-on DIN rail mounting.

$360.05Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT1036-1AG60 — Identification
ParameterValue
Contactor frame sizeS2
3RT1036-1AG60 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V41 A
Rated value @ 400 V3 A
Rated value @ 500 V30 kW
Rated value @ 690 V11.4 kW
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT1036-1AG60 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.8 ... 1.1
Rated value @ 50 Hz100 V
3RT1036-1AG60 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT1036-1AG60 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusefuse gL/gG: 160 A
Short-circuit coordination type 2, fusefuse gL/gG: 80 A
Aux. switch short-circuit protection, fusefuse gL/gG: 10 A
3RT1036-1AG60 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²)
Conductor cross-section, solid or stranded2x (0.75 ... 16 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
Side-by-side mountingYes
3RT1036-1AG60 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT1036-1AG60 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT1036-1AG60 — Mechanical
ParameterValue
Width55 mm
Height112 mm
Depth115 mm
3RT1036-1AG60 — Specifications
ParameterValue
At AC7 ... 20 ms

Product details

Siemens 3RT1036-1AG60 SIRIUS Power Contactor

At AC-3 duty (squirrel-cage motors), the rating shifts — the 500 V line shows 30 kW, and at 690 V it delivers 11.4 kW, so the buyer needs to match the utilization category to the load type, not just the highest kW number. Terminals are screw-type on the main current circuit. Solid wire accepts 2x (0.5...1.5 mm²), 2x (0.75...2.5 mm²), and up to 2x (0.75...4 mm²). That range covers control wiring through motor power tails without needing adapter lugs.

Duty Ratings and Switching Life

The AC-2 rating at 400 V (22 kW) is the headline figure for this contactor, but the AC-3 and AC-4 ratings tell the real switching story. At AC-3 (squirrel-cage motor starting), the maximum switching rate is 800 operations per hour; at AC-4 (plugging or inching), it drops to 300 per hour. Coil operating range is 0.8...1.1 at 50 Hz and 0.85...1.1 at 60 Hz. Arcing time runs 10...15 ms, with a total make/break time of 7...20 ms at AC. That's fast enough for most motor-starting sequences but not for semiconductor-grade switching — this is an electromechanical contactor, not a solid-state relay.

Frequently asked questions

What are the key ratings for the 3RT1036-1AG60?

Rated 22 kW at AC-2 400 V, 30 kW at AC-3 500 V, and 11.4 kW at AC-3 690 V. Mechanical life is 10 million operations typical. Maximum switching rate is 800 operations per hour at AC-3.

How do I get pricing and availability for the 3RT1036-1AG60?

Submit an RFQ through this listing. The part is sourced to order through independent distribution; availability and current pricing are confirmed at quote time.

What is the closest functional alternative to the 3RT1036-1AG60?

The 3RT5036-1AP00 is a size S2 contactor in the same SIRIUS family, but it uses spring-type terminals instead of screw terminals. The 3RT1036-1AG60 uses screw-type terminals on the main circuit. If your panel is wired for screw terminals, the 3RT5036-1AP00 would require a terminal adapter or re-termination.

Will the 3RT1036-1AG60 drop into a panel specified for the 3RT5036-1AP00?

The mounting footprint (S2, 55 mm width, snap-on DIN rail) is identical. The difference is the terminal type: screw on the 3RT1036-1AG60 versus spring-cage on the 3RT5036-1AP00. If the panel is wired with ferruled stranded conductors, the spring-cage terminal may be faster to terminate, but the screw terminal accepts the same wire ranges and is more tolerant of solid wire without ferrules.

What compliance documentation does Siemens provide for the 3RT1036-1AG60?

The contactor carries IP20 front / IP00 terminal protection and is rated for pollution degree 3 per IEC 60947. Standard Siemens documentation includes the declaration of conformity for CE/UKCA, and the product is designed for use in industrial control panels per UL/CSA requirements. Specific RoHS and REACH declarations are available through the manufacturer's documentation portal.
