Siemens SIRIUS power contactor, size S2, 55 mm width, screw terminals, 22 kW AC-2 at 400 V, snap-on 35 mm DIN rail.
| Parameter | Value |
|---|---|
| Contactor frame size | S2 |
| Parameter | Value |
|---|---|
| Rated operational current, AC-12, max. | 10 A |
| Rated operational current, AC-4 @ 400 V | 41 A |
| Rated value @ 400 V | 3 A |
| Rated value @ 500 V | 30 kW |
| Rated value @ 690 V | 11.4 kW |
| Rated value @ 230 V | 6 A |
| Rated value @ 24 V | 10 A |
| Rated value @ 60 V | 2 A |
| Rated value @ 110 V | 1 A |
| Rated value @ 220 V | 0.3 A |
| Parameter | Value |
|---|---|
| Control supply voltage type | AC |
| Rated value @ 50 Hz | 0.8 ... 1.1 |
| Rated value @ 50 Hz | 220 V |
| Parameter | Value |
|---|---|
| Main poles | 3 |
| Main NO contacts | 3 |
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
| Parameter | Value |
|---|---|
| Short-circuit coordination type 1, fuse | fuse gL/gG: 160 A |
| Short-circuit coordination type 2, fuse | fuse gL/gG: 80 A |
| Aux. switch short-circuit protection, fuse | fuse gL/gG: 10 A |
| Parameter | Value |
|---|---|
| Main circuit connection | screw-type terminals |
| Aux. / control circuit connection | spring-loaded terminals |
| Conductor cross-section, solid | 2x (0.25 ... 2.5 mm²) |
| Conductor cross-section, solid or stranded | 2x (0.75 ... 16 mm²) |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.25 ... 1.5 mm²) |
| Mounting method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| Side-by-side mounting | Yes |
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 10 000 000 |
| Durability with aux. switch block (cycles, typ.) | 10 000 000 |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Installation altitude, max. | 2 000 m |
| Parameter | Value |
|---|---|
| Width | 55 mm |
| Height | 112 mm |
| Depth | 115 mm |
| Parameter | Value |
|---|---|
| At AC | 7 ... 20 ms |

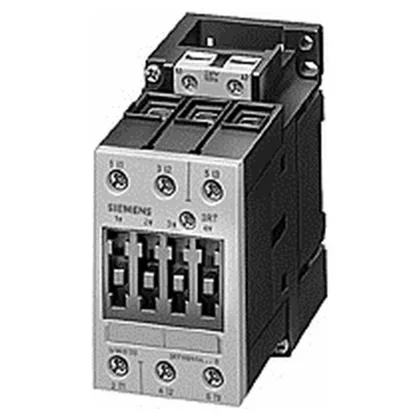

The Siemens SIRIUS 3RT1036-3AP60 is a size S2 power contactor rated for 22 kW at AC-2 duty at 400 V, meaning it handles slip-ring motor loads and reversing applications at that power level. Screw-type terminals on the main circuit accept 2x (0.75... 16 mm²) solid or stranded, with separate control circuit terminals rated for 2x (0.25... 2.5 mm²) solid.
Panel footprint is 55 mm wide × 112 mm tall × 115 mm deep — fits standard S2 cutouts.
Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
The depth is 115 mm.
The control circuit terminals accept 2x (0.25... 2.5 mm²) solid; main circuit terminals accept 2x (0.75... 16 mm²) solid or stranded.
Both are size S2 contactors with the same 55 mm width and screw terminals, so the panel cutout and DIN rail position match. However, the 3RT5036-1AP00 is a different generation — verify coil voltage, auxiliary contact configuration, and terminal arrangement against your panel schematic before substitution.
