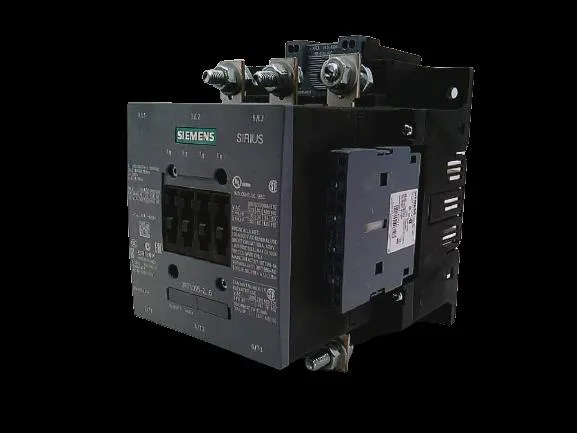

It carries a 440-480 V AC coil, so it pulls in reliably on standard 400-480 V three-phase control transformers common across European and North American line voltages. The screw-fixing mount and the ±90° rotatable, ±22.5° tiltable vertical mounting surface give panel builders flexibility when laying out a crowded enclosure — you can orient the contactor to fit cable entry or busbar runs without a special adapter plate.
The S6 frame is Siemens' designation for a contactor body that handles the mechanical and thermal demands of switching loads up to the AC-3 duty cycle ratings. The 440-480 V coil means this contactor is not for 24 VDC or 110 VAC control circuits — it is sized specifically for higher-voltage control schemes, common where the control transformer feeds directly from the line side of a motor starter. The 170 mm depth and 172 mm height with 120 mm width define the panel footprint: at 170 mm deep, it needs a back-panel clearance of roughly 200 mm to the enclosure door for arc-flash and wiring bend radius. The solid conductor range of 2x 0.25-2.5 mm² on the coil terminals is fine for standard control wiring; the main power terminals accept stranded 25-120 mm², which covers the cable sizes for motor circuits up to the S6 current rating.
Mounting is by screw fixing — no DIN-rail clip on this S6 frame, so plan for four M6 or M8 bolts into a backplate. The auxiliary switch is included — no separate add-on needed for basic status feedback. The spring-type coil terminals accept the 0.25-2.5 mm² solid or stranded control wiring without needing a screwdriver for the coil connection.
