Siemens 3RT1055-6NP36 — Contactors

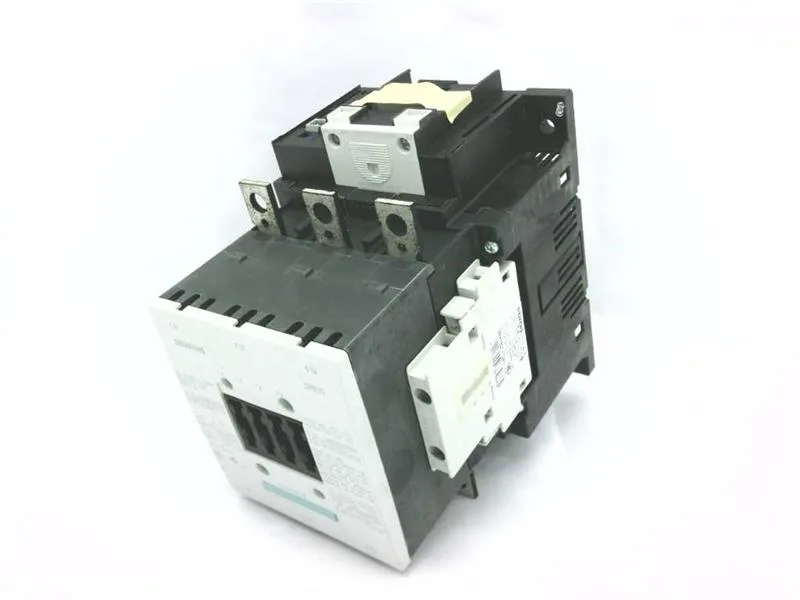

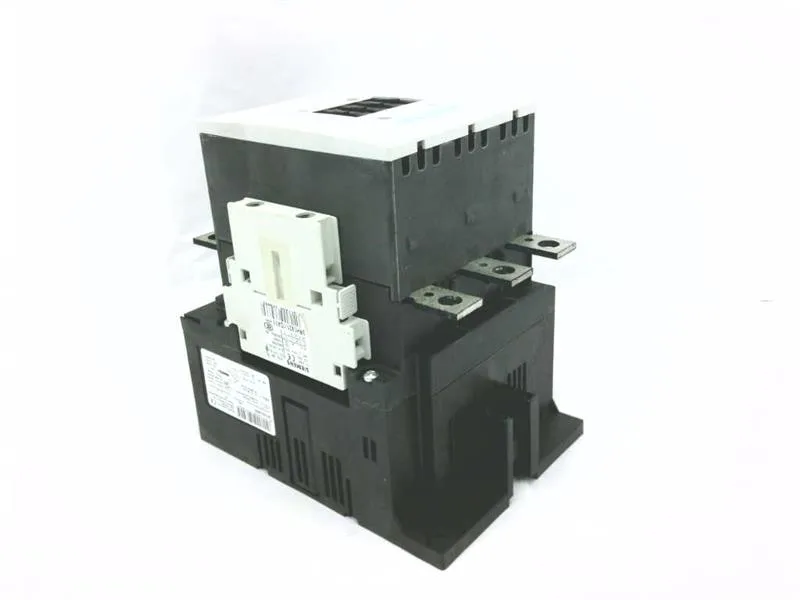

Siemens 3RT1055-6NP36 SIRIUS Power Contactor, S6, 200-277 V

MPN3RT1055-6NP36
Active

Siemens SIRIUS power contactor, size S6, 3RT1055-6NP36, 200-277 V AC coil, screw-type terminals, depth 170 mm.

$274.32Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT1055-6NP36 — Identification
ParameterValue
Contactor frame sizeS6
3RT1055-6NP36 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V132 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V30 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT1055-6NP36 — Control & Coil
ParameterValue
Control supply voltage typeAC/DC
Rated value @ 50 Hz0.6
Rated value @ 50 Hz200 ... 277 V
3RT1055-6NP36 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT1055-6NP36 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 355 A (690 V, 100 kA)
Short-circuit coordination type 2, fusegG: 315 A (690 V, 100 kA), aM: 200 A (690 V, 50 kA), BS88: 315 A (415 V, 50 kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT1055-6NP36 — Connection & Mounting
ParameterValue
Main circuit connectionConnection bar
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²)
Conductor cross-section, solid or stranded2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), max. 2x (0,75 ... 4 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew fixing
Side-by-side mountingYes
3RT1055-6NP36 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT1055-6NP36 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT1055-6NP36 — Mechanical
ParameterValue
Width120 mm
Height172 mm
Depth170 mm
3RT1055-6NP36 — Specifications
ParameterValue
At AC80 ... 90 ms

Product details

The coil pulls in on 200–277 V AC. Mechanical switching life is listed at 10 million operations typical, which puts it in the heavy-duty range for a contactor this size — expect it to outlast the machine it's in on cyclic loads like conveyors or pumps.

The contactor is rated for AC-3 maximum switching frequency of 750 operations per hour, and AC-4 at 130 operations per hour.

Mounting is screw fixing, not DIN rail snap-on. The contactor size S6 is physically large (172 mm high, 120 mm wide, 170 mm deep) — you're bolting this to a backplate, not clipping it onto a rail. That's tight for a part this size; plan your enclosure depth accordingly. The mounting position allows vertical surface mounting with ±90° rotation or ±22.5° tilt front-to-back, so panel layout isn't locked to one orientation.

Main power circuit terminals accept stranded wire from 25 mm² up to 120 mm² — that's a heavy lug range, consistent with a size S6 contactor rated for high current. That gives flexibility for daisy-chaining control power or feedback loops without extra terminal blocks.

Frequently asked questions

What is the closest functional second-source — 3RT1055-6AU36?

The 3RT1055-6AU36 is a peer variant in the same SIRIUS size S6 family. The key difference is the coil voltage: the 3RT1055-6NP36 uses a 200–277 V AC coil, while the 3RT1055-6AU36 uses a different coil voltage. They share the same physical footprint and terminal layout, so panel fit is identical, but the control circuit voltage must match.

What is the depth of this contactor?

The depth is 170 mm.

What wire sizes does the control circuit accept?

The control circuit terminals accept solid or stranded wire: 2x (0.5–1.5 mm²), 2x (0.75–2.5 mm²), and max 2x (0.75–4 mm²).

Will 3RT1055-6NP36 drop into a panel specified for 3RT1055-6AU36 without rewiring?

Yes, the physical dimensions and mounting are identical between the two (same S6 frame, same screw fixing, same clearance requirements). The only difference is the coil voltage — if the panel's control circuit is 200–277 V AC, it drops in without rewiring.
