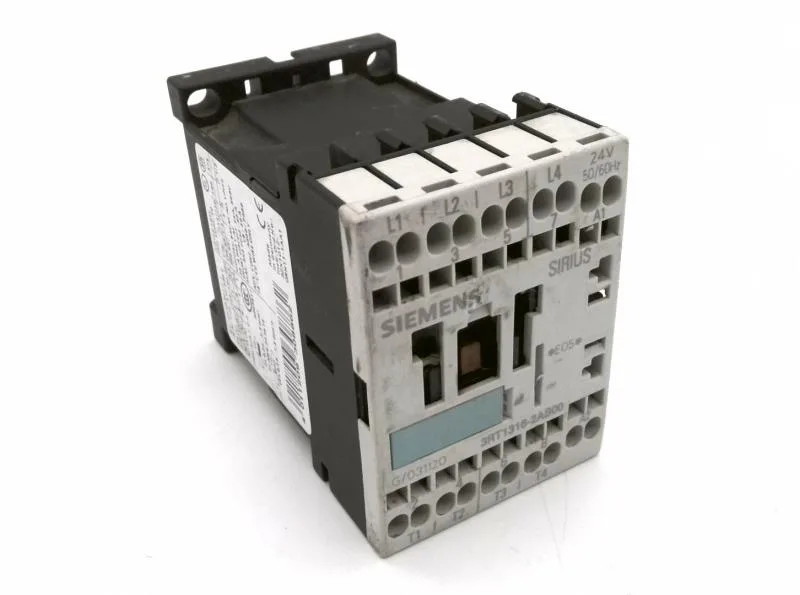

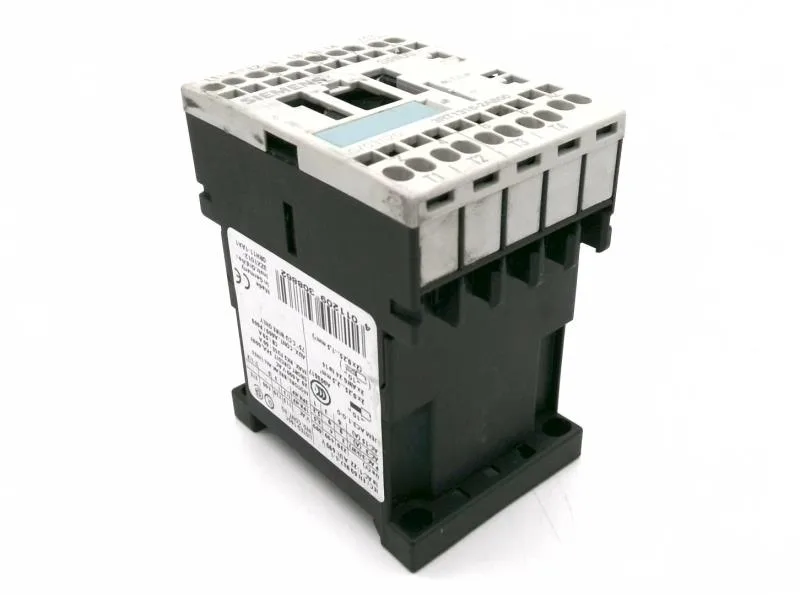

Siemens SIRIUS 3RT1316-2AB00 Power Contactor, Size S00, 4 NO

MPN3RT1316-2AB00

Siemens SIRIUS power contactor, size S00, 4 NO main contacts, 24 V 50/60 Hz coil, spring-loaded terminals, 45 mm width, current production.

$15.42Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT1316-2AB00 — Identification
ParameterValue
Contactor frame sizeS00
3RT1316-2AB00 — Ratings & Performance
ParameterValue
Rated value @ 400 V3 A
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT1316-2AB00 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.8 ... 1.1
Rated value @ 50 Hz24 V
3RT1316-2AB00 — Contacts & Poles
ParameterValue
Main poles4
Main NO contacts4
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT1316-2AB00 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusefuse gL/gG: 35 A
Short-circuit coordination type 2, fusefuse gL/gG: 20 A
Aux. switch short-circuit protection, fusefuse gL/gG: 10 A
3RT1316-2AB00 — Connection & Mounting
ParameterValue
Main circuit connectionspring-loaded terminals
Conductor cross-section, solid2x (0.25 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.25 ... 1.5 mm²)
Side-by-side mountingYes
3RT1316-2AB00 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT1316-2AB00 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
3RT1316-2AB00 — Mechanical
ParameterValue
Width45 mm
Height60 mm
Depth72 mm

Product details

It carries 4 normally-open main contacts and is rated for a 24 V 50/60 Hz coil, meaning it pulls in reliably on standard control transformers. The spring-loaded terminals on the main current circuit accept 2x (0.25... 2.5 mm²) solid or stranded wire, so no ferrule crimping is needed for the smaller gauges.

The AC-12 maximum operating current is 10 A, which is the resistive load capability for control circuits. For DC switching, the contactor is rated 10 A at 24 V, 2 A at 60 V, 1 A at 110 V, and 0.3 A at 220 V — these are the DC-1 or DC-13 style values, so check your inductive DC load against the curve.

Width is 45 mm, height 60 mm, depth 72 mm — the 72 mm depth means it will clear most shallow enclosures, but check your gland plate clearance. Side-by-side mounting is allowed with no derating, which saves rail space in a dense panel.

Frequently asked questions

What is the depth of 3RT1316-2AB00?

The depth is 72 mm.

What wire size does the spring-loaded terminal accept?

It accepts 2x (0.25... 2.5 mm²) solid or stranded wire.

What is the AC-2 motor rating at 400 V?

The AC-2 rating at 400 V is 4 kW, suitable for wound-rotor motor loads.

Can this contactor be mounted side-by-side without derating?

Yes, side-by-side mounting is allowed with no derating.
