Siemens 3RT1317-1AB00 — Contactors

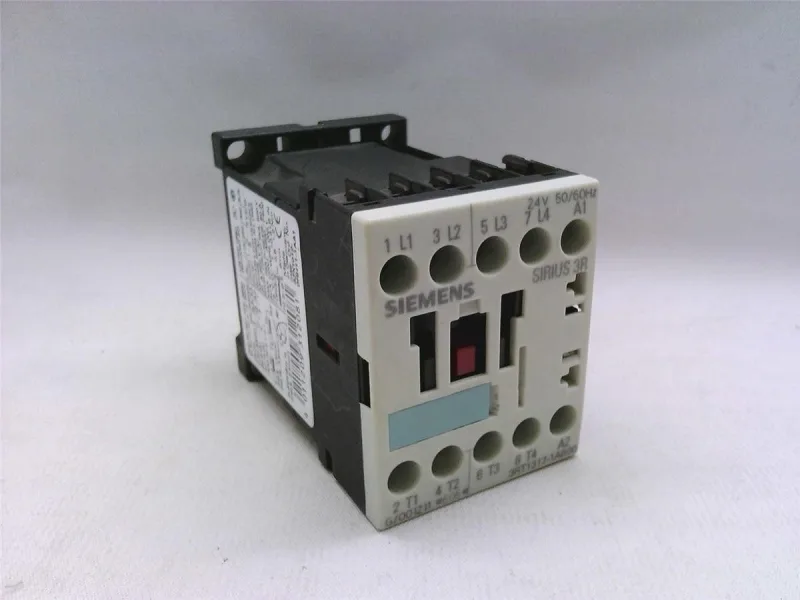

Siemens 3RT1317-1AB00 SIRIUS Power Contactor, 4 NO, 5.5 kW A

MPN3RT1317-1AB00

Siemens SIRIUS power contactor, size S00, 4 NO main contacts, 5.5 kW at 400 V AC-2, screw terminals, 45 mm width, active production.

$22.31Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT1317-1AB00 — Identification
ParameterValue
Contactor frame sizeS00
3RT1317-1AB00 — Ratings & Performance
ParameterValue
Rated value @ 400 V3 A
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT1317-1AB00 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.8 ... 1.1
Rated value @ 50 Hz24 V
3RT1317-1AB00 — Contacts & Poles
ParameterValue
Main poles4
Main NO contacts4
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT1317-1AB00 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusefuse gL/gG: 35 A
Short-circuit coordination type 2, fusefuse gL/gG: 20 A
Aux. switch short-circuit protection, fusefuse gL/gG: 10 A
3RT1317-1AB00 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Conductor cross-section, solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Side-by-side mountingYes
3RT1317-1AB00 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT1317-1AB00 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
3RT1317-1AB00 — Mechanical
ParameterValue
Width45 mm
Height57.5 mm
Depth72 mm

Product details

It is rated for motor switching at 5.5 kW at 400 V AC-2, and carries a maximum operating current of 10 A at AC-12.

The enclosure is IP20 on the front and at the terminals, suitable for dry indoor panel environments.

Ratings and coordination

The main contacts handle 10 A in AC-12 resistive loads. For short-circuit protection, type 1 coordination requires a 35 A gL/gG fuse; type 2 coordination requires a 20 A gL/gG fuse. The coil is rated for 24 V at 50/60 Hz, with a tolerance of 0.8 to 1.1 times the rated voltage at 50 Hz, and 0.85 to 1.1 at 60 Hz.

Frequently asked questions

What is the closest functional second-source for the 3RT1317-1AB00?

The 3RT1023-1AL20 is a peer contactor in the same SIRIUS family, but it has a different contact configuration and ratings. The 3RT1317-1AB00 has four NO main contacts and a 5.5 kW AC-2 rating, while the 3RT1023-1AL20 has three NO plus one NC and a different power rating. It will not drop into a panel wired for the 3RT1023-1AL20 without rewiring the main contacts.

What is the depth of the 3RT1317-1AB00?

The depth is 72 mm.

What wire sizes does the 3RT1317-1AB00 accept?

The screw terminals accept solid or stranded conductors: 2x (0.5 to 1.5 mm²), 2x (0.75 to 2.5 mm²), and max. 2x (0.75 to 4 mm²). For AWG, it accepts 2x (20 to 16), 2x (18 to 14), and 1x 12.
