Siemens 3RT1346-1AB00 — Contactors

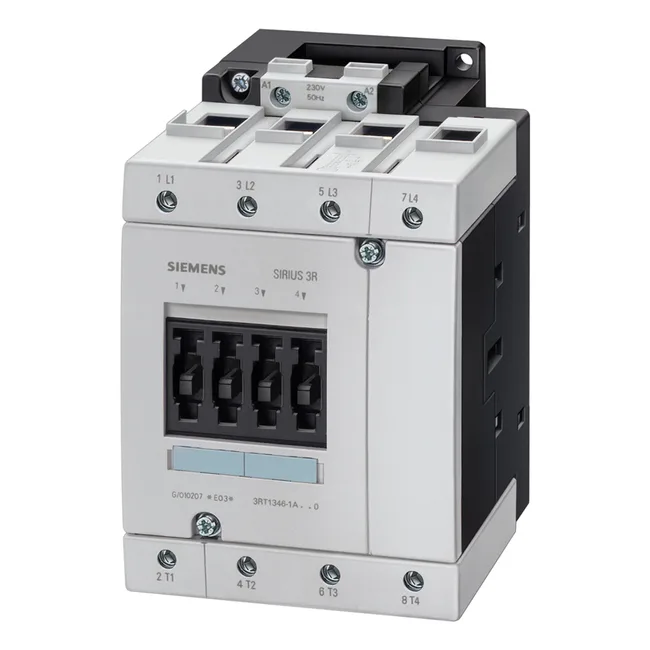

Siemens SIRIUS 3RT1346-1AB00 Power Contactor, 53 kW, 230 V

MPN3RT1346-1AB00

Siemens SIRIUS 3RT1346-1AB00, S3 power contactor, 53 kW at 230 V, 1000 V insulation, 6 kV surge, IP20 front, screw terminals.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT1346-1AB00 — Identification
ParameterValue
Contactor frame sizeS3
3RT1346-1AB00 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated value @ 400 V3 A
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT1346-1AB00 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.8 ... 1.1
Rated value @ 50 Hz24 V
3RT1346-1AB00 — Contacts & Poles
ParameterValue
Main poles4
Main NO contacts4
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT1346-1AB00 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusefuse gL/gG: 250 A
Short-circuit coordination type 2, fusefuse gL/gG: 160 A
Aux. switch short-circuit protection, fusefuse gL/gG: 10 A
3RT1346-1AB00 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²)
Conductor cross-section, solid or stranded2x (2.5 ... 16 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm and 75 mm standard mounting rail
Side-by-side mountingYes
3RT1346-1AB00 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT1346-1AB00 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT1346-1AB00 — Mechanical
ParameterValue
Width93 mm
Height146 mm
Depth139 mm
3RT1346-1AB00 — Specifications
ParameterValue
At AC10 ... 25 ms

Product details

The Siemens SIRIUS 3RT1346-1AB00 is a size S3 power contactor rated for motor switching up to 53 kW at 230 V, 50 Hz. Pollution degree 3 means it handles the conductive dust and humidity you get in a real motor control center, not a clean room.

Main current circuit uses screw-type terminals accepting solid wire from 2x (0.5... 1.5 mm²) up to max 2x (0.75... 4 mm²), and stranded from 2x (10... 50 mm²). For AWG, main contacts accept 2x (10... 1/0).

Protection and coordination

The contactor's mechanical life is typical 10,000,000 operations, and it's rated for 1,000 cycles per hour at AC-1 maximum. Arcing time runs 10 to 15 ms. These numbers matter for coordination studies and for estimating contactor wear in high-cycle applications like conveyor or pump cycling.

Frequently asked questions

What is the depth of 3RT1346-1AB00?

The depth is 139 mm, width 93 mm, height 146 mm. It's a size S3 contactor that snaps onto 35 mm or 75 mm DIN rail.

What wire sizes does 3RT1346-1AB00 accept?

Solid wire: 2x (0.5... 1.5 mm²), 2x (0.75... 2.5 mm²), max 2x (0.75... 4 mm²). Stranded: 2x (10... 50 mm²). AWG main contacts: 2x (10... 1/0). All via screw-type terminals.

Will 3RT1346-1AB00 drop into a panel specified around 3RT1044-1FB46?

Both are SIRIUS power contactors, but they are different sizes and ratings. The 3RT1346-1AB00 is an S3 frame; the 3RT1044-1FB46 is a different frame size. Physical dimensions, terminal spacing, and current ratings differ — panel fit is not guaranteed without verifying mounting and wiring clearances.
