Panel layout and mounting

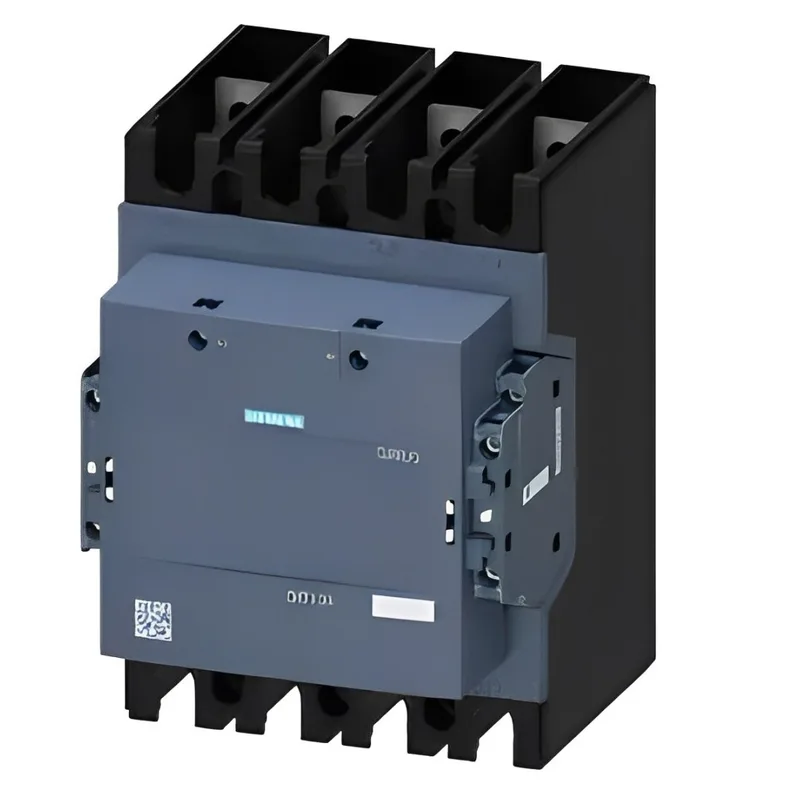

With dimensions of 196 x 140 x 153 mm (height x width x depth) and screw fixing, the 3RT1364-6AR36 requires a mounting surface that can accept the 140 mm width. The permitted mounting positions are flexible: the contactor can be rotated ±180° on a vertical surface, or tilted forward/backward up to 30° when in a vertical orientation. Clearance needs: 10 mm above and below, 10 mm at the sides, and 20 mm in front for wiring access and heat dissipation. Screw-type terminals accept 1x or 2x solid or stranded conductors from 1 to 4 mm² each — sufficient for the rated currents. The operating temperature range spans -40 to +60 °C, making this suitable for unheated enclosure environments.
Sourcing and lifecycle
This part carries a current-production lifecycle designation, meaning it remains a standard catalog item for new designs and replacements. Sourcing is straightforward through the Siemens distribution channel, and we quote this part to order against an RFQ. No last-time-buy window or alternative cross is needed at this time.
