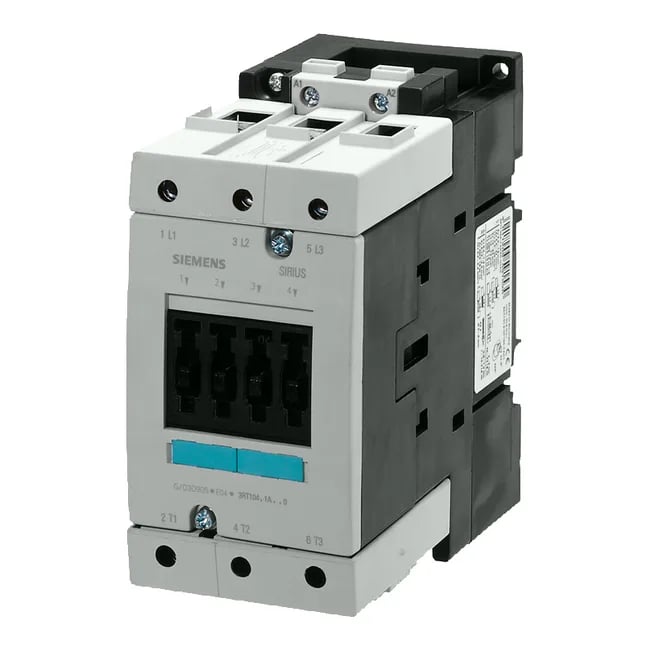

3RT1446-6BB46 - Siemens
MPN3RT1446-6BB46
Contactor, AC-1, 140 A / 400 V, 24 V DC, 3-pole, size S3, screw terminal, without box terminals lateral auxiliary switch block Left + right, 2 NO + 2 NC! Phased-out product! Successor is SIRIUS 3RT2 Preferred successor type is >>3RT2446-1NB30<<
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
Identification
| Parameter | Value |
|---|---|
| Contactor frame size | S3 |
Ratings & Performance
| Parameter | Value |
|---|---|
| Rated operational current, AC-12, max. | 10 A |
| Rated value @ 400 V | 3 A |
| Rated value @ 500 V | 29.9 kW |
| Rated value @ 690 V | 38.2 kW |
| Rated value @ 230 V | 6 A |
| Rated value @ 24 V | 10 A |
| Rated value @ 60 V | 2 A |
| Rated value @ 110 V | 1 A |
| Rated value @ 220 V | 0.3 A |
Control & Coil
| Parameter | Value |
|---|---|
| Control supply voltage type | DC |
Contacts & Poles
| Parameter | Value |
|---|---|
| Main poles | 3 |
| Main NO contacts | 3 |
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
Protection & Coordination
| Parameter | Value |
|---|---|
| Short-circuit coordination type 1, fuse | fuse gL/gG: 250 A |
| Short-circuit coordination type 2, fuse | Fuse gR: 250 A |
| Aux. switch short-circuit protection, fuse | fuse gL/gG: 10 A |
Connection & Mounting
| Parameter | Value |
|---|---|
| Main circuit connection | screw-type terminals |
| Aux. / control circuit connection | screw-type terminals |
| Conductor cross-section, solid | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²) |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Mounting method | screw and snap-on mounting onto 35 mm and 75 mm standard mounting rail |
| Side-by-side mounting | Yes |
Durability
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 10 000 000 |
| Durability with aux. switch block (cycles, typ.) | 10 000 000 |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Installation altitude, max. | 2 000 m |
Mechanical
| Parameter | Value |
|---|---|
| Width | 90 mm |
| Height | 146 mm |
| Depth | 152 mm |
MPN
3RT1446-6BB46
