Siemens 3RT1456-6AM36 — Contactors

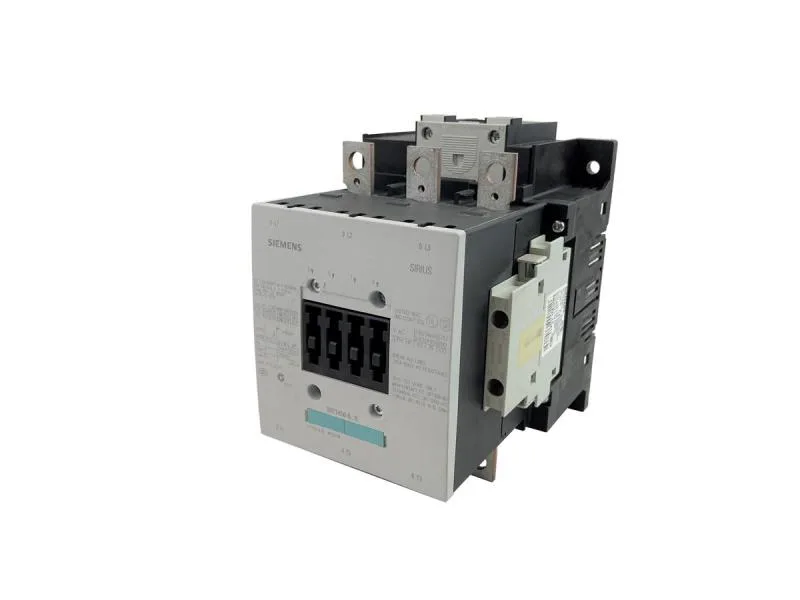

Siemens 3RT1456-6AM36 SIRIUS Contactor, 200-220 V AC/DC Coil

MPN3RT1456-6AM36
Active

Siemens SIRIUS S6 power contactor, 3RT1456-6AM36, 200-220 V AC/DC coil, screw-type terminals, size S6, 172 x 120 x 170 mm.

$222.25Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT1456-6AM36 — Identification
ParameterValue
Contactor frame sizeS6
3RT1456-6AM36 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT1456-6AM36 — Control & Coil
ParameterValue
Control supply voltage typeAC/DC
Rated value @ 50 Hz0.8
Rated value @ 50 Hz200 ... 220 V
3RT1456-6AM36 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT1456-6AM36 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 355 A (690 V, 100 kA)
Short-circuit coordination type 2, fusegR: 350 A (690 V, 100 kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT1456-6AM36 — Connection & Mounting
ParameterValue
Main circuit connectionConnection bar
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²)
Conductor cross-section, solid or stranded2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), max. 2x (0,75 ... 4 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew fixing
Side-by-side mountingYes
3RT1456-6AM36 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT1456-6AM36 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT1456-6AM36 — Mechanical
ParameterValue
Width120 mm
Height172 mm
Depth170 mm
3RT1456-6AM36 — Specifications
ParameterValue
At AC40 ... 60 ms

Product details

What This SIRIUS S6 Contactor Does

Its coil accepts 200-220 V AC/DC, making it straightforward to integrate into panels with a common control voltage. The screw-type coil terminals accept solid or stranded wire — 2x (0.5 to 1.5 mm²) or 2x (0.75 to 2.5 mm²), max 2x (0.75 to 4 mm²) — so it's compatible with standard panel wiring practices. Rated for a 200-220 V coil, this contactor operates on both AC and DC control circuits, with a dropout voltage around 0.8 x rated value.

Sizing and Mounting

The S6 frame measures 172 mm high, 120 mm wide, and 170 mm deep — a substantial footprint for a contactor rated for main-circuit stranded cable up to 120 mm². It mounts via screw fixing on a vertical surface, rotatable ±90° and tiltable ±22.5° front-to-back, which gives flexibility in tight enclosures.

Frequently asked questions

Where can I buy 3RT1456-6AM36?

It is available to order against an RFQ through independent distribution. Current pricing and lead time are confirmed at the time of quotation.

Is 3RT1456-6AM36 suitable for DC applications?

Yes, the coil is rated for both AC and DC control voltage (200-220 V). The auxiliary switch also has DC ratings: 10 A at 24 V, 2 A at 48 V and 60 V, 1 A at 110 V.
