Siemens 3RT1517-2AP00 — Contactors

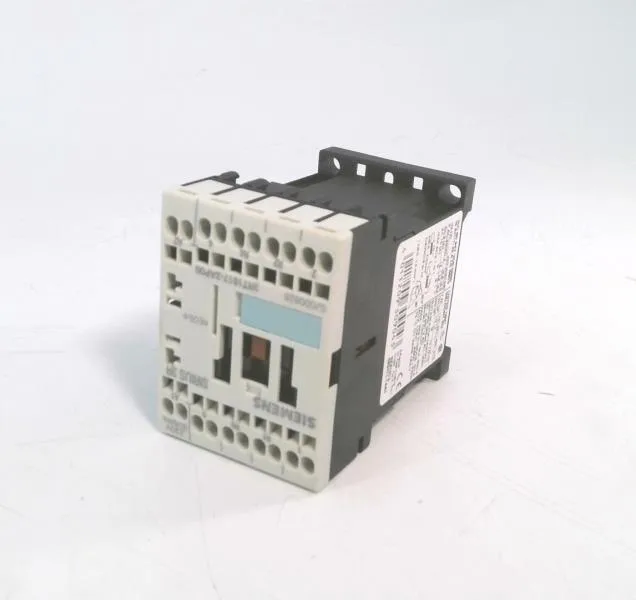

Siemens 3RT1517-2AP00 SIRIUS Power Contactor, Size S00, 230

MPN3RT1517-2AP00

Siemens SIRIUS 3RT1517-2AP00 power contactor, size S00, 230 V AC 50/60 Hz coil, spring-loaded terminals, width 45 mm.

$25.02Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

3RT1517-2AP00 — Identification
ParameterValue
Contactor frame sizeS00
3RT1517-2AP00 — Ratings & Performance
ParameterValue
Rated value @ 400 V3 A
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT1517-2AP00 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz4.4 V·A
Rated value @ 50 Hz230 V
3RT1517-2AP00 — Contacts & Poles
ParameterValue
Main poles4
Main NO contacts2
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT1517-2AP00 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusefuse gL/gG: 35 A
Short-circuit coordination type 2, fusefuse gL/gG: 20 A
Aux. switch short-circuit protection, fusefuse gL/gG: 10 A
3RT1517-2AP00 — Connection & Mounting
ParameterValue
Main circuit connectionspring-loaded terminals
Conductor cross-section, solid2x (0.25 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.25 ... 1.5 mm²)
Side-by-side mountingYes
3RT1517-2AP00 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT1517-2AP00 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
3RT1517-2AP00 — Mechanical
ParameterValue
Width45 mm
Height60 mm
Depth72 mm
3RT1517-2AP00 — Specifications
ParameterValue
At AC4 ... 30 ms

Product details

The spring-loaded terminals on the main circuit accept 2x (0.25 to 2.5 mm²) solid or stranded wire, which means no screw-torque check during commissioning — just strip and insert.

The 230 V AC coil draws 4.4 V·A at 50 Hz, a light control-transformer load that lets you daisy-chain multiple contactors on a single 24 VDC supply without oversizing it. For motor switching, the AC-1 maximum operating rate of 1 000 cycles per hour sets the thermal limit under resistive loads; exceed that and the contacts won't cool between operations.

IP20 on the front and at the terminals — this is a panel-internal device, not rated for washdown.

Frequently asked questions

What are the key dimensions for panel layout?

Width is 45 mm, height 60 mm, depth 72 mm. It mounts on a 35 mm DIN rail per EN 50022 with a 6 mm side clearance allowed for side-by-side mounting.

What wire sizes does the spring-loaded terminal accept?

The main circuit terminals accept 2x (0.25 to 2.5 mm²) solid or stranded wire. The auxiliary terminals also accept 2x (0.25 to 2.5 mm²). No screw torque needed — strip to the correct length and insert.

What is the coil voltage and power draw?

The coil is rated for 230 V AC at both 50 Hz and 60 Hz. Power draw is 4.4 V·A at 50 Hz.
