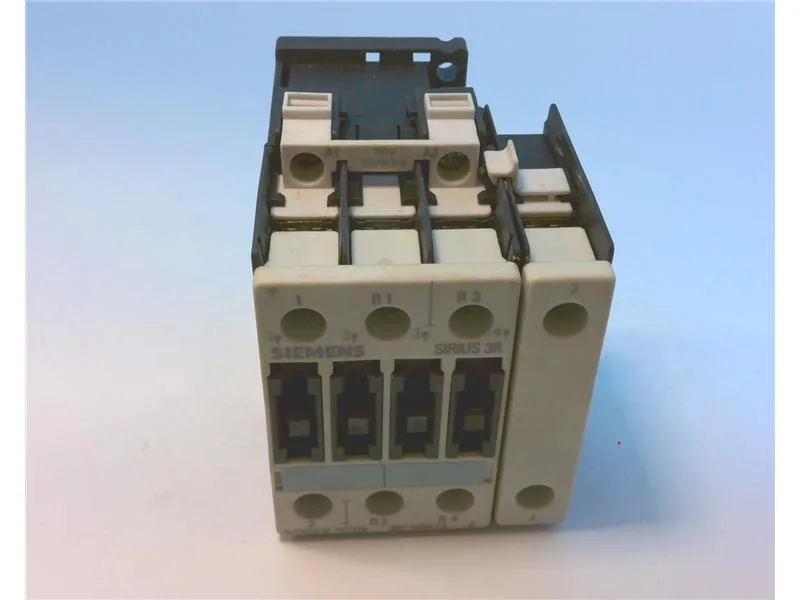

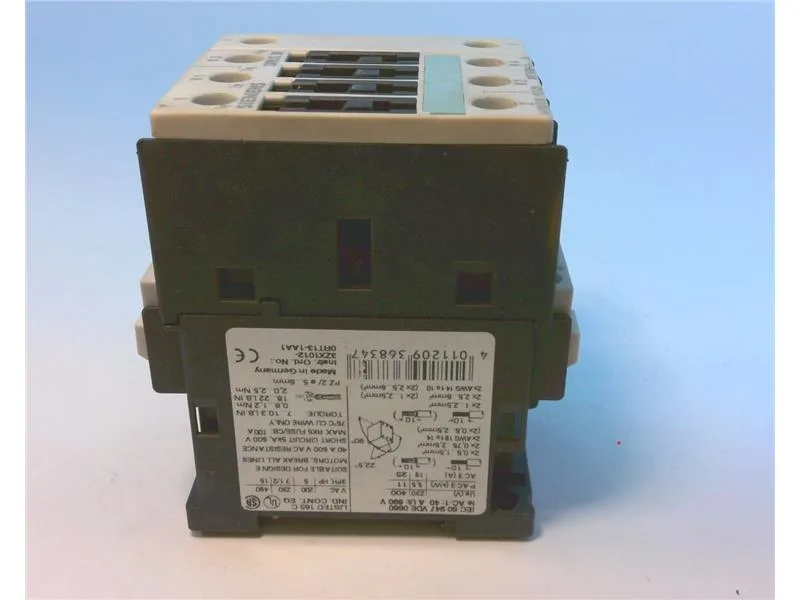

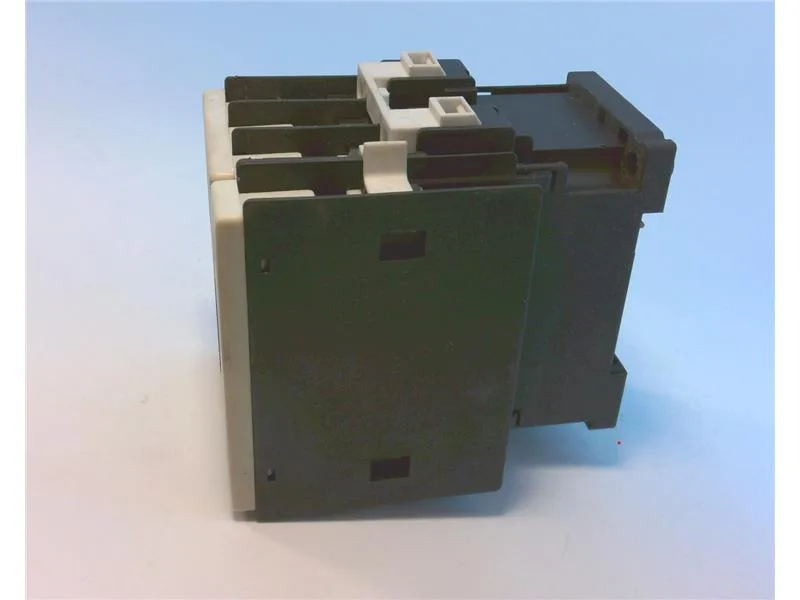

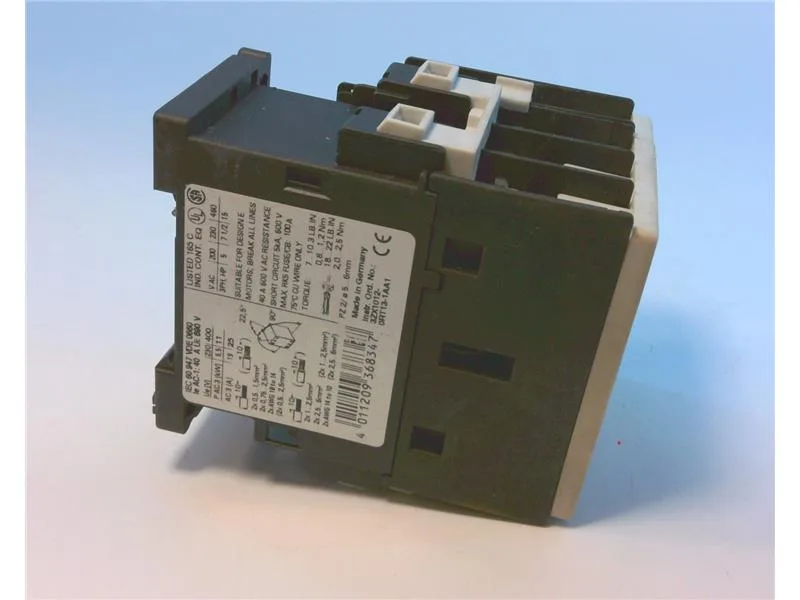

Siemens SIRIUS power contactor, size S0, 24 VDC coil, 25 A rated per NO/NC contact, screw terminals, DIN rail mount, 85 x 61 x 91 mm.
| Parameter | Value |
|---|---|
| Contactor frame size | S0 |
| Parameter | Value |
|---|---|
| Rated value @ 400 V | 3 A |
| Rated value @ 230 V | 6 A |
| Rated value @ 24 V | 10 A |
| Rated value @ 60 V | 2 A |
| Rated value @ 110 V | 1 A |
| Rated value @ 220 V | 0.3 A |
| Parameter | Value |
|---|---|
| Control supply voltage type | AC |
| Rated value @ 50 Hz | 8.4 V·A |
| Rated value @ 50 Hz | 110 V |
| Parameter | Value |
|---|---|
| Main poles | 4 |
| Main NO contacts | 2 |
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
| Parameter | Value |
|---|---|
| Short-circuit coordination type 1, fuse | fuse gL/gG: 63 A |
| Short-circuit coordination type 2, fuse | fuse gL/gG: 35 A |
| Aux. switch short-circuit protection, fuse | fuse gL/gG: 10 A |
| Parameter | Value |
|---|---|
| Main circuit connection | screw-type terminals |
| Conductor cross-section, solid | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²) |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Side-by-side mounting | Yes |
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 10 000 000 |
| Durability with aux. switch block (cycles, typ.) | 10 000 000 |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Parameter | Value |
|---|---|
| Width | 61 mm |
| Height | 85 mm |
| Depth | 91 mm |
| Parameter | Value |
|---|---|
| At AC | 13 ... 25 ms |
It uses a 24 VDC coil drawing 10 A at 24 V rated value, and mounts via screw or snap-on onto 35 mm DIN rail per EN 50022.
Dimensions are 85 mm high, 61 mm wide, 91 mm deep — the S0 footprint fits standard 35 mm DIN rail enclosures. Screw-type terminals on the main circuit accept 2x (0.5...1.5 mm²), 2x (0.75...2.5 mm²), or max 2x (0.75...4 mm²) solid or stranded wire. The auxiliary circuit terminals share the same wire range.
It is a SIRIUS power contactor, size S0, with a 24 VDC coil drawing 10 A at 24 V rated value, and main contacts rated 25 A per NO and per NC. It mounts on 35 mm DIN rail and uses screw terminals.
This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
