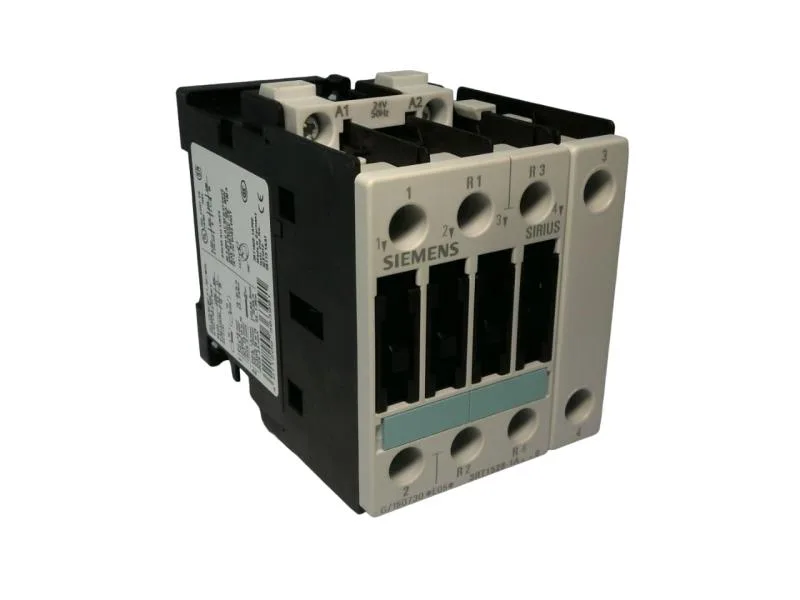

Siemens SIRIUS power contactor, size S0, 3RT1526-1AP00, 230 V AC coil, 35 A rated auxiliary, screw terminals.
| Parameter | Value |
|---|---|
| Contactor frame size | S0 |
| Parameter | Value |
|---|---|
| Rated operational current, AC-12, max. | 10 A |
| Rated value @ 400 V | 3 A |
| Rated value @ 230 V | 6 A |
| Rated value @ 24 V | 10 A |
| Rated value @ 60 V | 2 A |
| Rated value @ 110 V | 1 A |
| Rated value @ 220 V | 0.3 A |
| Parameter | Value |
|---|---|
| Control supply voltage type | AC |
| Rated value @ 50 Hz | 7.8 V·A |
| Rated value @ 50 Hz | 230 V |
| Parameter | Value |
|---|---|
| Main poles | 4 |
| Main NO contacts | 2 |
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
| Parameter | Value |
|---|---|
| Short-circuit coordination type 1, fuse | fuse gL/gG: 63 A |
| Short-circuit coordination type 2, fuse | fuse gL/gG: 35 A |
| Aux. switch short-circuit protection, fuse | fuse gL/gG: 10 A |
| Parameter | Value |
|---|---|
| Main circuit connection | screw-type terminals |
| Aux. / control circuit connection | screw-type terminals |
| Conductor cross-section, solid | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²) |
| Conductor cross-section, solid or stranded | 2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), max. 2x (0,75 ... 4 mm²) |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Mounting method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| Side-by-side mounting | Yes |
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 10 000 000 |
| Durability with aux. switch block (cycles, typ.) | 10 000 000 |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Installation altitude, max. | 2 000 m |
| Parameter | Value |
|---|---|
| Width | 61 mm |
| Height | 85 mm |
| Depth | 91 mm |
| Parameter | Value |
|---|---|
| At AC | 13 ... 25 ms |
The 3RT1526-1AP00: Rated impulse withstand voltage is 6 kV for main and auxiliary circuits.
Accepts solid or stranded wire: 2x 0.5…1.5 mm², 2x 0.75…2.5 mm², or up to 2x 4 mm² for the main circuit. The AWG equivalents are 2x 20…16, 2x 18…14, or 1x 12. Side-by-side mounting is allowed (zero gap), saving rail space. Clearance to adjacent parts: 6 mm at the side.
Depth is 91 mm. Width is 61 mm and height is 85 mm, which are the dimensions of the S0 frame.
