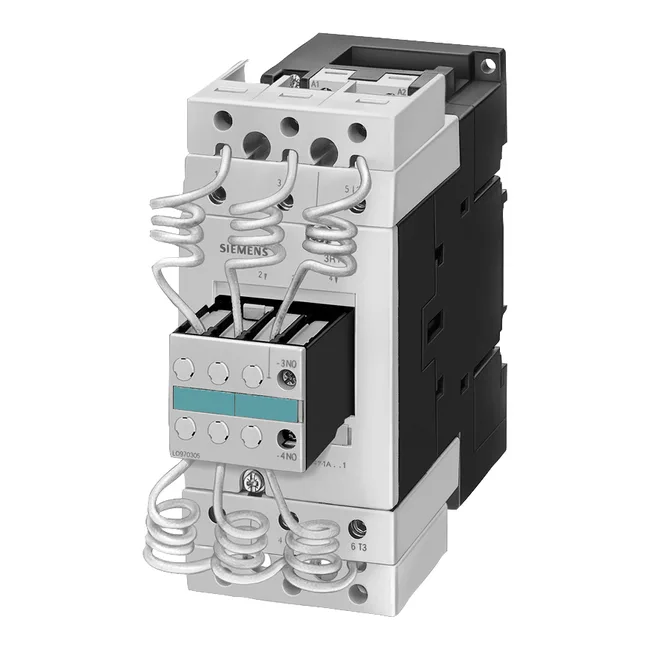

Siemens 3RT1647-1AB01 — Contactors

Siemens 3RT1647-1AB01 Capacitor Contactor, AC-6 50 kVAr, 24

MPN3RT1647-1AB01

Siemens SIRIUS, Capacitor Contactor, AC-6, 50 kVAr / 400 V, 24 V 50 Hz, 3-pole, Size S3, screw terminals.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT1647-1AB01 — Control & Coil
ParameterValue
Rated value @ 50 Hz24 ... 24 V
3RT1647-1AB01 — Contacts & Poles
ParameterValue
Main NO contacts3
3RT1647-1AB01 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Mounting methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
Side-by-side mountingYes
3RT1647-1AB01 — Mechanical
ParameterValue
Width70 mm
Height167 mm
Depth183 mm

Product details

The Siemens 3RT1647-1AB01 is a capacitor contactor from the SIRIUS family, sized S3, designed specifically for switching capacitor banks. It's rated AC-6 at 50 kVAr / 400 V — that's the duty class for capacitor loads, where inrush current can hit tens of times the rated current. The 24 V, 50 Hz coil keeps it in the standard control-voltage range for many industrial panels. Three main poles, one normally open auxiliary contact, and screw terminals for both main and control wiring.

Side-by-side mounting is allowed, which saves rail space in a multi-bank capacitor setup.

Protection class is IP00 on the terminals, IP20 on the front with the cover or box terminal fitted. That means it's not a washdown part — it belongs inside a panel with a door, not out in the grease and dust of a lube route.

Frequently asked questions

Where can I buy 3RT1647-1AB01?

The 3RT1647-1AB01 is sourced through independent distribution and quoted to order against an RFQ. Availability and current pricing are confirmed at quote time.

What is the AC-6 rating on 3RT1647-1AB01?

It's rated 50 kVAr at 400 V in AC-6 duty, which is the standard category for capacitor switching contactors. That rating accounts for the high inrush current when energizing a capacitor bank.

Will 3RT1647-1AB01 drop into a panel specified around 3RT1044-1FB46?

Both are S3 frame size and mount on 35 mm DIN rail, so the footprint and rail clip are the same. But the 3RT1044-1FB46 is a general-purpose power contactor, not a capacitor-duty model — the 3RT1647-1AB01 has a different coil voltage (24 VAC vs 24 VDC) and a different duty rating. Check the control voltage and capacitor switching requirements before swapping.
