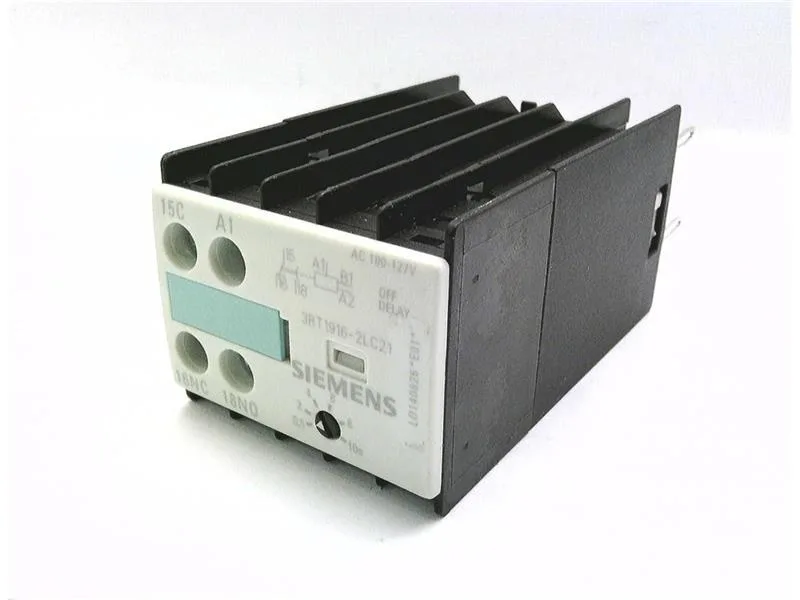

3RT1916-2LC21 - Siemens
MPN3RT1916-2LC21
Electronic timing relay block for mounting onto contactors 1 change-over contact, single voltage 100-127 V AC, 24 V, up to 240 V Screw terminals!!! Phased-out product!!! Successor is SIRIUS 3RA2 Preferred successor type is >>3RA2814-1AW10<<
$58.29Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control supply voltage type | AC |
| Rated value @ 50 Hz | 100 ... 127 V |
| Parameter | Value |
|---|---|
| Aux. switch short-circuit protection, fuse | fuse gL/gG: 4 A |
| Parameter | Value |
|---|---|
| Conductor cross-section, solid | 18 ... 14 |
| Conductor cross-section, finely stranded w/ ferrule | 0.5 ... 2.5 m² |
| Parameter | Value |
|---|---|
| Operating temperature range | 15 ... 95 % |
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 38 mm |
| Depth | 75 mm |
MPN
3RT1916-2LC21
