Siemens 3RT1916-2LD21 — Contactors

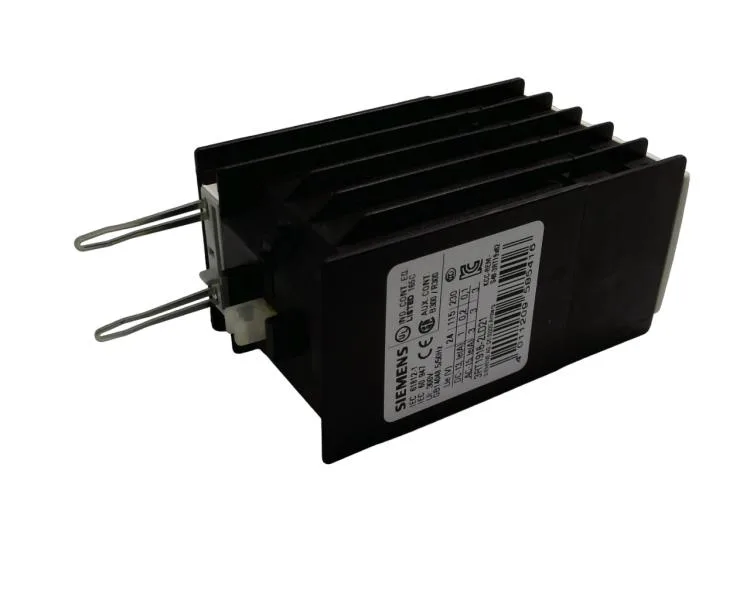

Siemens 3RT1916-2LD21 SIRIUS Auxiliary Switch, OFF-Delay 0.5

MPN3RT1916-2LD21

Siemens SIRIUS auxiliary switch, 3RT1916-2LD21, OFF-delay adjustable 0.5-10 s, 200-240 V 50/60 Hz, clip-on mounting, IP20.

$64.07Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT1916-2LD21 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz200 ... 240 V
3RT1916-2LD21 — Protection & Coordination
ParameterValue
Aux. switch short-circuit protection, fusefuse gL/gG: 4 A
3RT1916-2LD21 — Connection & Mounting
ParameterValue
Conductor cross-section, solid18 ... 14
Conductor cross-section, finely stranded w/ ferrule0.5 ... 2.5 m²
3RT1916-2LD21 — Environmental
ParameterValue
Operating temperature range15 ... 95 %
3RT1916-2LD21 — Mechanical
ParameterValue
Width45 mm
Height38 mm
Depth75 mm

Product details

The Siemens 3RT1916-2LD21 is a SIRIUS auxiliary switch — a clip-on accessory for contactors and reversing starters that adds a timed OFF-delay function to the control circuit. Its OFF-delay is adjustable from 0.5 to 10 s, meaning you set the interval between the main coil dropping out and the auxiliary contacts changing state — useful for sequenced shutdowns or post-run cooling on a conveyor drive. Rated control voltage is 200 to 240 V at both 50 and 60 Hz, so it works across the common European and North American control-power standards without a separate transformer tap.

Mounting is clip-on — it snaps directly onto the front of a SIRIUS contactor or reversing starter without tools, adding 45 mm width and 38 mm height to the assembly.

Frequently asked questions

What is the OFF-delay range?

The OFF-delay is adjustable from 0.5 to 10 seconds. The minimum ON period before the delay can start is 35 ms, and the recovery time between cycles is 150 ms.

What contact ratings does the auxiliary switch handle?

At 24 V it switches 1 A; at 125 V it switches 0.2 A; at 250 V it switches 0.1 A. These are the thermal current ratings for the auxiliary contacts.

What is the mechanical life expectancy?

Typical mechanical life is 10,000,000 operating cycles under rated conditions.
