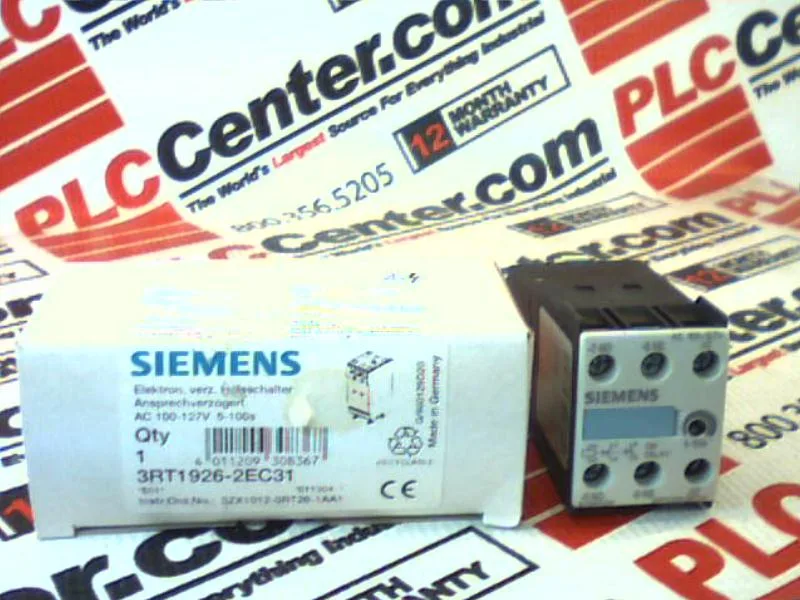

3RT1926-2EC31 - Siemens
MPN3RT1926-2EC31
Active
solid-state time-delayed front-side auxiliary switch Time range 5...100 s, 100... 127 V AC, 1 NO contact, 1 NC contact ON delay, for 3RT1
$40.64Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Control & Coil
| Parameter | Value |
|---|---|
| Control supply voltage type | AC |
| Rated value @ 50 Hz | 100 ... 127 V |
Connection & Mounting
| Parameter | Value |
|---|---|
| Conductor cross-section, solid | 18 ... 14 |
| Conductor cross-section, finely stranded w/ ferrule | 0.5 ... 2.5 m² |
| Mounting method | clip-on |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -40 ... +85 °C |
| Installation altitude, max. | 2 000 m |
Mechanical
| Parameter | Value |
|---|---|
| Width | 33 mm |
| Height | 46 mm |
| Depth | 73 mm |
MPN
3RT1926-2EC31
