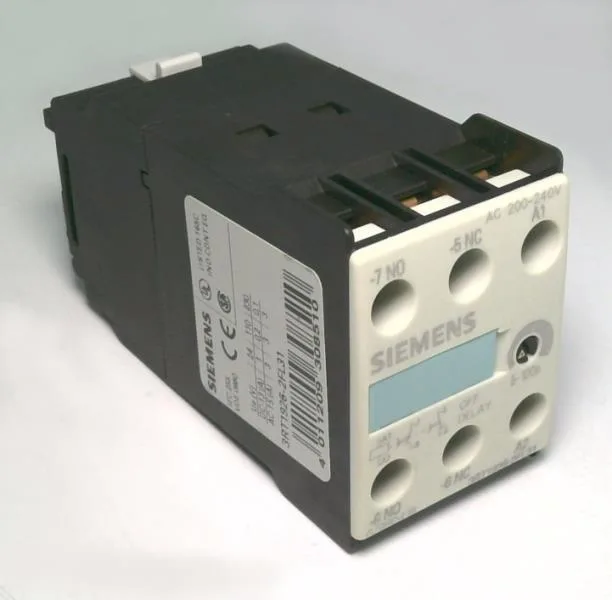

Siemens SIRIUS auxiliary switch 3RT1926-2FL31, clip-on mounting, adjustable time delay 5...100 s, rated 3 A.
| Parameter | Value |
|---|---|
| Control supply voltage type | AC |
| Rated value @ 50 Hz | 200 ... 240 V |
| Parameter | Value |
|---|---|
| Conductor cross-section, solid | 18 ... 14 |
| Conductor cross-section, finely stranded w/ ferrule | 0.5 ... 2.5 m² |
| Mounting method | clip-on |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -40 ... +85 °C |
| Installation altitude, max. | 2 000 m |
| Parameter | Value |
|---|---|
| Width | 33 mm |
| Height | 46 mm |
| Depth | 73 mm |
It provides an adjustable on-delay timer function, settable from 5 to 100 s via a potentiometer, with a recovery time of 150 ms. Rated thermal current I_th is 3 A. Mounts in any position, pollution degree 3, basic insulation. Dimensions: 33 mm wide, 46 mm high, 73 mm deep.
The 3RT1926-2FL31 is an active-production part. For a spare that fits the SIRIUS contactor range, this is the standard SKU. Quoted to order, lead time varies by quantity.
73 mm.
Solid and stranded wire from 18 to 14 AWG.
Rated thermal current I_th is 3 A.
