Siemens 3RT1935-5AD01 — Contactors

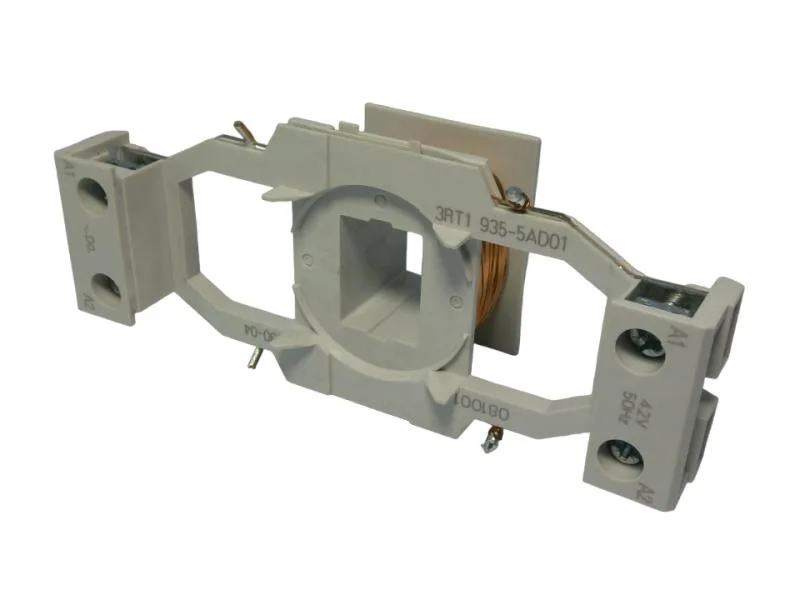

Siemens 3RT1935-5AD01 SIRIUS Magnet Coil, 42 V AC 50 Hz

MPN3RT1935-5AD01

Siemens SIRIUS magnet coil, 3RT1935-5AD01, for Size S2 contactors, 42 V AC 50 Hz, screw terminal, phased-out.

$28.80Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT1935-5AD01 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.8 ... 1.1
Rated value @ 50 Hz42 V

Product details

The Siemens 3RT1935-5AD01 is a SIRIUS magnet coil designed for Size S2 contactors, with a 42 V AC control supply at 50 Hz and screw-type terminals. This is the replacement coil for the contactor body — if the coil fails, you swap this, not the whole contactor. The 42 V AC coil draw is specified at 0.8... 1.1 A at 50 Hz, which is the inrush and hold current you need to budget for in the control transformer sizing.

Comparison with 3RT7036-1AH20

The closest functional peer is the 3RT7036-1AH20, also a Size S2 magnet coil with 42 V AC control voltage. The key difference: the 3RT7036-1AH20 draws 0.36 A at 50 Hz versus the 3RT1935-5AD01's 0.8... 1.1 A. That is a significant inrush current delta — the 3RT7036-1AH20 is a lower-power coil design. It will not drop into a panel wired for the 3RT1935-5AD01 without checking the control transformer capacity and the contactor's pick-up voltage under load. Same physical footprint (55 mm width, 115 mm depth, 112 mm height) and same screw-terminal mounting, but the coil characteristics differ enough that a direct swap may cause pick-up issues if the transformer is sized for the higher inrush of the original.

Frequently asked questions

Will 3RT1935-5AD01 fit a panel designed for 3RT7036-1AH20?

Physically yes — same Size S2 footprint (55 mm width, 115 mm depth, 112 mm height) and screw-terminal mounting. However, the inrush current differs significantly: 0.8... 1.1 A for the 3RT1935-5AD01 versus 0.36 A for the 3RT7036-1AH20. Verify the control transformer can handle the higher inrush before swapping.

MPN
3RT1935-5AD01
