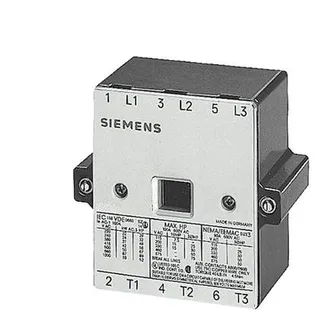

Siemens 3RT1946-6A — Contactors

3RT1946-6A Siemens SIRIUS Replacement Contact Kit, S3, 45 kW

MPN3RT1946-6A

Siemens SIRIUS, replacement contact pieces, 3RT1946-6A, for contactor frame size S3, 3-pole, AC-3 45 kW, 3 NO main contacts, consists of 3 movable and 6 fixed contacts with mounting parts.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT1946-6A — Specifications
ParameterValue
Substance prohibitance07/01/2006

Product details

The Siemens 3RT1946-6A is a replacement contact-piece kit for a SIRIUS S3-frame power contactor. It covers the main contacts only — 3 NO poles — and ships as three movable and six fixed contacts plus the mounting hardware. The kit is rated for AC-3 duty at 45 kW, which means it handles the inrush and breaking of squirrel-cage motors up to that load. If you are rebuilding an S3 contactor in a panel, this is the factory-matched set of silver-alloy tips and arc runners, not a generic substitute.

The 3RT1946-6A is marked as a phased-out product. The official successor is the SIRIUS 3RT2 contactor series — meaning if you are stocking spares for a legacy S3-based panel, this kit is the correct consumable for the installed base, but new designs should move to the 3RT2. No last-time-buy date is recorded, so treat it as a critical-spare item — one in the cabinet before it fails.

Frequently asked questions

What is the closest functional second-source for the 3RT1946-6A?

The official successor is the SIRIUS 3RT2 contactor series. For a direct drop-in replacement of the contact pieces, no second-source exists — the 3RT1946-6A is the factory service kit for the S3 frame. If you need a complete contactor, the 3RT2 series is the replacement path.

Will the 3RT1946-6A drop into a panel specified around the 3RT1044-1FB46?

The 3RT1044-1FB46 is a complete S3-frame power contactor with screw terminals and a 24 V DC coil. The 3RT1946-6A is the replacement contact kit for that same S3 frame. If you are rebuilding a 3RT1044-1FB46, this kit is the correct set of main contacts. No rewiring is needed — it uses the same mounting and terminal hardware.

MPN
3RT1946-6A
