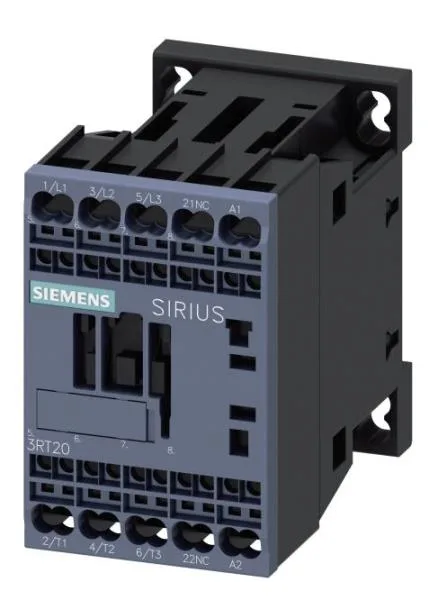

Siemens 3RT2015-2AP02 SIRIUS Power Contactor, Size S00, 10A

MPN3RT2015-2AP02
Active

Siemens SIRIUS 3RT2015-2AP02 power contactor, Size S00, 10 A at 24 V rated value, spring-type coil terminals, screw and snap-on mounting onto 35 mm DIN rail.

$16.51Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT2015-2AP02 — Identification
ParameterValue
Contactor frame sizeS00
3RT2015-2AP02 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V6.5 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V0.75 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2015-2AP02 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.25
Rated value @ 50 Hz230 V
3RT2015-2AP02 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2015-2AP02 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 35A (690V,100kA), aM: 20A (690V,100kA), BS88: 35A (415V,80kA)
Short-circuit coordination type 2, fusegG: 20A (690V,100kA), aM: 16A (690V, 100kA), BS88: 20A (415V, 80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2015-2AP02 — Connection & Mounting
ParameterValue
Main circuit connectionspring-loaded terminals
Aux. / control circuit connectionspring-loaded terminals
Conductor cross-section, solid0.5 ... 4 mm²
Conductor cross-section, solid or stranded2x (0,5 ... 4 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2015-2AP02 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2015-2AP02 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2015-2AP02 — Mechanical
ParameterValue
Width45 mm
Height70 mm
Depth73 mm
3RT2015-2AP02 — Specifications
ParameterValue
At AC4 ... 15 ms

Product details

The Size S00 footprint — 45 mm wide, 70 mm tall, 73 mm deep — fits tight enclosures without giving up switching capacity.

The 3RT2015-2AP02 carries maximum switching frequencies by duty class: 1,000 operations per hour at AC-1 (resistive), 750/h at AC-2 and AC-3 (motor starting/running), and 250/h at AC-4 (plugging/inching). The AC-3e rating matches the AC-3 figure at 750/h. These numbers tell you how fast you can cycle the contactor under load without overheating — for a conveyor line running a motor start every few seconds, the AC-3 750/h limit is your ceiling. The DC switching capability is broken out by voltage: 10 A at 24 V, 2 A at 48 V and 60 V, 1 A at 110 V, 0.9 A at 125 V, 0.3 A at 220 V, and 0.14 A at 440 V. At 400 V AC it's rated 3 A. That's a wide DC range — useful for battery-backed systems or DC bus switching in a panel.

That's handy when you're shoehorning it into a crowded panel and the rail isn't perfectly vertical. Wire sizes accepted: solid or stranded 0.5 to 4 mm², or 2x (0.5 to 4 mm²) for daisy-chaining. Keep that in mind when laying out adjacent components.

That covers most indoor panel environments without derating concerns.

Frequently asked questions

What are the key ratings I need to know for sourcing?

The main DC rating is 10 A at 24 V. It's a Size S00 contactor (45x70x73 mm) with spring-type coil terminals and an auxiliary switch. Mounts on 35 mm DIN rail.

Will the 3RT2015-2AP02 drop into a panel designed for the 3RT2015-2BF42?

Both are Size S00 SIRIUS contactors with the same DIN rail mounting and similar dimensions. The main difference is the coil voltage and switching ratings — verify your control voltage and load current against the 3RT2015-2AP02's 24 V DC 10 A rating before swapping.

What compliance documentation is available for this part?

As a Siemens SIRIUS product, it carries the standard CE, UL, and CSA approvals typical for this series. Specific RoHS/REACH declarations are available through the manufacturer's documentation portal.
