Siemens 3RT2015-2FB44-3MA0 — Contactors

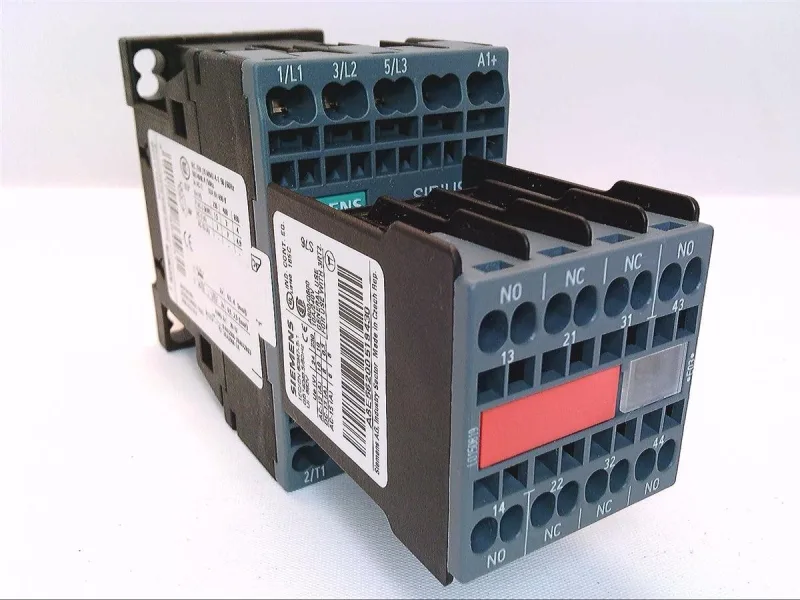

Siemens 3RT2015-2FB44-3MA0 SIRIUS S00 Power Contactor, 24 V

MPN3RT2015-2FB44-3MA0
Active

Siemens SIRIUS S00 power contactor, 3RT2015-2FB44-3MA0, 24 V DC coil, spring-type terminals, 6 A rated at 24 V DC, screw and snap-on mounting on 35 mm DIN rail.

$31.75Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT2015-2FB44-3MA0 — Identification
ParameterValue
Contactor frame sizeS00
3RT2015-2FB44-3MA0 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V6.5 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V0.75 hp
Rated value @ 24 V6 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2015-2FB44-3MA0 — Control & Coil
ParameterValue
Control supply voltage typeDC
3RT2015-2FB44-3MA0 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2015-2FB44-3MA0 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 35A (690V,100kA), aM: 20A (690V,100kA), BS88: 35A (415V,80kA)
Short-circuit coordination type 2, fusegG: 20A (690V,100kA), aM: 16A (690V, 100kA), BS88: 20A (415V, 80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2015-2FB44-3MA0 — Connection & Mounting
ParameterValue
Main circuit connectionspring-loaded terminals
Aux. / control circuit connectionspring-loaded terminals
Conductor cross-section, solid0.5 ... 4 mm²
Conductor cross-section, solid or stranded2x (0,5 ... 4 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2015-2FB44-3MA0 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2015-2FB44-3MA0 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2015-2FB44-3MA0 — Mechanical
ParameterValue
Width45 mm
Height70 mm
Depth121 mm

Product details

SIRIUS S00 power contactor with spring terminals

The Siemens 3RT2015-2FB44-3MA0 is a SIRIUS S00 power contactor rated for 24 V DC coil voltage, with a rated current of 6 A at 24 V DC. The contactor is designed for screw and snap-on mounting onto 35 mm DIN rail per DIN EN 60715, and its mounting position allows ±180° rotation on a vertical surface plus ±22.5° tilt forward/backward.

Duty-cycle and switching frequency

Maximum switching frequency depends on the duty class: 1 000 operations per hour at AC-1 (resistive load), 750/h at AC-2 and AC-3 (motor starting/running), and 250/h at AC-4 (plugging/inching). The AC-3e rating also allows 750/h.

The contactor has no auxiliary switch block, so any auxiliary contacts must be added separately.

Frequently asked questions

What is the closest functional second-source for 3RT2015-2FB44-3MA0?

The closest functional peer is 3RT2036-1AC20-ZX95, but it is a larger frame (S2 vs S00) with different coil voltage and terminal style. The 3RT2015-2FB44-3MA0 is a S00 frame with a 24 V DC coil and spring terminals; the 3RT2036-1AC20-ZX95 will not drop into the same panel footprint without rewiring and resizing the DIN rail space.

Where can I buy 3RT2015-2FB44-3MA0?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

What is the depth of 3RT2015-2FB44-3MA0?

The depth is 121 mm.

What solid conductor size does 3RT2015-2FB44-3MA0 accept?

It accepts solid conductors from 0.5 to 4 mm² (2x per terminal).
