Siemens 3RT2016-1AB01 — Contactors

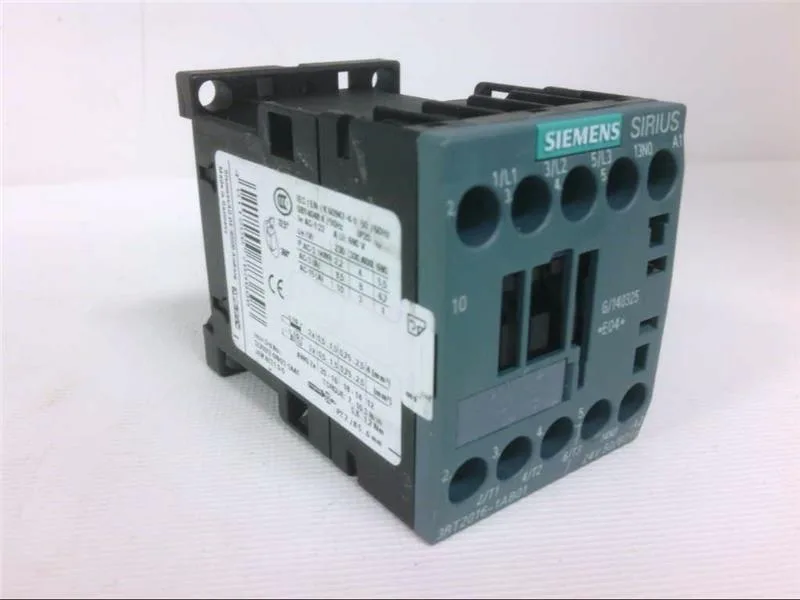

Siemens 3RT2016-1AB01 SIRIUS Power Contactor, Size S00, 24 V

MPN3RT2016-1AB01
Active

Siemens SIRIUS 3RT2016-1AB01 power contactor, size S00, 24 V DC coil, screw-type terminals, 45 x 58 x 73 mm, rated 10 A at 24 V.

$17.78Ref. price · indicative, final on quote
Siemens 3RT2016-1AB01 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT2016-1AB01 — Identification
ParameterValue
Contactor frame sizeS00
3RT2016-1AB01 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V8.5 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V1 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2016-1AB01 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.25
Rated value @ 50 Hz24 V
3RT2016-1AB01 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2016-1AB01 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 35A (690V,100kA), aM: 20A (690V,100kA), BS88: 35A (415V,80kA)
Short-circuit coordination type 2, fusegG: 20A (690V,100kA), aM: 16A (690V, 100kA), BS88: 20A (415V, 80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2016-1AB01 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid0.5 ... 4 mm²
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2016-1AB01 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2016-1AB01 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2016-1AB01 — Mechanical
ParameterValue
Width45 mm
Height58 mm
Depth73 mm
3RT2016-1AB01 — Specifications
ParameterValue
At AC4 ... 15 ms

Product details

Size and Mounting

The 3RT2016-1AB01: This SIRIUS power contactor (size S00) measures 45 mm wide by 58 mm tall by 73 mm deep.

Ratings and Switching Capacity

The coil is 24 V rated at 10 A, with screw-type terminals for the magnet coil. At 48 V it's rated 2 A, at 60 V 2 A, at 110 V 1 A, at 125 V 0.9 A, at 220 V 0.3 A, at 230 V 1 hp, at 400 V 3 A, and at 440 V 0.2 A. The main contacts are rated 20-12. Switching frequency maximums: 1000 1/h at AC-1, 750 1/h at AC-2, 750 1/h at AC-3, 750 1/h at AC-3e, and 250 1/h at AC-4. Arcing time is 10-15 ms; at AC, switching time is 4-15 ms. Typical mechanical life of the contactor is 30,000,000 operations.

Wiring and Connections

Terminals accept solid or stranded wire from 0.5 to 4 mm², and combinations of 2x (0.5 to 1.5 mm²), 2x (0.75 to 2.5 mm²), or 2x 4 mm².

Frequently asked questions

What is the depth of this contactor?

The depth is 73 mm.

What wire sizes does it accept?

It accepts solid or stranded wire from 0.5 to 4 mm², and combinations of 2x (0.5 to 1.5 mm²), 2x (0.75 to 2.5 mm²), or 2x 4 mm².
