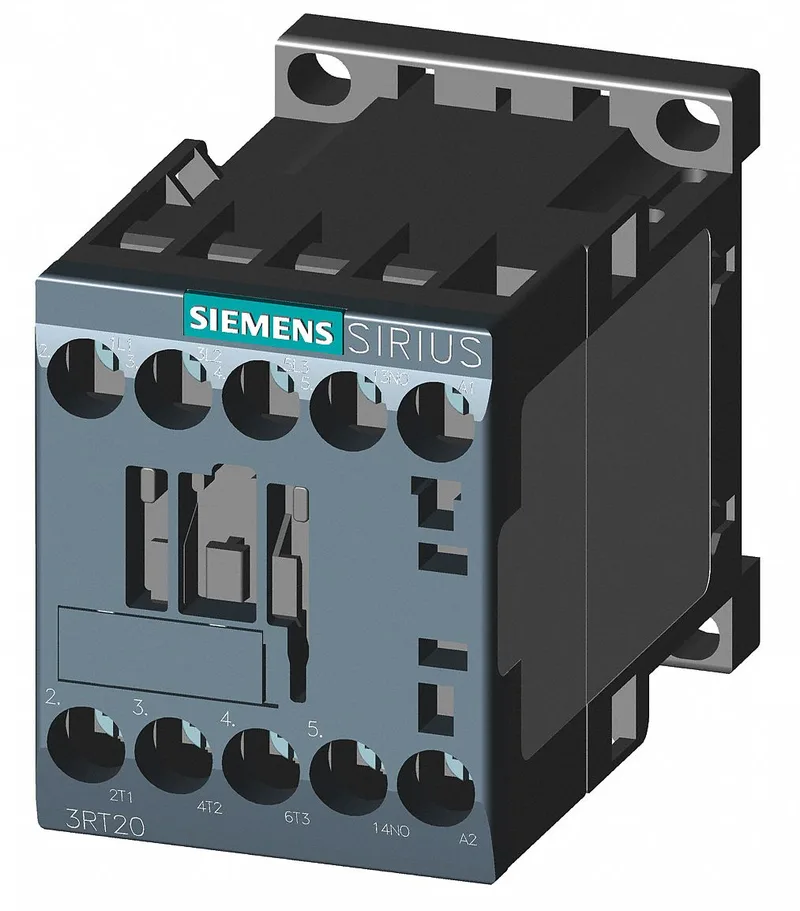

Siemens 3RT2016-1AN61 SIRIUS Power Contactor, Size S00, 24 V

MPN3RT2016-1AN61

Active

Siemens SIRIUS power contactor, 3RT2016-1AN61, Size S00, 24 VDC screw-type coil, 45 mm wide, 73 mm deep, 58 mm high.

$19.05Ref. price · indicative, final on quote

Add to RFQ

Siemens 3RT2016-1AN61 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT2016-1AN61 — Identification
Parameter	Value
Contactor frame size	S00

3RT2016-1AN61 — Ratings & Performance
Parameter	Value
Rated operational current, AC-12, max.	10 A
Rated operational current, AC-4 @ 400 V	8.5 A
Rated value @ 400 V	3 A
Rated value @ 500 V	2 A
Rated value @ 690 V	1 A
Rated value @ 230 V	1 hp
Rated value @ 24 V	10 A
Rated value @ 60 V	2 A
Rated value @ 110 V	1 A
Rated value @ 220 V	0.3 A

3RT2016-1AN61 — Control & Coil
Parameter	Value
Control supply voltage type	AC
Rated value @ 50 Hz	0.24
Rated value @ 50 Hz	200 V

3RT2016-1AN61 — Contacts & Poles
Parameter	Value
Main poles	3
Main NO contacts	3
Auxiliary contact reliability	1 faulty switching per 100 million (17 V, 1 mA)

3RT2016-1AN61 — Protection & Coordination
Parameter	Value
Short-circuit coordination type 1, fuse	gG: 35A (690V,100kA), aM: 20A (690V,100kA), BS88: 35A (415V,80kA)
Short-circuit coordination type 2, fuse	gG: 20A (690V,100kA), aM: 16A (690V, 100kA), BS88: 20A (415V, 80kA)
Aux. switch short-circuit protection, fuse	gG: 10 A (500 V, 1 kA)

3RT2016-1AN61 — Connection & Mounting
Parameter	Value
Main circuit connection	screw-type terminals
Aux. / control circuit connection	screw-type terminals
Conductor cross-section, solid	0.5 ... 4 mm²
Conductor cross-section, solid or stranded	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting method	screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mounting	Yes

3RT2016-1AN61 — Durability
Parameter	Value
Durability (operating cycles, typ.)	30 000 000
Durability with aux. switch block (cycles, typ.)	10 000 000

3RT2016-1AN61 — Environmental
Parameter	Value
Operating temperature range	-25 ... +60 °C
Storage temperature range	-55 ... +80 °C
Installation altitude, max.	2 000 m

3RT2016-1AN61 — Mechanical
Parameter	Value
Width	45 mm
Height	58 mm
Depth	73 mm

3RT2016-1AN61 — Specifications
Parameter	Value
At AC	4 ... 15 ms

Product details

Integrator's note on the 3RT2016-1AN61

The switching frequency varies by duty: up to 1000 cycles/hour at AC-1 (resistive), 750 cycles/hour at AC-2 and AC-3 (motor starting/running), and 250 cycles/hour at AC-4 (plugging/reversing). For a line-down replacement, the wire range accepts solid or stranded conductors from 0.5 to 4 mm², including dual conductors up to 2x 2.5 mm² — common for panel wiring. The auxiliary switch is included, with main contact options between 20 and 12 (likely referring to contact configuration).
