Siemens 3RT2016-1AG61 — Contactors

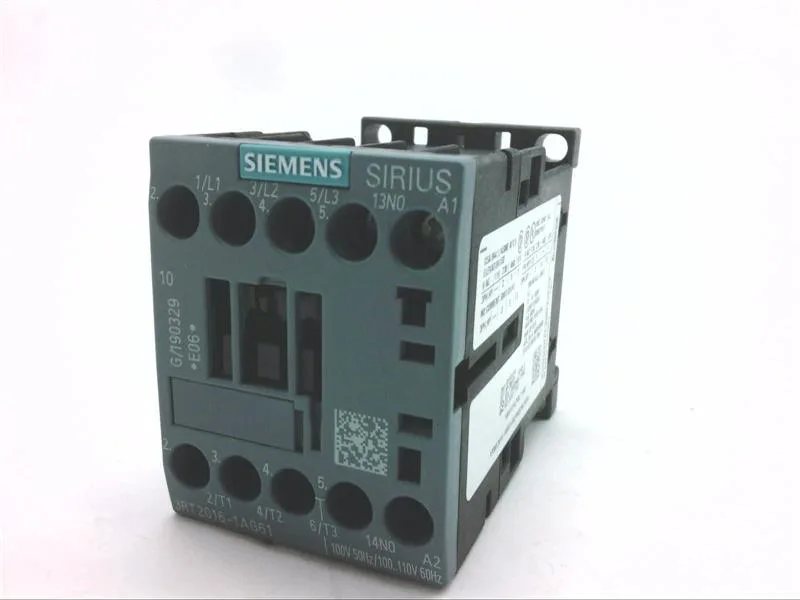

Siemens 3RT2016-1AG61 SIRIUS Power Contactor, Size S00, 45mm

MPN3RT2016-1AG61
Active

Siemens SIRIUS 3RT2016-1AG61 power contactor, Size S00, screw-type coil terminals, 45 x 58 x 73 mm, screw and snap-on mounting onto 35 mm DIN rail.

$19.05Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT2016-1AG61 — Identification
ParameterValue
Contactor frame sizeS00
3RT2016-1AG61 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V8.5 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V1 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2016-1AG61 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.24
Rated value @ 50 Hz100 V
3RT2016-1AG61 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2016-1AG61 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 35A (690V,100kA), aM: 20A (690V,100kA), BS88: 35A (415V,80kA)
Short-circuit coordination type 2, fusegG: 20A (690V,100kA), aM: 16A (690V, 100kA), BS88: 20A (415V, 80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2016-1AG61 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid0.5 ... 4 mm²
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2016-1AG61 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2016-1AG61 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2016-1AG61 — Mechanical
ParameterValue
Width45 mm
Height58 mm
Depth73 mm
3RT2016-1AG61 — Specifications
ParameterValue
At AC4 ... 15 ms

Product details

This is a current-production part — no end-of-life notice applies — so it remains a standard BOM line item for new panels and replacement spares alike.

The contactor carries auxiliary contact ratings that govern its use in control circuits: 10 A at 24 V, 2 A at 48 V and 60 V, 1 A at 110 V, and 0.9 A at 125 V. At 400 V the auxiliary contact is rated 3 A. These are the numbers that decide whether the contactor can handle the pilot devices or PLC outputs in your panel — if your control voltage is 48 VDC, the 2 A limit is the one to stay under. This is a standard wiring practice for panel builders — no special crimp tools needed, just a screwdriver.

No derating curve is published here, but the 60 °C upper operating limit covers most indoor panel environments without issue.

Frequently asked questions

What are the key dimensions of the 3RT2016-1AG61?

Width 45 mm, height 58 mm, depth 73 mm. Clearances: 10 mm up/down/forward, 6 mm at sides.

What wire sizes does the 3RT2016-1AG61 accept?

Screw-type terminals accept solid or stranded wire from 0.5 to 4 mm², or two conductors per terminal.

What is the auxiliary contact rating at 24 V?

10 A at 24 V rated value.
