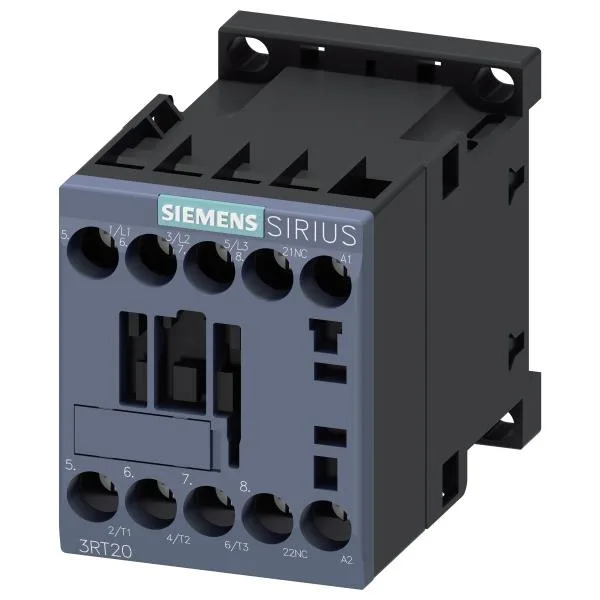

It's built for switching motor loads and resistive loads in control panels, with a rated operational current of 10 A at 24 V, 3 A at 400 V, and 7.6 A at 480 V. The AC-1 resistive load rating supports up to 1,000 operating cycles per hour, while the AC-3 motor switching rating handles 750 cycles per hour — the figure that governs real motor duty.
The 45 mm width, 58 mm height, and 73 mm depth mean it occupies a standard S00 footprint — no surprises in a crowded panel.
Wiring and terminations
Screw-type terminals on both main contacts and coil. Accepts solid or stranded wire from 0.5 to 4 mm², with dual-wire combinations up to 2x 4 mm².
Mechanical life is typical 30 million operations, which outlasts most electrical endurance limits in motor-switching duty.
