Siemens 3RT2016-1FB41 — Contactors

Siemens 3RT2016-1FB41 SIRIUS Contactor, S00, 24 VDC

MPN3RT2016-1FB41
Active

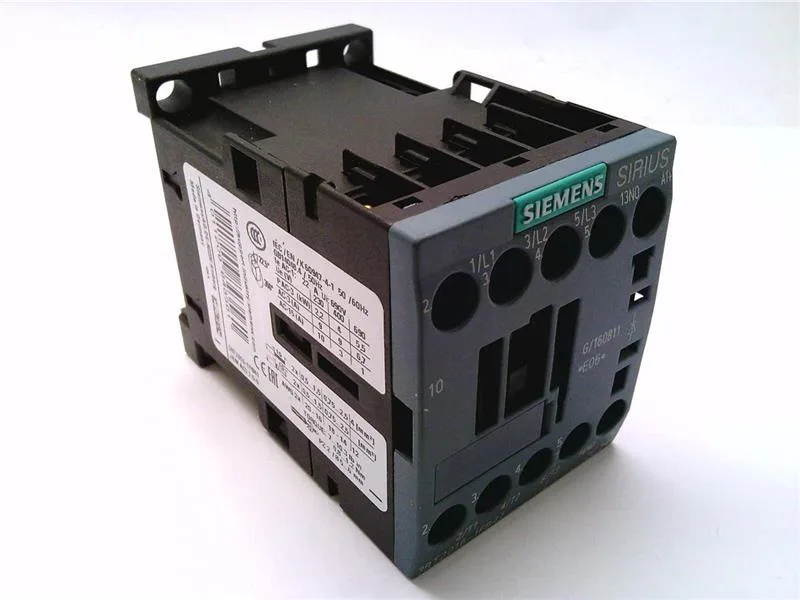

Siemens SIRIUS 3RT2016-1FB41 power contactor, size S00, 24 V DC coil, screw-type terminals, includes auxiliary switch.

$22.86Ref. price · indicative, final on quote
Siemens 3RT2016-1FB41 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT2016-1FB41 — Identification
ParameterValue
Contactor frame sizeS00
3RT2016-1FB41 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V8.5 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V1 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2016-1FB41 — Control & Coil
ParameterValue
Control supply voltage typeDC
3RT2016-1FB41 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2016-1FB41 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 35A (690V,100kA), aM: 20A (690V,100kA), BS88: 35A (415V,80kA)
Short-circuit coordination type 2, fusegG: 20A (690V,100kA), aM: 16A (690V, 100kA), BS88: 20A (415V, 80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2016-1FB41 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid0.5 ... 4 mm²
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2016-1FB41 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2016-1FB41 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2016-1FB41 — Mechanical
ParameterValue
Width45 mm
Height58 mm
Depth73 mm

Product details

Rated for AC-3 switching at up to 750 operations per hour, this contactor handles motor starting duty within its current range. Operating temperature spans -25 to +60 °C, with storage from -55 to +80 °C.

Key ratings in context

Coil pickup threshold is 0.8 of the rated 24 V DC. Switching current at rated coil voltage is 10 A; arcing time is 10 to 15 ms.

Size and mounting

The S00 frame measures 45 mm wide, 58 mm high, and 73 mm deep. Mounting position allows ±180° rotation on vertical surfaces and ±22.5° tilt forward/backward. Clearances: 10 mm upwards, 10 mm forwards, 10 mm downwards, 6 mm to the side.

Frequently asked questions

What is the depth of this contactor?

The depth is 73 mm, as listed for the S00 frame.

What solid and stranded wire sizes does it accept?

For solid and stranded: 0.5 to 4 mm². For two conductors: 2x (0.5 to 1.5 mm²), 2x (0.75 to 2.5 mm²), or 2x 4 mm².

Will the 3RT2016-1FB41 drop into a panel designed for a 3RT2024-2BB40?

No. The 3RT2016 is size S00 (45 mm wide), while the 3RT2024 is size S0 (wider). They are not physically interchangeable without modifying the mounting and wiring.
