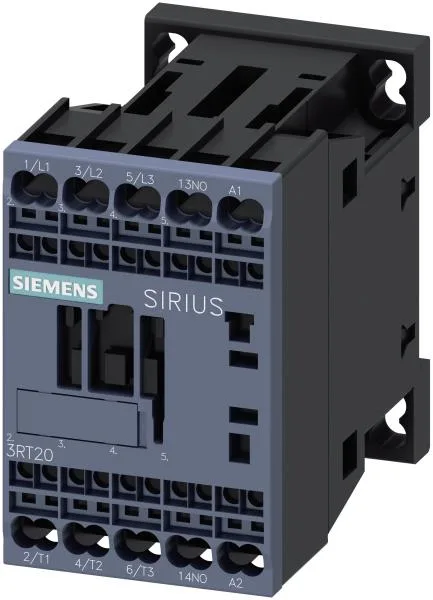

SIRIUS 3RT2016-2VB41 — coupling contactor, size S00
The Siemens SIRIUS 3RT2016-2VB41 is a size S00 coupling contactor with a 24 VDC coil rated at 10 A. Spring-type terminals on the magnet coil simplify wiring — strip length and ferrule size follow the standard 0.5 to 4 mm² solid or stranded range. The 45 mm width and 73 mm depth fit a standard 35 mm DIN rail envelope per DIN EN 60715, with screw or snap-on fastening. Rated operational current at 24 V DC is 10 A; at 400 V AC it drops to 3 A. The contactor handles AC-3 switching at up to 750 operations per hour, AC-4 at 250 per hour. Arcing time sits between 10 and 15 ms. Ambient operating range is -25 to +60 °C, storage from -55 to +80 °C.
Mounting and integration
Mounts on 35 mm DIN rail per DIN EN 60715, screw or snap-on. The mounting position allows +/-180° rotation on a vertical surface and +/-22.5° tilt forward/backward. Clearance: 10 mm upward, 10 mm forward, 10 mm downward, 6 mm at the side. No auxiliary switch included — plan for a separate block if feedback is needed.
