Siemens 3RT2017-1AG61 — Contactors

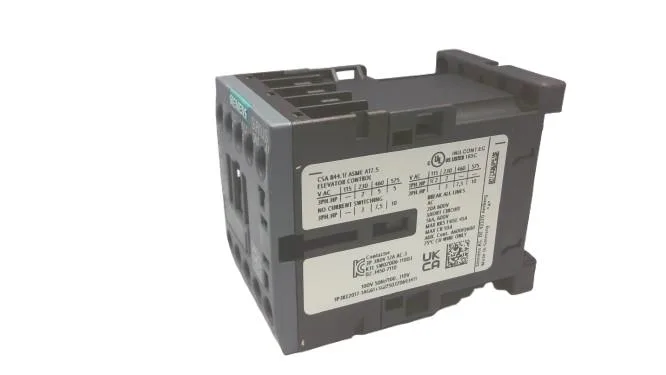

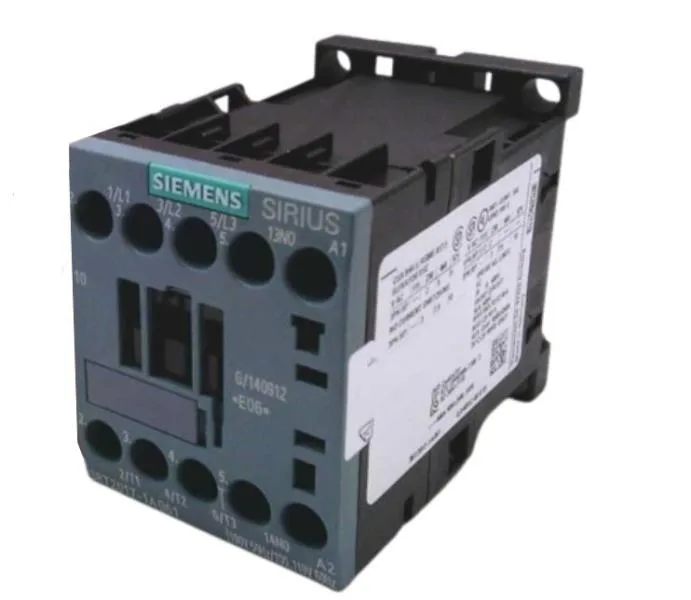

Siemens SIRIUS 3RT2017-1AG61 Power Contactor, Size S00, 24 V

MPN3RT2017-1AG61
Active

Siemens SIRIUS 3RT2017-1AG61 power contactor, Size S00, 24 VDC coil, screw-type terminals, screw and snap-on mounting onto 35 mm DIN rail (DIN EN 60715), depth 73 mm.

$22.86Ref. price · indicative, final on quote
Siemens 3RT2017-1AG61 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT2017-1AG61 — Identification
ParameterValue
Contactor frame sizeS00
3RT2017-1AG61 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V8.5 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V2 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2017-1AG61 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.24
Rated value @ 50 Hz100 V
3RT2017-1AG61 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2017-1AG61 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 50A (690V,100kA), aM: 20A (690V,100kA), BS88: 35A (415V,80kA)
Short-circuit coordination type 2, fusegG: 20A (690V,100kA), aM: 16A (690V, 100kA), BS88: 20A (415V, 80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2017-1AG61 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid0.5 ... 4 mm²
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2017-1AG61 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2017-1AG61 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2017-1AG61 — Mechanical
ParameterValue
Width45 mm
Height58 mm
Depth73 mm
3RT2017-1AG61 — Specifications
ParameterValue
At AC4 ... 15 ms

Product details

The Siemens SIRIUS 3RT2017-1AG61 is a Size S00 power contactor with a 24 VDC magnet coil and screw-type terminals. It mounts via screw or snap-on onto 35 mm DIN rail per DIN EN 60715, fitting a standard panel footprint at 45 mm wide and 73 mm deep.

Ratings and operating conditions

Rated for AC-1 resistive loads at 1000 operating cycles per hour, AC-3 motor switching at 750 ops/h, and AC-4 inching/plugging at 250 ops/h. The AC-3e rating matches the 750 ops/h figure. Mechanical life is typical 30 million operations. Ambient operating range -25 to +60 °C; storage range -55 to +80 °C.

Mounting position allows +/-180° rotation on a vertical surface and +/-22.5° tilt forward/backward on vertical. Clearances: 10 mm upward, 10 mm forward, 10 mm downward, 6 mm at the side. Accepts solid or stranded wire: 2x (0.5...1.5 mm²), 2x (0.75...2.5 mm²), or 2x 4 mm². Stranded alone 0.5...4 mm².

Frequently asked questions

Where can I buy 3RT2017-1AG61 and how do I get a price?

The 3RT2017-1AG61 is sourced and quoted to order against an RFQ through independent distribution; availability and current pricing are confirmed at quote time.

What is 3RT2017-1AG61's listed depth (73 mm) on this component line?

The listed depth is 73 mm.

What is 3RT2017-1AG61's listed solid (0.5... 4 mm²) on this component line?

The solid wire range is 0.5... 4 mm².

Will 3RT2017-1AG61 drop into a panel that was specified around 3RT2016-1AH01 without rewiring?

Both are Size S00 contactors with screw terminals and the same DIN rail mounting, so the 3RT2017-1AG61 will physically fit the same footprint. However, the coil voltage differs (24 VDC vs the 3RT2016-1AH01's 110 VAC 50/60 Hz), so the control circuit must match the new coil voltage.
