Siemens 3RT2017-1AN61 — Contactors

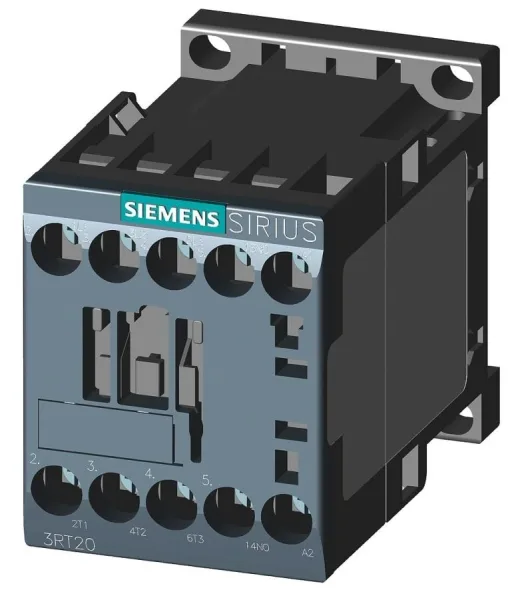

Siemens 3RT2017-1AN61 SIRIUS Power Contactor S00, 45 mm

MPN3RT2017-1AN61
Active

Siemens SIRIUS power contactor, 3RT2017-1AN61, size S00, 45 mm width, screw-type coil terminals, DIN rail mount.

$22.86Ref. price · indicative, final on quote
Siemens 3RT2017-1AN61 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT2017-1AN61 — Identification
ParameterValue
Contactor frame sizeS00
3RT2017-1AN61 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V8.5 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V2 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2017-1AN61 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.24
Rated value @ 50 Hz200 V
3RT2017-1AN61 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2017-1AN61 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 50A (690V,100kA), aM: 20A (690V,100kA), BS88: 35A (415V,80kA)
Short-circuit coordination type 2, fusegG: 20A (690V,100kA), aM: 16A (690V, 100kA), BS88: 20A (415V, 80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2017-1AN61 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid0.5 ... 4 mm²
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2017-1AN61 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2017-1AN61 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2017-1AN61 — Mechanical
ParameterValue
Width45 mm
Height58 mm
Depth73 mm
3RT2017-1AN61 — Specifications
ParameterValue
At AC4 ... 15 ms

Product details

Contactor Overview

The Siemens 3RT2017-1AN61 is a SIRIUS power contactor in size S00, with a 45 mm width, 58 mm height, and 73 mm depth. The magnet coil uses screw-type terminals. It mounts on 35 mm DIN rail per DIN EN 60715, with mounting position flexibility: ±180° rotation on a vertical surface and ±22.5° tilt forward/backward.

Installation Clearances & Wiring

These ensure proper ventilation and arc containment. The screw terminals accept solid or stranded conductors from 0.5 mm² to 4 mm², and can take two wires of the same cross-section (e.g., 2× 1.5 mm² or 2× 4 mm²).

Frequently asked questions

What is the mounting position for 3RT2017-1AN61?

The contactor can be rotated ±180° on a vertical mounting surface and tilted forward/backward by ±22.5° on a vertical mounting surface.

What wire sizes fit the terminals?

Solid and stranded conductors from 0.5 mm² to 4 mm² are accepted; two wires of the same cross-section can be terminated together (e.g., 2× 1.5 mm² or 2× 4 mm²).
