The 24 V DC coil draws 10 A at rated value, with a pick-up dropout characteristic typical of SIRIUS contactors — the initial pull-in value is 0.8, and arcing time runs 10 to 15 ms.

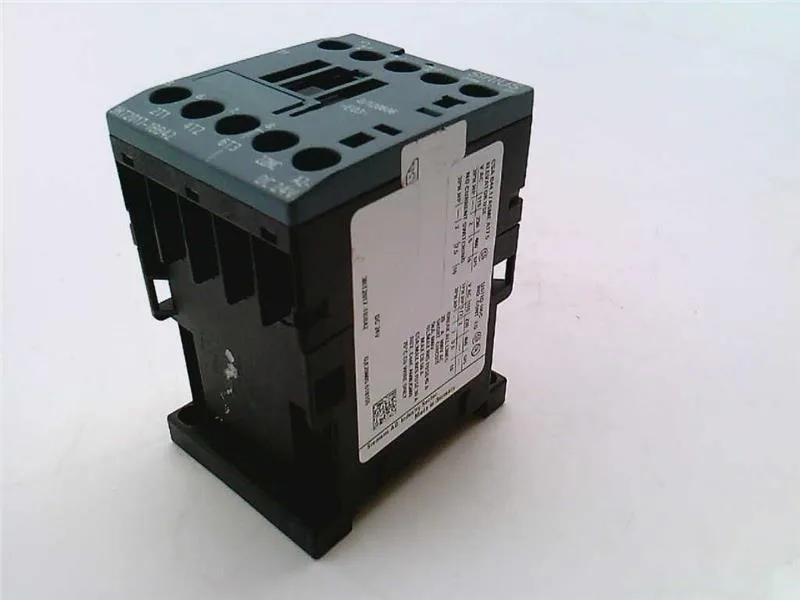

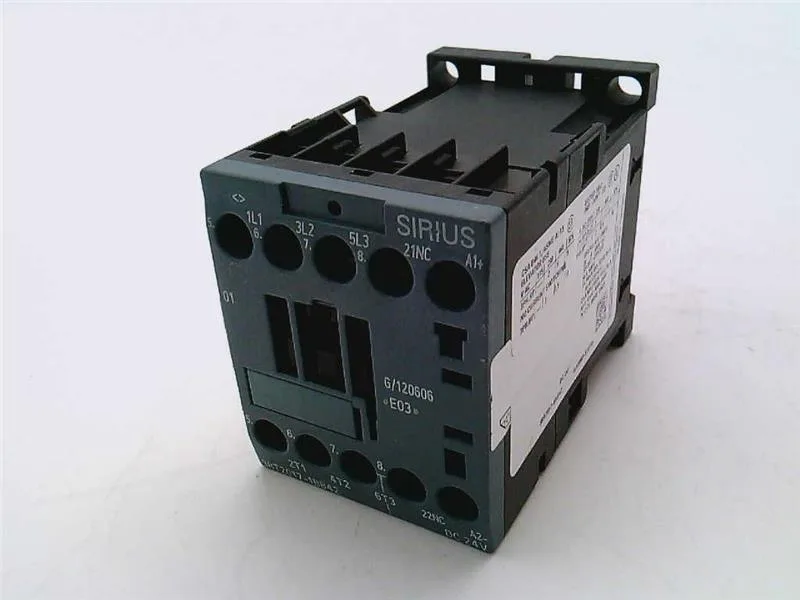

The contactor occupies a 45 mm wide by 58 mm high by 73 mm deep envelope. The screw-type terminals accept solid or stranded wire: 0.5 to 4 mm² single, or 2x (0.5 to 1.5 mm²), 2x (0.75 to 2.5 mm²), and 2x 4 mm². This fits standard panel gland plates without special adapters.
Rated operational current at AC-1 (resistive load) is 1,000 operations per hour maximum; at AC-3 (motor starting) it's 750 ops/h; at AC-4 (plugging/inching) it's 250 ops/h. The AC-3e rating also allows 750 ops/h. For DC switching at 24 V rated value, the contactor handles 10 A; at 48 V it's 2 A; at 60 V it's 2 A; at 110 V it's 1 A; at 125 V it's 0.9 A; at 220 V it's 0.3 A; at 400 V it's 3 A. The auxiliary switch is included. Mechanical life is typical 30 million operations. These ratings define the real-world duty — the AC-3 figure governs motor switching, while the DC derating curve matters for solenoid or brake loads.
