Siemens 3RT2017-1FB44-3MA0 — Contactors

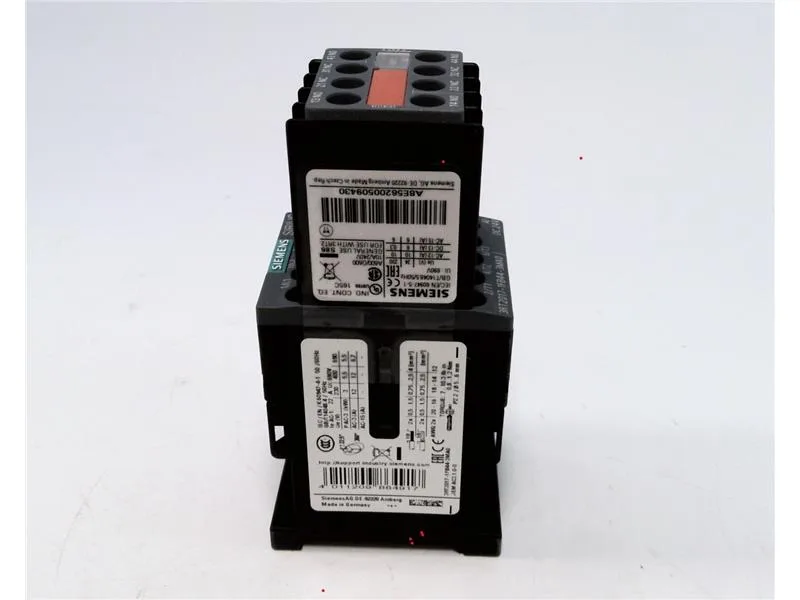

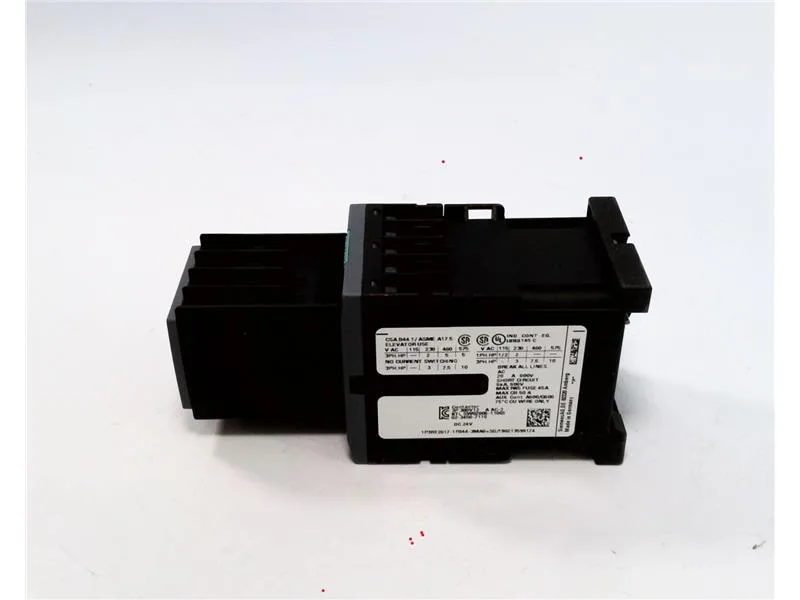

Siemens SIRIUS 3RT2017-1FB44-3MA0 Power Contactor, Size S00,

MPN3RT2017-1FB44-3MA0
Active

Siemens SIRIUS power contactor, Size S00, 24 VDC coil, screw-type terminals, snap-on DIN rail mounting, 45 mm width, 58 mm height, 117 mm depth.

$36.83Ref. price · indicative, final on quote
Siemens 3RT2017-1FB44-3MA0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT2017-1FB44-3MA0 — Identification
ParameterValue
Contactor frame sizeS00
3RT2017-1FB44-3MA0 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V8.5 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V2 hp
Rated value @ 24 V6 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2017-1FB44-3MA0 — Control & Coil
ParameterValue
Control supply voltage typeDC
3RT2017-1FB44-3MA0 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2017-1FB44-3MA0 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 50A (690V,100kA), aM: 20A (690V,100kA), BS88: 35A (415V,80kA)
Short-circuit coordination type 2, fusegG: 20A (690V,100kA), aM: 16A (690V, 100kA), BS88: 20A (415V, 80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2017-1FB44-3MA0 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid0.5 ... 4 mm²
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2017-1FB44-3MA0 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2017-1FB44-3MA0 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2017-1FB44-3MA0 — Mechanical
ParameterValue
Width45 mm
Height58 mm
Depth117 mm

Product details

What this SIRIUS contactor brings to the panel

The 24 VDC coil pulls in at 80% of rated voltage and holds reliably across the -25 to +60 °C operating range. Screw-type terminals on both coil and main contacts accept solid or stranded wire from 0.5 to 4 mm², with dual-wire capacity up to 2x 2.5 mm². Switching frequency tops out at 1,000 cycles per hour for resistive loads (AC-1), 750 cycles/h for motor starting (AC-3), and 250 cycles/h for plugging or inching (AC-4).

Dimensions, clearances, and mounting flexibility

Minimum air clearances: 10 mm upward and forward, 10 mm downward, 6 mm to the side. This helps when routing cables in crowded enclosures.

The 3RT2017-1FB44-3MA0 is listed as current production.

Frequently asked questions

What is the depth of 3RT2017-1FB44-3MA0?

The depth is 117 mm, with a width of 45 mm and height of 58 mm — a compact S00 footprint.

What wire sizes does the screw terminal accept?

Solid or stranded wire from 0.5 to 4 mm², and dual-wire combinations like 2x 0.5–1.5 mm², 2x 0.75–2.5 mm², or 2x 4 mm².

Will 3RT2017-1FB44-3MA0 drop into a panel specified around 3RT2016-1AG62?

Both are Size S00 contactors with the same DIN-rail footprint and screw-terminal wiring, so mechanical fit is identical. The difference is the coil voltage — 24 VDC on this part versus the 3RT2016-1AG62's coil. Verify the control voltage before swapping.
