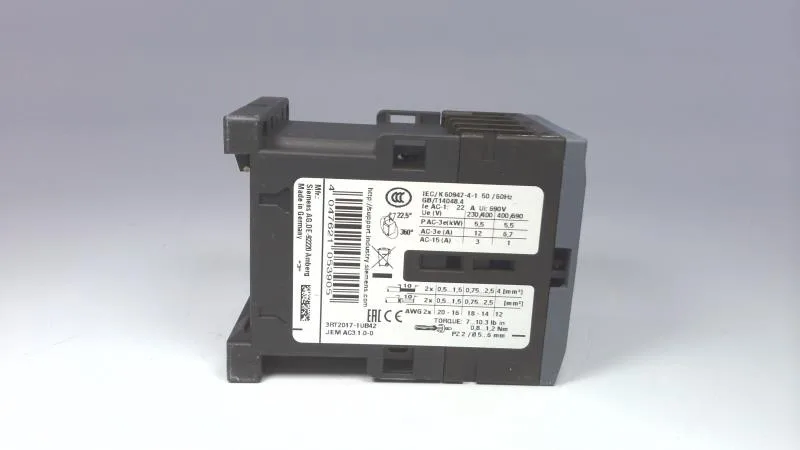

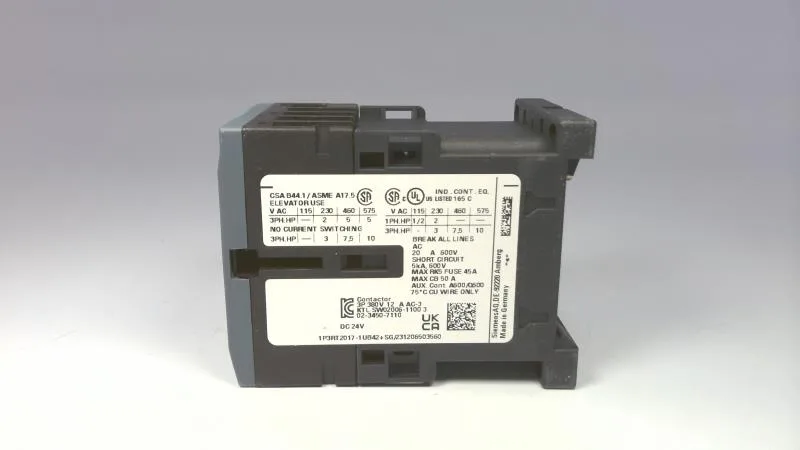

Siemens 3RT2017-1UB42 — Contactors

Siemens 3RT2017-1UB42 SIRIUS Contactor, 24 VDC Coil, S00

MPN3RT2017-1UB42
Active

Siemens SIRIUS 3RT2017-1UB42 coupling contactor, size S00, 24 VDC coil, screw-type terminals, 10 A at 24 VDC auxiliary contact rating, 45 x 58 x 73 mm.

$26.67Ref. price · indicative, final on quote
Siemens 3RT2017-1UB42 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT2017-1UB42 — Identification
ParameterValue
Contactor frame sizeS00
3RT2017-1UB42 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V8.5 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V2 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2017-1UB42 — Control & Coil
ParameterValue
Control supply voltage typeDC
3RT2017-1UB42 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2017-1UB42 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 50A (690V,100kA), aM: 20A (690V,100kA), BS88: 35A (415V,80kA)
Short-circuit coordination type 2, fusegG: 20A (690V,100kA), aM: 16A (690V, 100kA), BS88: 20A (415V, 80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2017-1UB42 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid0.5 ... 4 mm²
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2017-1UB42 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
3RT2017-1UB42 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2017-1UB42 — Mechanical
ParameterValue
Width45 mm
Height58 mm
Depth73 mm

Product details

The 3RT2017-1UB42: The 24 VDC coil (rated value 24 V) operates within a 0.8 to 1.1 × rated voltage range, meaning the coil pulls in reliably between 19.2 V and 26.4 V DC — a tolerance that covers most 24 VDC control supplies even under brownout conditions.

Switching frequency and contact ratings for motor duty

Mechanical endurance is 30,000,000 operations typical — this is the mechanical life before wear on the armature and spring mechanism, not the electrical contact life which depends on switching current and duty cycle.

Frequently asked questions

What is the auxiliary contact rating at 24 VDC for the 3RT2017-1UB42?

These are the specific DC switching limits — do not interpolate between them.
