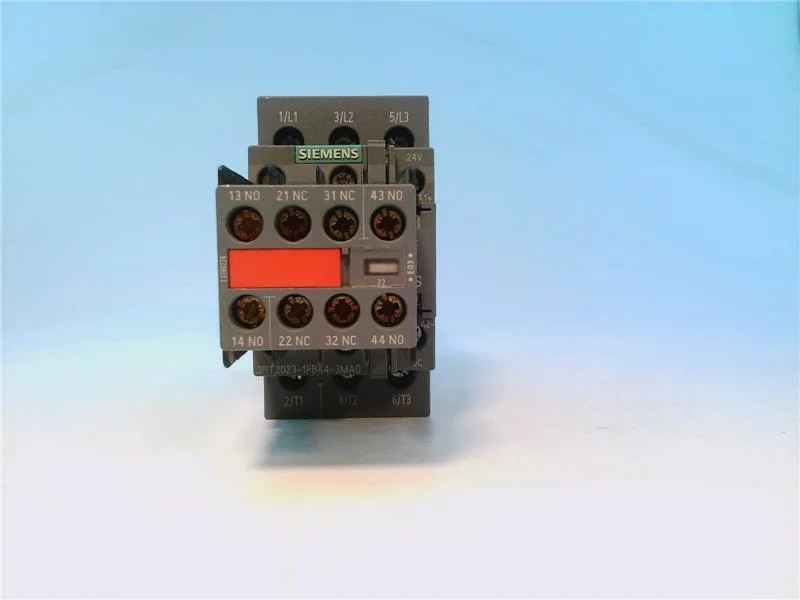

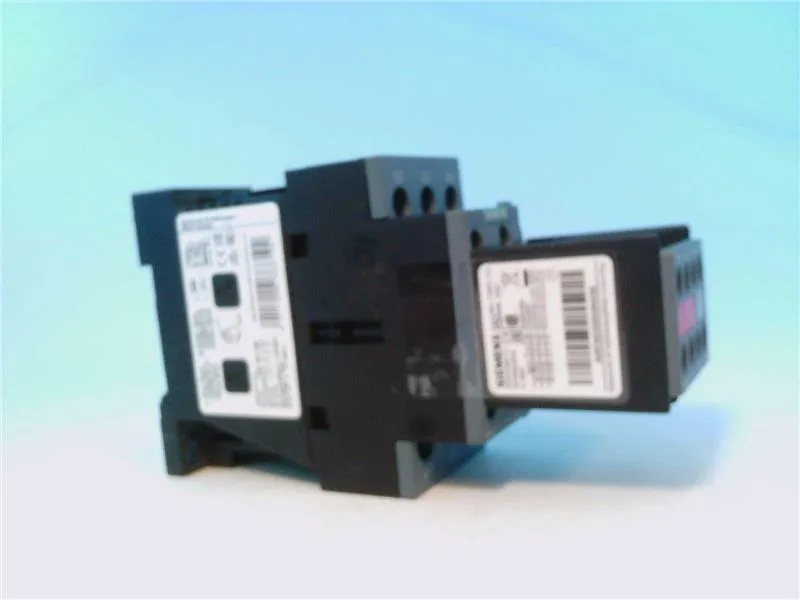

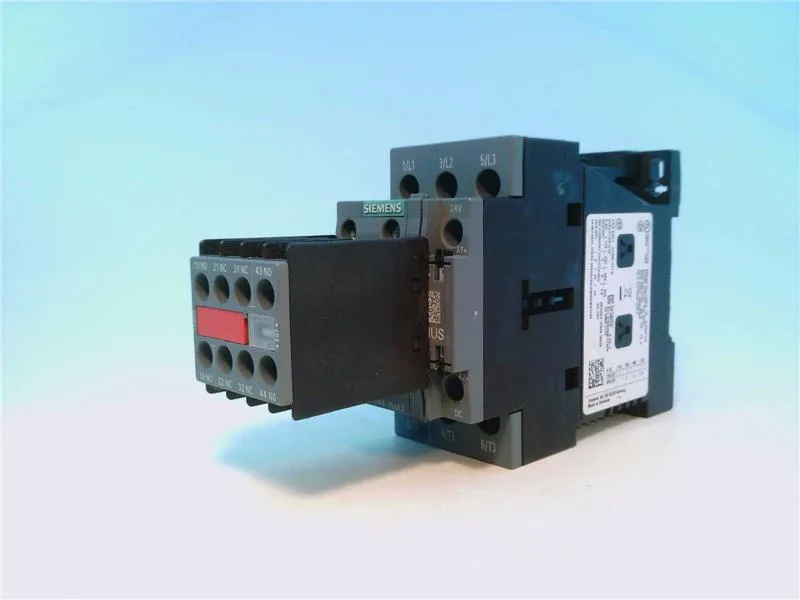

Siemens SIRIUS power contactor, 3RT2023-1FB44-3MA0, Size S0, 24 V DC coil, screw-type terminals, snap-on DIN rail mounting, active lifecycle.
| Parameter | Value |
|---|---|
| Contactor frame size | S0 |
| Parameter | Value |
|---|---|
| Rated operational current, AC-12, max. | 10 A |
| Rated operational current, AC-4 @ 400 V | 8.5 A |
| Rated value @ 400 V | 3 A |
| Rated value @ 500 V | 2 A |
| Rated value @ 690 V | 1 A |
| Rated value @ 230 V | 1 hp |
| Rated value @ 24 V | 6 A |
| Rated value @ 60 V | 2 A |
| Rated value @ 110 V | 1 A |
| Rated value @ 220 V | 0.3 A |
| Parameter | Value |
|---|---|
| Control supply voltage type | DC |
| Parameter | Value |
|---|---|
| Main poles | 3 |
| Main NO contacts | 3 |
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
| Parameter | Value |
|---|---|
| Short-circuit coordination type 1, fuse | gG: 63A (690V,100kA), aM: 32A (690V,100kA), BS88: 63A (415V,80kA) |
| Short-circuit coordination type 2, fuse | gG: 25A (690V,100kA), aM: 20A (690V,100kA), BS88: 25A (415V,80kA) |
| Aux. switch short-circuit protection, fuse | gG: 10 A (500 V, 1 kA) |
| Parameter | Value |
|---|---|
| Main circuit connection | screw-type terminals |
| Aux. / control circuit connection | screw-type terminals |
| Conductor cross-section, solid | 1 ... 10 mm² |
| Conductor cross-section, solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Side-by-side mounting | Yes |
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 10 000 000 |
| Durability with aux. switch block (cycles, typ.) | 10 000 000 |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Installation altitude, max. | 2 000 m |
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 85 mm |
| Depth | 151 mm |
The Siemens SIRIUS 3RT2023-1FB44-3MA0 is a Size S0 power contactor with a 24 V DC coil, screw-type terminals, and a rated operating current of 6 A at 24 V.
The contactor accepts solid or stranded wire from 1 to 10 mm², and for auxiliary wiring, 2x (0.5 to 1.5 mm²) or 2x (0.75 to 2.5 mm²). Switching frequency reaches 1,000 operating cycles per hour for AC-1, AC-2, AC-3, and AC-3e duty, dropping to 300 cycles/h for AC-4 (plugging/reversing).
This part is sourced and quoted to order against an RFQ through independent distribution channels. Availability and current pricing are confirmed at quote time — submit an RFQ for a binding commercial offer.
The depth is 151 mm, with a width of 45 mm and height of 85 mm, fitting the Size S0 frame footprint.
Solid or stranded wire from 1 to 10 mm² for main contacts, and 2x (0.5 to 1.5 mm²) or 2x (0.75 to 2.5 mm²) for auxiliary circuits.
The 3RT2023-1FB44-3MA0 is a Size S0 contactor with a 24 V DC coil and screw terminals; the 3RT2526-1BA40 is a different frame size and coil voltage. Panel fit depends on the existing mounting footprint and wiring — verify the DIN rail clearance (151 mm depth, 45 mm width) and terminal compatibility before substituting.
