Siemens 3RT2024-1AF00 — Contactors

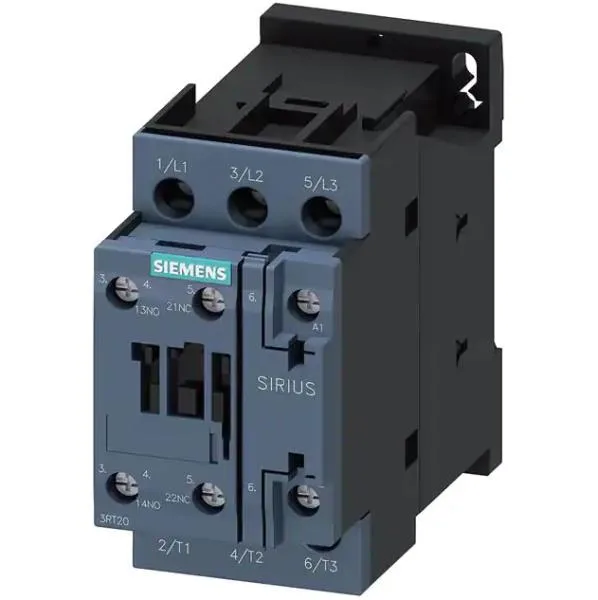

Siemens 3RT2024-1AF00 SIRIUS Power Contactor, S0, 110V AC Coil, 3 Pole

MPN3RT2024-1AF00
Active

Siemens SIRIUS 3RT2024-1AF00 power contactor, size S0, 3-pole, screw terminals, 110 V AC coil, 1 NO + 1 NC auxiliary contacts, AC-3 rated, 45 mm width, DIN rail mounting.

$22.86Ref. price · indicative, final on quote
Siemens 3RT2024-1AF00 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT2024-1AF00 — Identification
ParameterValue
Contactor frame sizeS0
3RT2024-1AF00 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V12.5 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V2 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2024-1AF00 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.25
Rated value @ 50 Hz110 V
3RT2024-1AF00 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2024-1AF00 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 63A (690V,100kA), aM: 32A (690V,100kA), BS88: 63A (415V,80kA)
Short-circuit coordination type 2, fusegG: 25A (690V,100kA), aM: 20A (690V,100kA), BS88: 25A (415V,80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2024-1AF00 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid1 ... 10 mm²
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2024-1AF00 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2024-1AF00 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2024-1AF00 — Mechanical
ParameterValue
Width45 mm
Height85 mm
Depth97 mm
3RT2024-1AF00 — Specifications
ParameterValue
At AC4 ... 16 ms

Product details

Product Introduction

Siemens SIRIUS power contactor 3RT2024-1AF00 is a 3-pole size S0 contactor with a 110 V AC coil and screw terminals. It includes a factory-fitted auxiliary contact block (1 NO + 1 NC) and is rated for AC-3 motor starting duty. Typical applications include control cabinet retrofits, motor control centers, and spare replacement for aging S0-size contactors in industrial panels.

Panel cutout planning: the contactor measures 97 mm depth, 45 mm width, and 85 mm height. It snaps onto a 35 mm DIN rail per EN 60715 and can be rotated ±180° on a vertical surface or tilted ±22.5° forward/backward. Minimum clearances: 10 mm upward, forward, and downward; 6 mm to the side. Derating may apply if these gaps are reduced.

The auxiliary contact terminals handle 2x (0.5 to 1.5 mm²) or 2x (0.75 to 2.5 mm²) solid or stranded. Screw-type connections; ferrules recommended for fine-stranded wire but not mandatory within the listed range.

Environmental Ratings

Suitable for indoor control cabinets without condensation.

Frequently asked questions

What are the exact mounting dimensions for the 3RT2024-1AF00?

Depth 97 mm, width 45 mm, height 85 mm. Clearances: 10 mm up, down, and forward; 6 mm to the side. Mounts on 35 mm DIN rail per EN 60715 with ±180° rotation on vertical surfaces.

What is the mechanical life at 1000 operations per hour for AC-3 duty?

Mechanical life is typically 10 million operations. At AC-3 the contactor is rated for up to 1000 switching cycles per hour.

What wire sizes can the terminals accept?

Main terminals: solid or stranded 1 to 10 mm². Auxiliary terminals: 2x (0.5 to 1.5 mm²) or 2x (0.75 to 2.5 mm²) solid/stranded. Screw-type terminals.

MPN
3RT2024-1AF00
