Siemens 3RT2024-1AK60 — Contactors

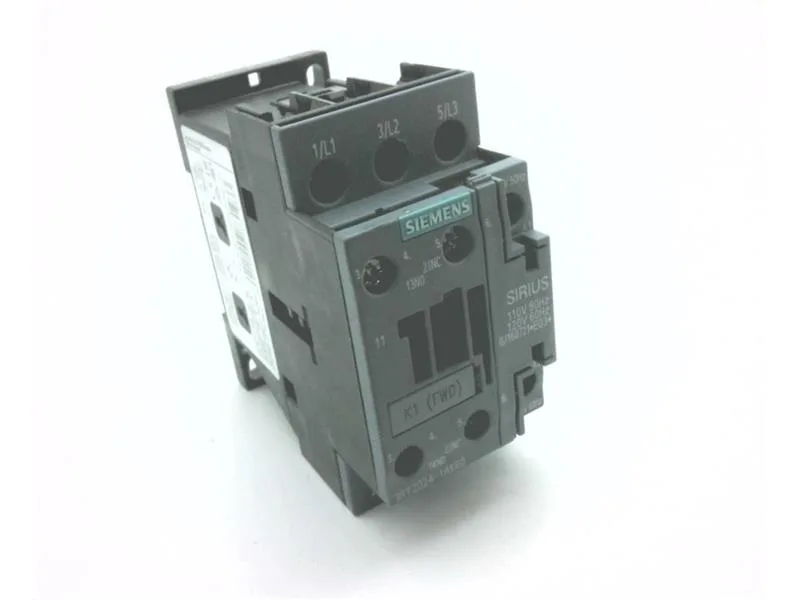

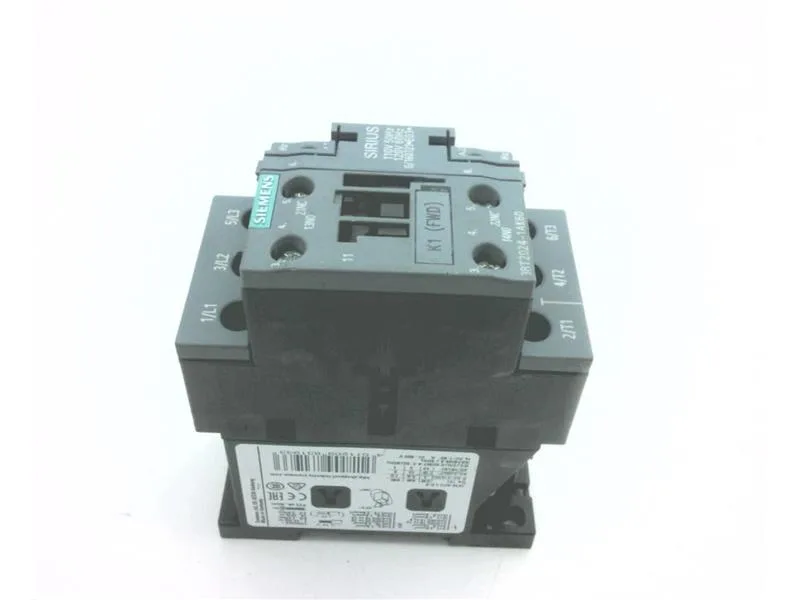

Siemens 3RT2024-1AK60 SIRIUS Power Contactor, S0 Frame, 24 V

MPN3RT2024-1AK60
Active

Siemens SIRIUS power contactor, S0 frame, 3RT2024-1AK60, 24 VDC screw-type coil, 45 mm width, 97 mm depth, solid wire 1–10 mm², auxiliary switch included.

$22.86Ref. price · indicative, final on quote
Siemens 3RT2024-1AK60 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT2024-1AK60 — Identification
ParameterValue
Contactor frame sizeS0
3RT2024-1AK60 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V12.5 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V2 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2024-1AK60 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.25
Rated value @ 50 Hz110 V
3RT2024-1AK60 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2024-1AK60 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 63A (690V,100kA), aM: 32A (690V,100kA), BS88: 63A (415V,80kA)
Short-circuit coordination type 2, fusegG: 25A (690V,100kA), aM: 20A (690V,100kA), BS88: 25A (415V,80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2024-1AK60 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid1 ... 10 mm²
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2024-1AK60 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2024-1AK60 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2024-1AK60 — Mechanical
ParameterValue
Width45 mm
Height85 mm
Depth97 mm
3RT2024-1AK60 — Specifications
ParameterValue
At AC4 ... 16 ms

Product details

Wiring & Connections

Auxiliary contacts accept 2x (0.5–1.5 mm²) or 2x (0.75–2.5 mm²). Coil connection uses screw-type terminals.

Ratings & Performance

Rated for 1,000 operating cycles per hour under AC-1, AC-2, AC-3, and AC-3e duty; 300 cycles per hour under AC-4. Mechanical life typical is 10,000,000 operations. Arcing time 10–10 ms. Coil operating range at 50 Hz is 0.25 A, at 60 Hz is 0.28 A. Auxiliary contact ratings: 10 A at 24 V, 2 A at 48 V, 2 A at 60 V, 1 A at 110 V, 0.9 A at 125 V, 0.3 A at 220 V, 3 A at 400 V, 0.6 A at 440 V.

Environmental

Operating temperature -25 to +60 °C; storage temperature -55 to +80 °C.

Frequently asked questions

Where can I buy 3RT2024-1AK60?

Sourced and quoted to order against an RFQ through independent distribution; availability and current pricing confirmed at quote time.

What is the depth of 3RT2024-1AK60?

The depth is 97 mm.

What wire sizes does 3RT2024-1AK60 accept?

Main contacts accept solid or stranded wire 1–10 mm²; auxiliary contacts accept 2x (0.5–1.5 mm²) or 2x (0.75–2.5 mm²).

Will 3RT2024-1AK60 drop into a panel specified for 3RT2016-1AG62?

Both are S0 frame contactors on 35 mm DIN rail, so the footprint and mounting are compatible. Verify coil voltage and auxiliary contact configuration against your panel wiring before swapping.
