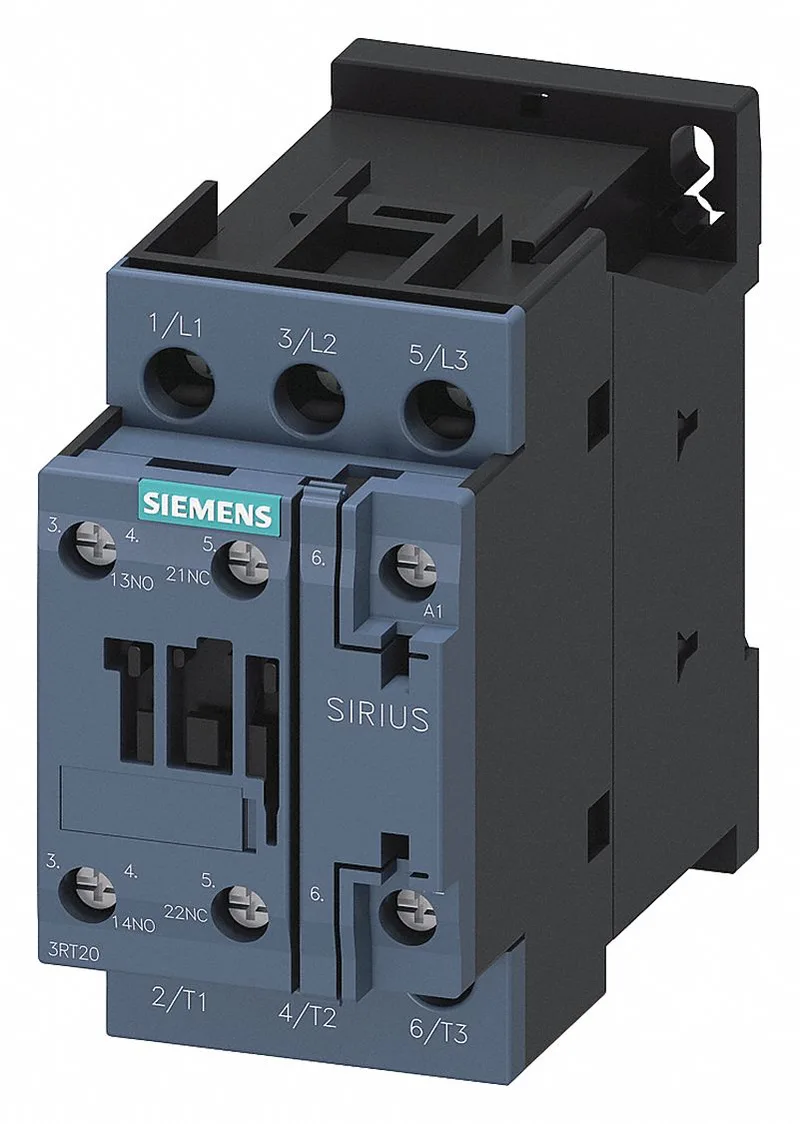

Siemens 3RT2024-1AV60 SIRIUS Power Contactor, Size S0, 45 mm

Name: 3RT2024-1AV60
Brand: Siemens
SKU: 3RT2024-1AV60
Availability: LimitedAvailability
Author: Spares Sergei

MPN3RT2024-1AV60

Active

Siemens SIRIUS 3RT2024-1AV60 power contactor, Size S0, 45 mm width, screw and snap-on DIN rail mount, screw-type coil terminals, auxiliary switch included.

$131.02Ref. price · indicative, final on quote

Add to RFQ

Siemens 3RT2024-1AV60 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT2024-1AV60 — Identification
Parameter	Value
Contactor frame size	S0

3RT2024-1AV60 — Ratings & Performance
Parameter	Value
Rated operational current, AC-12, max.	10 A
Rated operational current, AC-4 @ 400 V	12.5 A
Rated value @ 400 V	3 A
Rated value @ 500 V	2 A
Rated value @ 690 V	1 A
Rated value @ 230 V	2 hp
Rated value @ 24 V	10 A
Rated value @ 60 V	2 A
Rated value @ 110 V	1 A
Rated value @ 220 V	0.3 A

3RT2024-1AV60 — Control & Coil
Parameter	Value
Control supply voltage type	AC

3RT2024-1AV60 — Contacts & Poles
Parameter	Value
Main poles	3
Main NO contacts	3
Auxiliary contact reliability	1 faulty switching per 100 million (17 V, 1 mA)

3RT2024-1AV60 — Protection & Coordination
Parameter	Value
Short-circuit coordination type 1, fuse	gG: 63A (690V,100kA), aM: 32A (690V,100kA), BS88: 63A (415V,80kA)
Short-circuit coordination type 2, fuse	gG: 25A (690V,100kA), aM: 20A (690V,100kA), BS88: 25A (415V,80kA)
Aux. switch short-circuit protection, fuse	gG: 10 A (500 V, 1 kA)

3RT2024-1AV60 — Connection & Mounting
Parameter	Value
Main circuit connection	screw-type terminals
Aux. / control circuit connection	screw-type terminals
Conductor cross-section, solid	1 ... 10 mm²
Conductor cross-section, solid or stranded	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting method	screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
Side-by-side mounting	Yes

3RT2024-1AV60 — Durability
Parameter	Value
Durability (operating cycles, typ.)	10 000 000
Durability with aux. switch block (cycles, typ.)	10 000 000

3RT2024-1AV60 — Environmental
Parameter	Value
Operating temperature range	-25 ... +60 °C
Storage temperature range	-55 ... +80 °C
Installation altitude, max.	2 000 m

3RT2024-1AV60 — Mechanical
Parameter	Value
Width	45 mm
Height	85 mm
Depth	97 mm

3RT2024-1AV60 — Specifications
Parameter	Value
At AC	4 ... 16 ms

Product details

Wiring and terminal capacity

The 3RT2024-1AV60: The coil connection uses screw-type terminals — no push-in or spring-cage on the magnet coil, so factor in screwdriver access during panel wiring.

Auxiliary contact ratings across voltages

At 230 V the auxiliary contact is rated 2 hp, useful for direct motor control in smaller load circuits.

Switching frequency and duty cycle

Maximum switching rate is 1 000 operations per hour for AC-1, AC-2, AC-3, and AC-3e duty; for AC-4 (plugging/reversing) it drops to 300 operations per hour — plan the cycle count accordingly if the application involves frequent inching or reversing. Arcing time is 10 ms typical, and the make/break time at AC is 4 to 16 ms — these are fast enough for most motor start sequences but should be checked against the PLC scan cycle if the contactor feeds a safety circuit.

Frequently asked questions

What is the closest pin-compatible alternative to 3RT2024-1AV60?

The 3RT2024-1AV60 is a current-production Size S0 contactor; any alternative would be a different frame size or coil voltage variant within the SIRIUS family, not a direct pin-compatible substitute.
