Siemens 3RT2025-1AF00 — Contactors

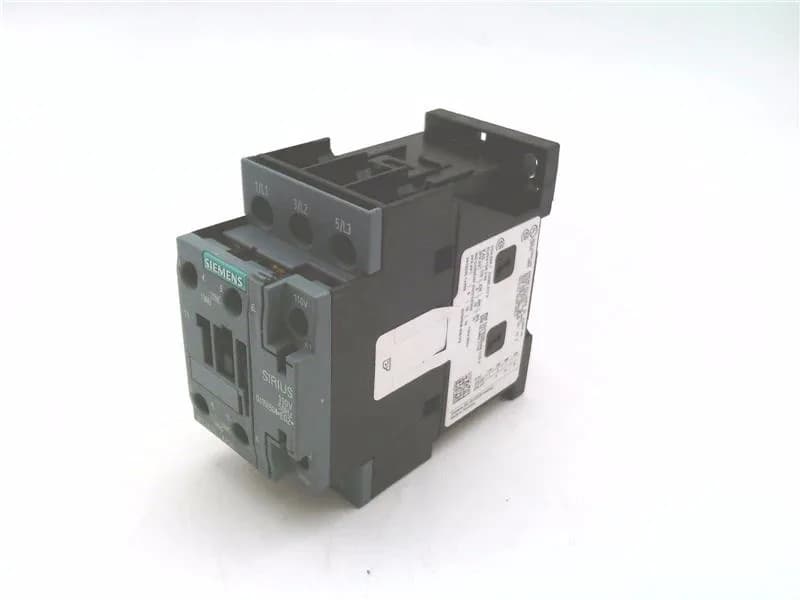

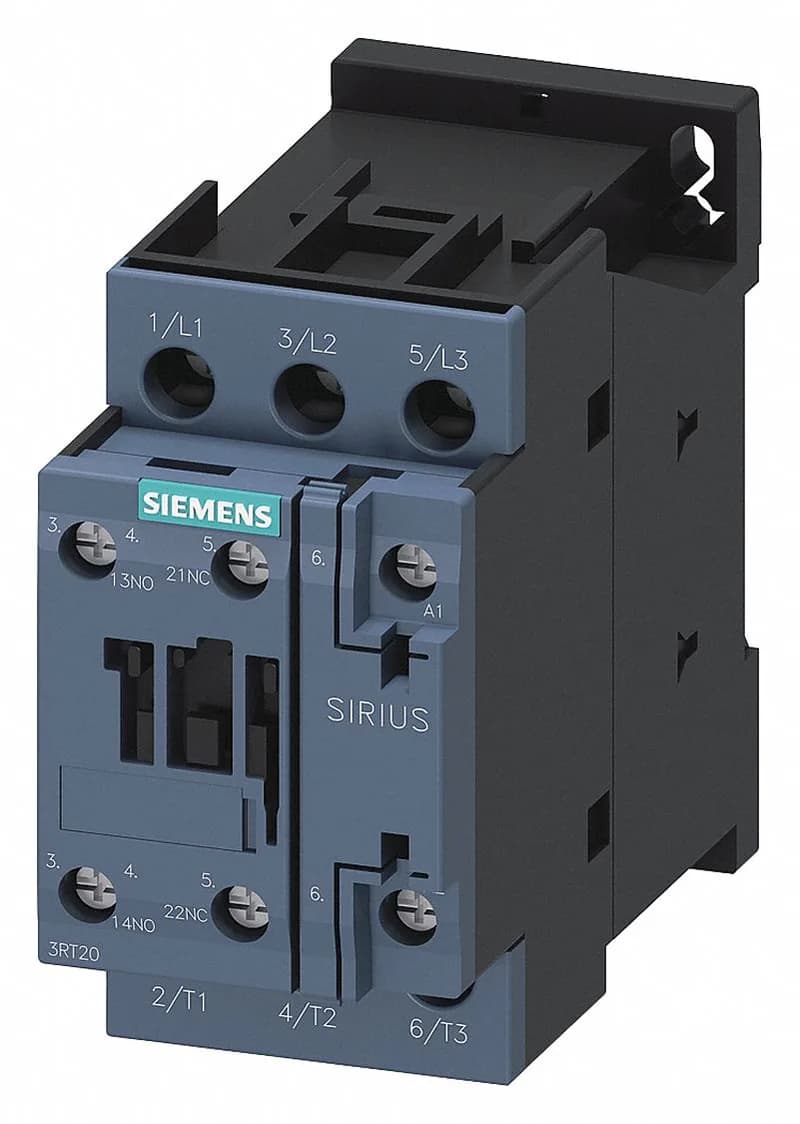

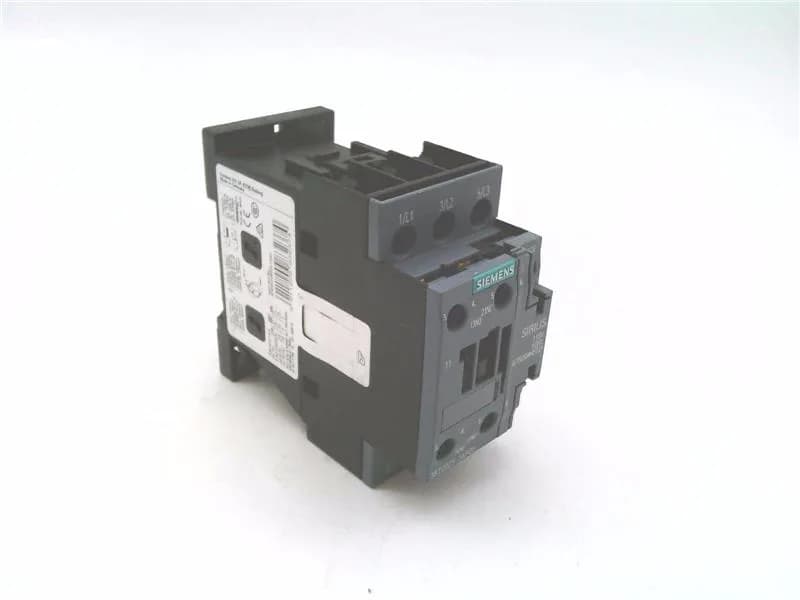

Siemens 3RT2025-1AF00 SIRIUS Power Contactor, Size S0, 24 VD

MPN3RT2025-1AF00
Active

Siemens SIRIUS power contactor, 3RT2025-1AF00, Size S0, 24 VDC coil, screw-type terminals, snap-on DIN rail mounting, 10 A at 24 V rated value, 14 A at 480 V rated value.

$29.21Ref. price · indicative, final on quote
Siemens 3RT2025-1AF00 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT2025-1AF00 — Identification
ParameterValue
Contactor frame sizeS0
3RT2025-1AF00 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V15.5 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V3 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2025-1AF00 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.25
Rated value @ 50 Hz110 V
3RT2025-1AF00 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2025-1AF00 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 63A (690V,100kA), aM: 32A (690V,100kA), BS88: 63A (415V,80kA)
Short-circuit coordination type 2, fusegG: 25A (690V,100kA), aM: 20A (690V,100kA), BS88: 25A (415V,80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2025-1AF00 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid1 ... 10 mm²
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2025-1AF00 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2025-1AF00 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2025-1AF00 — Mechanical
ParameterValue
Width45 mm
Height85 mm
Depth97 mm
3RT2025-1AF00 — Specifications
ParameterValue
At AC4 ... 16 ms

Product details

SIRIUS 3RT2025-1AF00 — Power Contactor, Size S0, 24 VDC Coil

The coil is 24 VDC with screw-type terminals, rated for 10 A at 24 V rated value and 14 A at 480 V rated value. Switching frequency varies by duty class: up to 1 000 operations per hour at AC-1, AC-2, AC-3, and AC-3e maximum, and 300 operations per hour at AC-4 maximum. This means the contactor handles high-cycle motor starting (AC-3) at full rated current without derating, while the lower AC-4 rate accounts for the heavier wear of inching and plugging duty.

Main contact terminals accept solid or stranded wire from 1 to 10 mm²; auxiliary contact terminals accept 2x (0.5 to 1.5 mm²) or 2x (0.75 to 2.5 mm²). Wire preparation is straightforward with screw terminals — no special ferruling required for stranded up to 10 mm². Dimensions: Width 45 mm, Height 85 mm, Depth 97 mm.

Frequently asked questions

What is the closest functional second-source for 3RT2025-1AF00?

The 3RT2036-1AC20-ZX95 is a peer SIRIUS contactor but with a 24 VAC coil and a different auxiliary configuration. It will not drop into the same panel without rewiring because the coil voltage and terminal assignments differ. For a direct drop-in replacement, stick with the 24 VDC coil variant like 3RT2526-1AF00 or 3RT2526-1AD00 — but confirm auxiliary contact count matches your circuit.

Where can I buy 3RT2025-1AF00 and get current pricing?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead time.

What is the depth of 3RT2025-1AF00?

The depth is 97 mm. Combined with a width of 45 mm and height of 85 mm, it fits in a standard S0 DIN-rail footprint.

What wire sizes does 3RT2025-1AF00 accept?

Main contacts accept solid or stranded wire from 1 to 10 mm². Auxiliary contacts accept 2x (0.5 to 1.5 mm²) or 2x (0.75 to 2.5 mm²). All terminals are screw-type.
