Siemens 3RT2025-1AP60 — Contactors

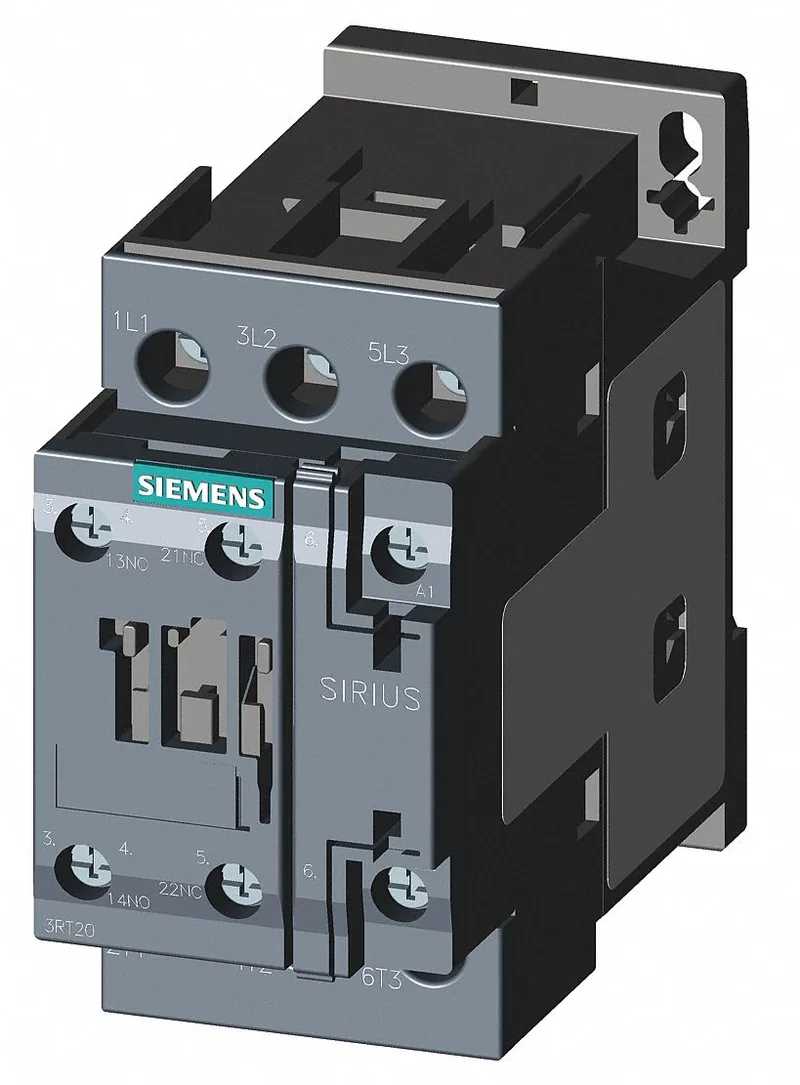

Siemens 3RT2025-1AP60 SIRIUS S0 Contactor, 45mm wide

MPN3RT2025-1AP60
Active

Siemens SIRIUS 3RT2025-1AP60 power contactor, size S0, screw-type terminals, auxiliary switch, 45 mm width, active production.

$29.21Ref. price · indicative, final on quote
Siemens 3RT2025-1AP60 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT2025-1AP60 — Identification
ParameterValue
Contactor frame sizeS0
3RT2025-1AP60 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V15.5 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V3 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2025-1AP60 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.25
Rated value @ 50 Hz220 V
3RT2025-1AP60 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2025-1AP60 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 63A (690V,100kA), aM: 32A (690V,100kA), BS88: 63A (415V,80kA)
Short-circuit coordination type 2, fusegG: 25A (690V,100kA), aM: 20A (690V,100kA), BS88: 25A (415V,80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2025-1AP60 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid1 ... 10 mm²
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2025-1AP60 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2025-1AP60 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2025-1AP60 — Mechanical
ParameterValue
Width45 mm
Height85 mm
Depth97 mm
3RT2025-1AP60 — Specifications
ParameterValue
At AC4 ... 16 ms

Product details

SIRIUS S0 Contactor – Panel Fit and Mounting

The Siemens 3RT2025-1AP60 is a SIRIUS S0 power contactor with screw-type terminals. It measures 45 mm wide by 85 mm high by 97 mm deep, and mounts on 35 mm DIN rail per DIN EN 60715 with screw or snap-on fitting. The contactor accepts solid or stranded wire from 1... 10 mm² on the main circuit, and the mounting position allows ±180° rotation on vertical surfaces plus ±22.5° tilt.

Mechanical Life and Operating Conditions

Rated for 10 000 000 typical mechanical operations in the temperature range -25... +60 °C (storage -55... +80 °C). Switching cycles: 1 000 per hour under AC-1, AC-2, AC-3, AC-3e, and 300 per hour under AC-4.

Frequently asked questions

What are the physical dimensions of the 3RT2025-1AP60?

The contactor measures 45 mm wide, 85 mm high, and 97 mm deep.

What wire sizes does the 3RT2025-1AP60 accept?

It accepts solid or stranded wire from 1... 10 mm² on the main contacts.
