Siemens 3RT2026-2AP00 — Contactors

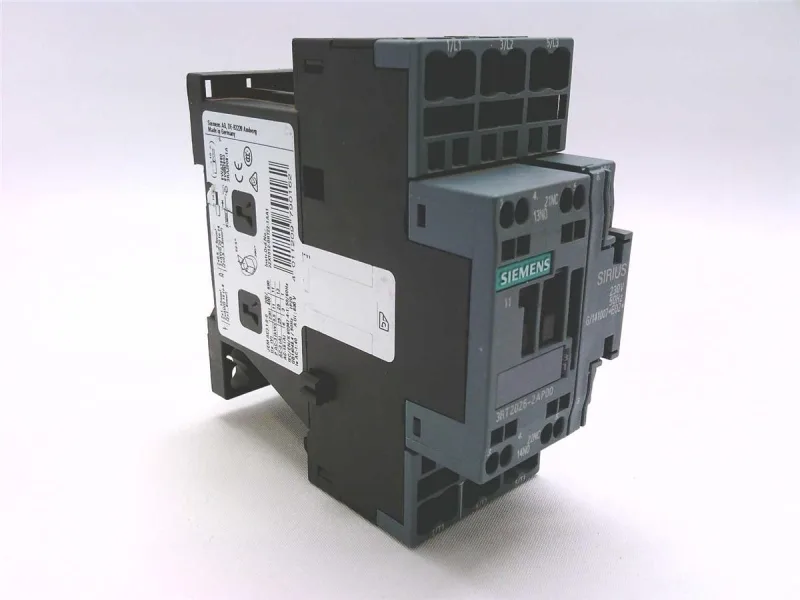

Siemens 3RT2026-2AP00 SIRIUS Power Contactor, S0, 45 mm

MPN3RT2026-2AP00
Active

Siemens SIRIUS power contactor, order code 3RT2026-2AP00, size S0, 45 mm width, spring-type terminals, screw and snap-on mounting on 35 mm DIN rail.

$38.10Ref. price · indicative, final on quote
Siemens 3RT2026-2AP00 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT2026-2AP00 — Identification
ParameterValue
Contactor frame sizeS0
3RT2026-2AP00 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V15.5 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V3 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2026-2AP00 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.25
Rated value @ 50 Hz230 V
3RT2026-2AP00 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2026-2AP00 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 100 A (690 V, 100 kA), aM: 50 A (690 V, 100 kA), BS88: 100 A (415 V, 80 kA)
Short-circuit coordination type 2, fusegG: 35A (690V, 100kA), aM: 20A (690V, 100kA), BS88: 35A (415V, 80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2026-2AP00 — Connection & Mounting
ParameterValue
Main circuit connectionspring-loaded terminals
Aux. / control circuit connectionspring-loaded terminals
Conductor cross-section, solid1 ... 10 mm²
Conductor cross-section, solid or stranded2x (0.5 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2026-2AP00 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2026-2AP00 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2026-2AP00 — Mechanical
ParameterValue
Width45 mm
Height102 mm
Depth97 mm
3RT2026-2AP00 — Specifications
ParameterValue
At AC4 ... 16 ms

Product details

It's a 3-pole contactor with spring-type terminals on the coil and an integrated auxiliary switch block (1 NO + 1 NC, 18-8 configuration). Rated for AC-3 motor switching at up to 750 operating cycles per hour (AC-3e also 750 1/h). That's a solid pace for conveyor or pump cycling — not continuous high-speed jogging, but fine for normal start/stop sequences. AC-4 gets 250 1/h for reversing or inching duty; AC-1 resistive loads can run at 1 000 1/h. Coil draws 0.25 A at 50 Hz — a standard 24 VAC control transformer can drive several of these. Wire range accepts 1-10 mm² solid or stranded; auxiliary terminals take 2x 0.5-2.5 mm².

That S0 footprint is the standard for this current class — it fits the same panel cutout as other S0 contactors from the SIRIUS family.

Auxiliary contact ratings cover DC switching: 10 A at 24 V, 2 A at 48 V, 2 A at 60 V, 1 A at 110 V, 0.9 A at 125 V, 0.3 A at 220 V, and 3 A at 400 V. Also rated 21 A at 480 V — that's useful for pilot-duty loads on 480 V control circuits. AC auxiliary switching times: 4-16 ms operate/release. Arcing time is 10 ms flat.

Frequently asked questions

How do I get current pricing and availability for 3RT2026-2AP00?

3RT2026-2AP00 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm position.

What is 3RT2026-2AP00's listed depth (97 mm) on this component line?

The depth is 97 mm. Combined with a width of 45 mm and height of 102 mm, this is the standard S0 frame size for the SIRIUS contactor family.

What is 3RT2026-2AP00's listed solid (1... 10 mm²) on this component line?

The main contact terminals accept solid wire from 1 to 10 mm², and stranded wire also 1 to 10 mm². Auxiliary contact terminals take 2x 0.5 to 2.5 mm² solid or stranded.

Will 3RT2026-2AP00 drop into a panel that was specified around 3RT2015-2AP02 without rewiring?

Both are S0 frame size on the same 35 mm DIN rail footprint, so the mechanical drop-in and rail spacing are identical. The 3RT2026-2AP00 carries a higher current rating and includes an integrated auxiliary switch block (1 NO + 1 NC) that the 3RT2015-2AP02 may lack depending on its variant — verify the auxiliary contact count against your control schematic before swapping.

What compliance documentation does this brand provide for 3RT2026-2AP00 (RoHS, REACH, UL, IEC)?

As a Siemens SIRIUS product, the 3RT2026-2AP00 is designed to meet IEC/EN 60947-4-1 standards for contactors. For specific RoHS, REACH, and UL documentation, request the manufacturer's declaration with your RFQ — compliance certificates are typically provided on request for current-production parts.
