It is rated for AC-3 motor switching at up to 750 operating cycles per hour, and the coil draws 6 A at 24 VDC under DC-13 duty — a figure that governs the sizing of the control transformer or DC supply feeding it.

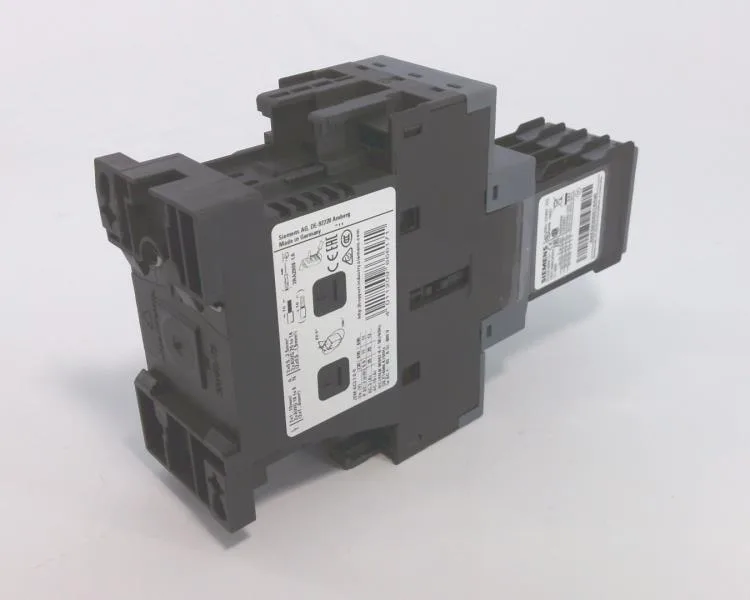

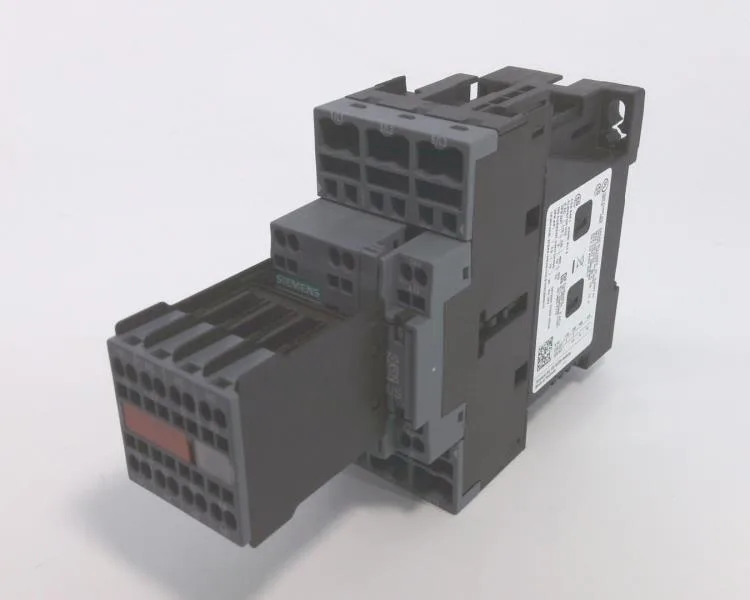

The S0 footprint measures 45 mm wide, 102 mm tall, and 154 mm deep — the depth dimension is the one to watch when the panel backplate is tight against an enclosure wall or a second row of components.
Clearance and wiring
The main circuit accepts solid or stranded conductors from 1 to 10 mm²; the coil terminals accept 2x (0.5 to 2.5 mm²) solid or stranded. Spring-type terminals mean no screw torque to verify, but the wire strip length and ferrule selection (if using ferruled stranded) need to match the spring cage spec — per the datasheet, solid or ferruled stranded within the listed cross-section range.
Switching frequency and duty class
Maximum switching frequency depends on the duty class: 1 000 cycles/hour for AC-1 resistive loads, 750 cycles/hour for AC-2 and AC-3 motor loads, 750 cycles/hour for AC-3e, and 250 cycles/hour for AC-4 (plugging/reversing). The arcing time per the datasheet is 10 to 10 ms — a narrow window that suggests consistent arc extinction across the rated range. Mechanical life is listed at 10 000 000 operating cycles typical.
