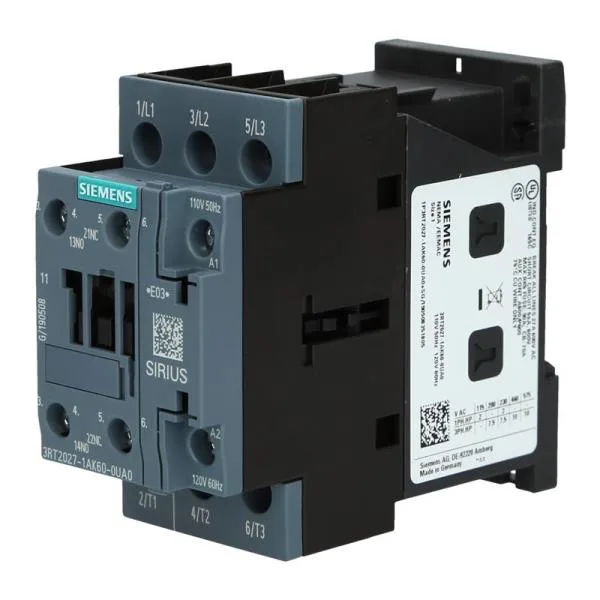

Siemens 3RT2027-1AK60-0UA0 SIRIUS S0 Contactor

MPN3RT2027-1AK60-0UA0

Active

Siemens SIRIUS 3RT2027-1AK60-0UA0 S0 power contactor, 5 hp at 230 V, screw-type coil terminals, 3-pole, 45 mm wide, DIN rail snap-on.

$55.88Ref. price · indicative, final on quote

Add to RFQ

Siemens 3RT2027-1AK60-0UA0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT2027-1AK60-0UA0 — Identification
Parameter	Value
Contactor frame size	S0

3RT2027-1AK60-0UA0 — Ratings & Performance
Parameter	Value
Rated operational current, AC-12, max.	10 A
Rated operational current, AC-4 @ 400 V	22 A
Rated value @ 400 V	3 A
Rated value @ 500 V	2 A
Rated value @ 690 V	1 A
Rated value @ 230 V	5 hp
Rated value @ 24 V	10 A
Rated value @ 60 V	2 A
Rated value @ 110 V	1 A
Rated value @ 220 V	0.3 A

3RT2027-1AK60-0UA0 — Control & Coil
Parameter	Value
Control supply voltage type	AC
Rated value @ 50 Hz	0.25
Rated value @ 50 Hz	110 V

3RT2027-1AK60-0UA0 — Contacts & Poles
Parameter	Value
Main poles	3
Main NO contacts	3
Auxiliary contact reliability	1 faulty switching per 100 million (17 V, 1 mA)

3RT2027-1AK60-0UA0 — Protection & Coordination
Parameter	Value
Short-circuit coordination type 1, fuse	gG: 125A (690V,100kA), aM: 50A (690V,100kA), BS88: 125A (415V,80kA)
Short-circuit coordination type 2, fuse	gG: 50A (690V,100kA), aM: 25A (690V, 100kA), BS88: 50A (415V, 80kA)
Aux. switch short-circuit protection, fuse	gG: 10 A (500 V, 1 kA)

3RT2027-1AK60-0UA0 — Connection & Mounting
Parameter	Value
Main circuit connection	screw-type terminals
Aux. / control circuit connection	screw-type terminals
Conductor cross-section, solid	1 ... 10 mm²
Conductor cross-section, solid or stranded	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting method	screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mounting	Yes

3RT2027-1AK60-0UA0 — Durability
Parameter	Value
Durability (operating cycles, typ.)	10 000 000
Durability with aux. switch block (cycles, typ.)	10 000 000

3RT2027-1AK60-0UA0 — Environmental
Parameter	Value
Operating temperature range	-25 ... +60 °C
Storage temperature range	-55 ... +80 °C
Installation altitude, max.	2 000 m

3RT2027-1AK60-0UA0 — Mechanical
Parameter	Value
Width	45 mm
Height	85 mm
Depth	97 mm

3RT2027-1AK60-0UA0 — Specifications
Parameter	Value
At AC	4 ... 16 ms

Product details

Coil and auxiliary contact ratings

The 3RT2027-1AK60-0UA0: The magnet coil uses screw-type terminals, and the contactor carries an auxiliary switch block.

Switching frequency and thermal limits

Maximum switching rate depends on duty class: 1,000 operations/hour in AC-1, 750/h in AC-2 and AC-3, and 250/h in AC-4. The AC-3e rating also caps at 750/h.
