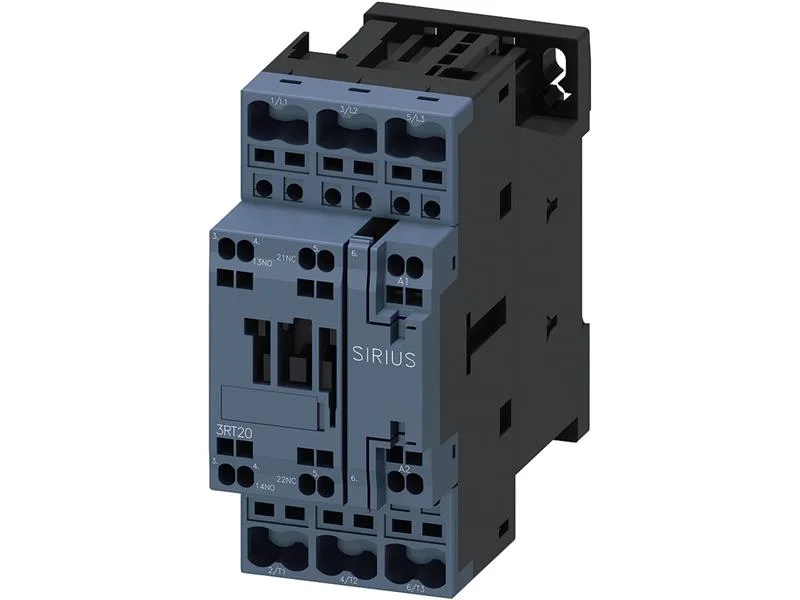

At 45 mm wide and 102 mm tall, it fits the standard DIN-rail footprint (screw and snap-on mounting per DIN EN 60715). The spring-type terminals on the magnet coil and main contacts accept solid or stranded wire from 1 to 10 mm², or two conductors of 0.5 to 2.5 mm² — a time-saver for panel builders who want to skip torque checks on screw clamps. The switching frequency tells you what duty cycle this contactor can sustain: 1,000 operations per hour at AC-1 (resistive loads), 750/h at AC-2 and AC-3 (slip-ring and squirrel-cage motors), and 250/h at AC-4 (plugging and inching). If your application needs frequent jogging or reversing, the AC-4 limit is the one to watch — exceeding it shortens contact life. The mounting position is flexible — ±180° rotation on a vertical surface and ±22.5° tilt — so it adapts to tight enclosures without derating, as long as the clearance distances are respected: 10 mm upwards, forwards, and downwards, and 6 mm at the sides.
Arcing time is 10 ms, which is typical for this size class and keeps arc-flash energy contained within the contactor housing.
