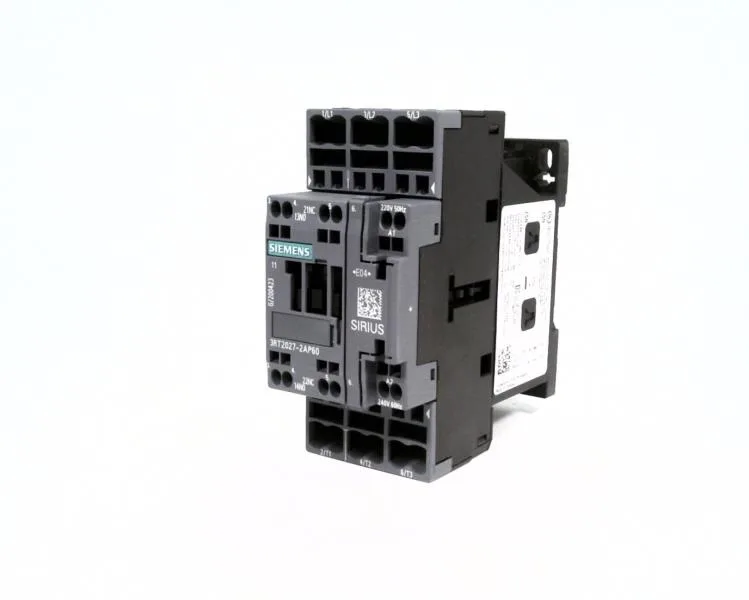

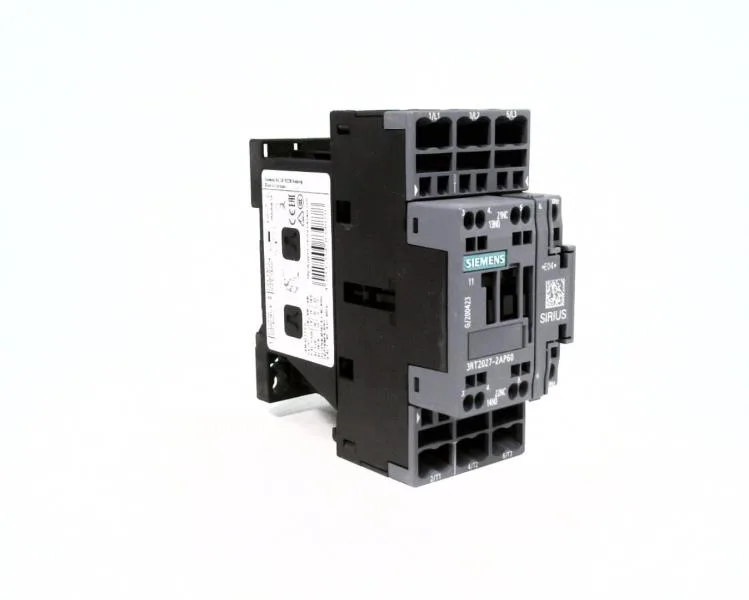

This is a power contactor — it switches motor loads, resistive heaters, and transformer primaries under AC duty. The S0 frame is the mid-range footprint in the SIRIUS family; it handles the bulk of general-purpose motor switching up to around 15-18 kW at 400 V AC-3, though the exact current rating depends on the specific coil voltage and utilization category you're working to.
Mounting and wiring — what the ratings actually mean
For the main contacts, the terminal accepts 2x (0.5 to 2.5 mm²) solid or stranded — so you can double up smaller control wires on the same clamp. That 6 mm side gap is tighter than some older contactor families — check your enclosure layout if you're packing multiple contactors side-by-side. The arcing time is 10 ms, so the arc chute clears fast; the switching frequency at AC-3 is 750 operations per hour maximum, which covers most conveyor and pump cycling but not high-speed pick-and-place.
