Siemens 3RT2028-1AN20 — Contactors

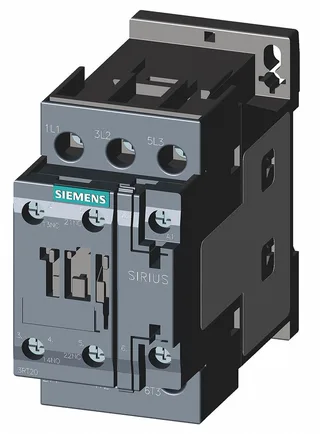

Siemens 3RT2028-1AN20 SIRIUS Contactor, S0, 45 mm

MPN3RT2028-1AN20
Active

Siemens SIRIUS power contactor 3RT2028-1AN20, Size S0, 45 mm wide, screw-type coil terminals, auxiliary switch, up to 1,000 ops/h at AC-1.

$60.96Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT2028-1AN20 — Identification
ParameterValue
Contactor frame sizeS0
3RT2028-1AN20 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V22 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V5 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT2028-1AN20 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.25
Rated value @ 50 Hz220 V
3RT2028-1AN20 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT2028-1AN20 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 125A (690V,100kA), aM: 50A (690V,100kA), BS88: 125A (415V,80kA)
Short-circuit coordination type 2, fusegG: 50A (690V,100kA), aM: 25A (690V, 100kA), BS88: 50A (415V, 80kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT2028-1AN20 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid1 ... 10 mm²
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mountingYes
3RT2028-1AN20 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT2028-1AN20 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT2028-1AN20 — Mechanical
ParameterValue
Width45 mm
Height85 mm
Depth97 mm
3RT2028-1AN20 — Specifications
ParameterValue
At AC4 ... 16 ms

Product details

Industrial gear runs forever, and this one's still rolling off the line, so you're getting the same guts that have pulled decades in thousands of panels. It switches motor loads at AC-3 duty up to 750 cycles per hour, and can handle AC-4 jogging at 250 cycles per hour. For straight resistive loads (AC-1) it does 1 000 ops/h.

Mounting and mechanical fit

Physical envelope: 85 mm high x 45 mm wide x 97 mm deep. When ganging contactors side by side, maintain 6 mm clearance on the sides. For vertical spacing above/below, 10 mm each way. That's enough for airflow and wiring access with the screw terminals. Main contact wiring accepts 1 x 1 … 10 mm² solid or stranded (fine strand same range). Auxiliary terminals take 2 x (0.5 … 1.5 mm²) or 2 x (0.75 … 2.5 mm²) – typical for control wiring.

Frequently asked questions

What is the depth of this contactor?

97 mm front-to-back. That's the overall envelope including the terminals and auxiliary block.

What wire sizes will the main contacts accept?

Solid or stranded copper: 1 … 10 mm² for the power circuit. Auxiliary terminals split into two ranges: 2 x (0.5 … 1.5 mm²) or 2 x (0.75 … 2.5 mm²).
