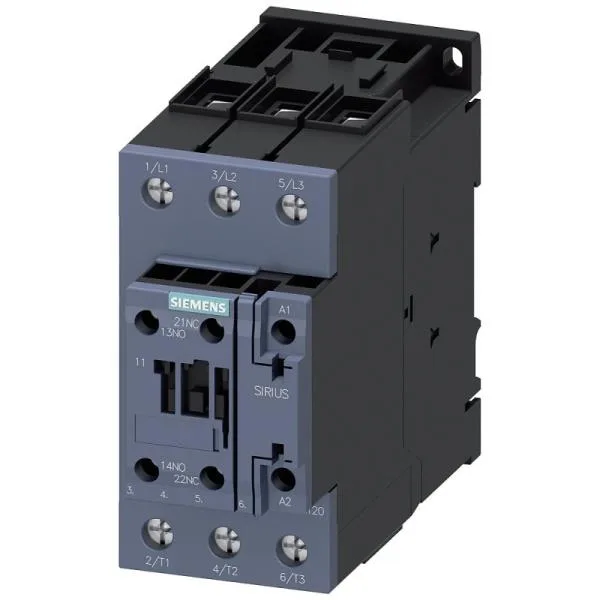

Siemens SIRIUS 3RT2035-1NB30 power contactor, size S2, 20-33 V coil, 55 mm wide, 130 mm deep, screw and snap-on DIN rail mount.
| Parameter | Value |
|---|---|
| Contactor frame size | S2 |
| Parameter | Value |
|---|---|
| Rated operational current, AC-12, max. | 10 A |
| Rated operational current, AC-4 @ 400 V | 35 A |
| Rated value @ 400 V | 3 A |
| Rated value @ 500 V | 2 A |
| Rated value @ 690 V | 1 A |
| Rated value @ 230 V | 7.5 hp |
| Rated value @ 24 V | 10 A |
| Rated value @ 60 V | 2 A |
| Rated value @ 110 V | 1 A |
| Rated value @ 220 V | 0.3 A |
| Parameter | Value |
|---|---|
| Control supply voltage type | AC/DC |
| Rated value @ 50 Hz | 2 VA |
| Rated value @ 50 Hz | 20 ... 33 V |
| Parameter | Value |
|---|---|
| Main poles | 3 |
| Main NO contacts | 3 |
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
| Parameter | Value |
|---|---|
| Short-circuit coordination type 1, fuse | gG: 160 A (690 V, 100 kA), aM: 80 A (690 V, 100 kA), BS88: 125 A (415 V, 80 kA) |
| Short-circuit coordination type 2, fuse | gG: 80A (690V,100kA), aM: 50A (690V,100kA), BS88: 63A (415V,80kA) |
| Aux. switch short-circuit protection, fuse | gG: 10 A (500 V, 1 kA) |
| Parameter | Value |
|---|---|
| Main circuit connection | screw-type terminals |
| Aux. / control circuit connection | screw-type terminals |
| Conductor cross-section, solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Side-by-side mounting | Yes |
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 10 000 000 |
| Durability with aux. switch block (cycles, typ.) | 10 000 000 |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Installation altitude, max. | 2 000 m |
| Parameter | Value |
|---|---|
| Width | 55 mm |
| Height | 114 mm |
| Depth | 130 mm |
| Parameter | Value |
|---|---|
| At AC | 30 ... 55 ms |
The 3RT2035-1NB30: Mechanical life is 10 million operations typical, with rated AC-3 duty at 1 000 cycles per hour — a solid baseline for motor-switching applications up to that frequency. Mounting is screw or snap-on onto 35 mm DIN rail per EN 60715. Clearance requirements: 10 mm upward and downward, 10 mm forward, 6 mm sideways. Operating temperature range is -25 to +60 °C; storage to +80 °C. That covers most ventilated industrial enclosures.
The width is 55 mm and the depth is 130 mm. Height is 114 mm.
